S-TV-1224 Flexo Printer Slotter Die-cutter

US$ 1 - 2 MOQ: 1 Set

Key Specifications

Condition:

New

Automatic Grade:

Automatic

Usage:

Other Forming Machine

Amc (Shanghai) Industrial Development Company Limited

Payment & Shipping

Payment Methods:

Port of Shipment:

China Port

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Automatic Grade Automatic

Usage Other Forming Machine

Place of Origin China

Brand Name AMC

Model Number S-TV

Warranty 12 monthes

After-sales Service Provided Engineers available to service machinery overseas

S-TV-1224 Flexo Printer Slotter Die-cutter

Specification:

Feeding Unit

FEEDING UNIT	Configuration	Remarks
	Feeding system	Lead edge Feeding system
	Zero position	Automatic
	Total counter	Touch screen display
	Machine speed	Touch screen display
	Side guide position	Motorized, Touch screen display
	Front stop position	Manual
	Back stop position	Motorized, by jog switch
	Feed roll nip control	Manual adjustment
	Unit open/close	Motorized, by jog switch
	Upper suction blower
	Lower suction blower
	Main motor	Inverter control

Printing Unit

PRINTING UNIT	Configuration	Remarks
	Top printing system,Roll Transfer system
	Roll to roll inking system, Metal anilox roller
	Zero position	Automatic
	Print cylinder register	Motorized, Digital display
	Print cylinder side control	Motorized, Digital display
	Impress roll nip control	Manual adjustment
	Pull roll nip control	Manual adjustment
	Anilox roller clearance	Manual adjustment
	Doctor roller clearance	Manual adjustment
	Doctor roller motor	Geared type

Slotting Unit

SLOTTING UNIT	Configuration	Remarks
	Single slot system
	Zero position	Automatic
	Panel size	Motorized, Touch screen display
	Slot depth size	Motorized, Touch screen display
	Box height size	Motorized, Touch screen display
	Cleaser nip control	Manual adjustment
	Slotter nip control	Manual adjustment
	Scrap conveyor

Die cutting Unit

DIE-CUTTER UNIT	Configuration	Remarks
	Zero position	Automatic
	Die roll register	Motorized ,Touch screen display
	Die roll side control	Motorized, Touch screen display
	Anvil roll transversal movement	Automatic 40mm
	Anvil roll clearance	Motorized adjustment
	Pull roll nip control	Manual adjustment
	Speed compensation device	U.S.A DICAR system
	Scrap conveyor	Side delivery belt conveyor

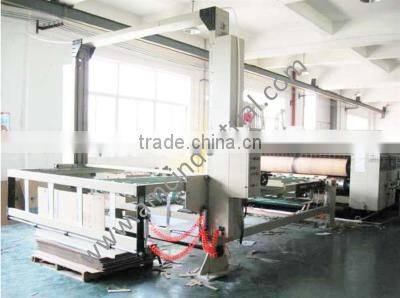

Auto stacker

AUTO STACKER	Configuration	Remarks
	Front belt up/down	Pneumatic up/down
	Conveyor belt
	Elevator control	Automatic up/down, Chain driving
	Loading height of box	1600mm
