QAF Small Corrugated Box Automatic Folder Gluer Quality Choice

QAF Small Corrugated Box Automatic Folder Gluer Quality Choice photo-1

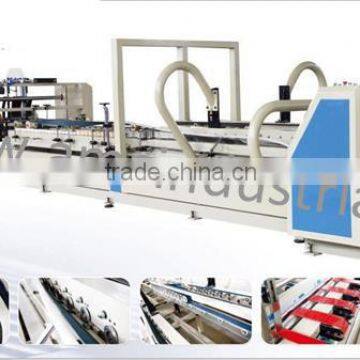

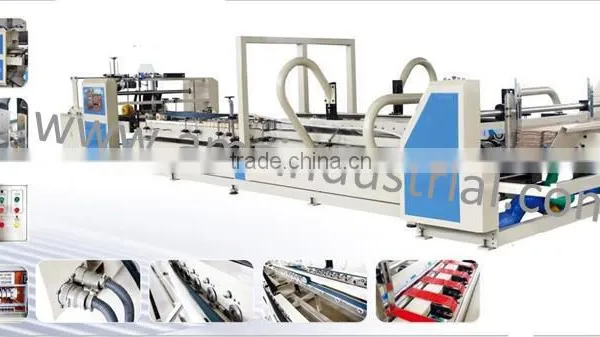

QAF Small Corrugated Box Automatic Folder Gluer Quality Choice photo-2

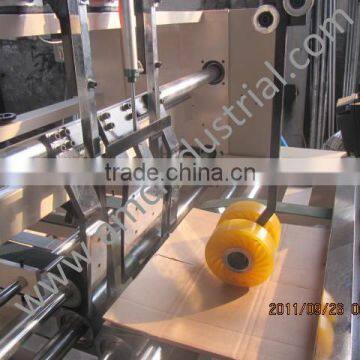

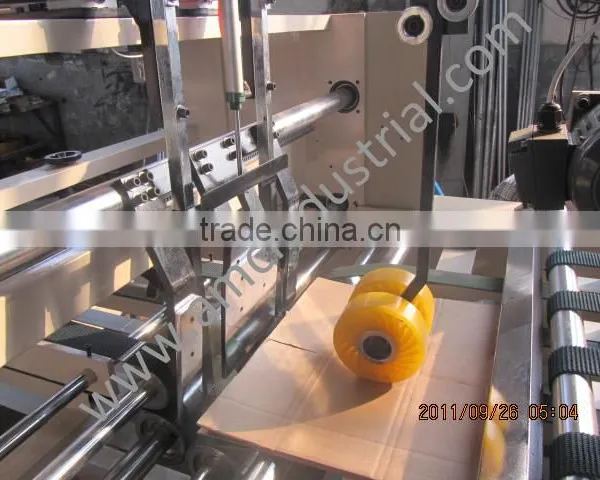

QAF Small Corrugated Box Automatic Folder Gluer Quality Choice photo-3

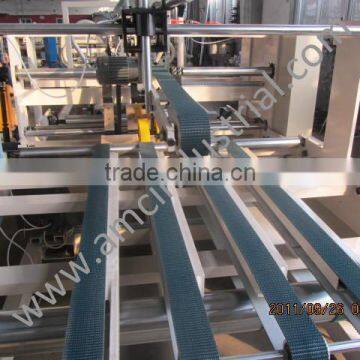

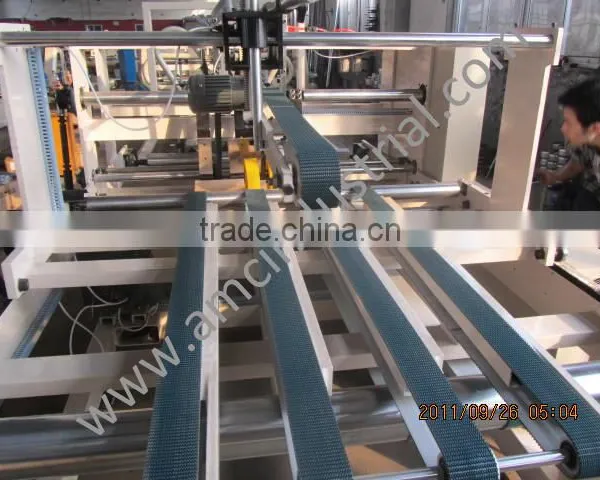

QAF Small Corrugated Box Automatic Folder Gluer Quality Choice photo-4

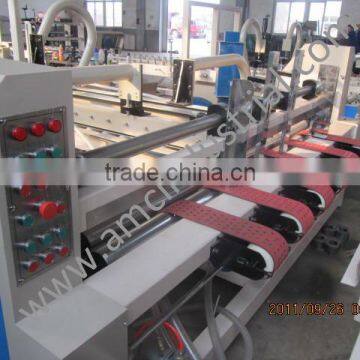

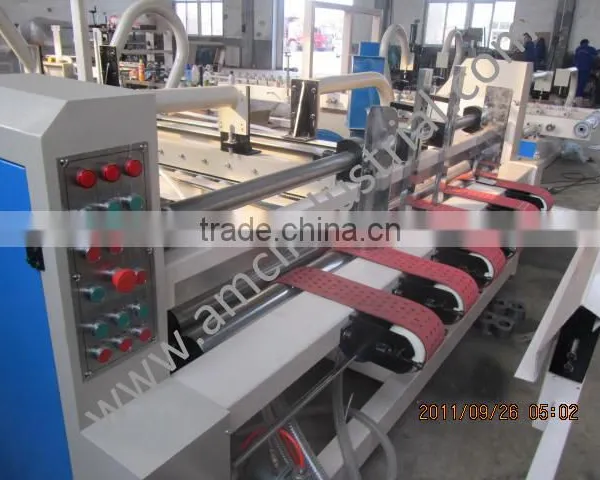

QAF Small Corrugated Box Automatic Folder Gluer Quality Choice photo-5

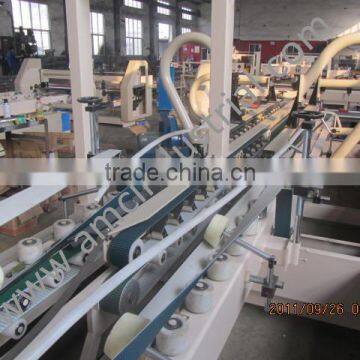

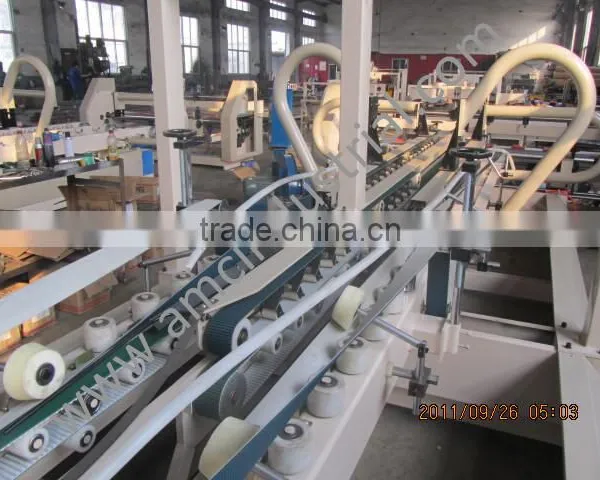

QAF Small Corrugated Box Automatic Folder Gluer Quality Choice photo-6
US$ 35,000 - 50,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Automatic Grade:
Automatic
Usage:
Paper Forming Machine
Payment & Shipping
Payment Methods:
Port of Shipment:
China port
Delivery Detail:
Delivery time depends on order quantity.
Condition New
Automatic Grade Automatic
Usage Paper Forming Machine
Place of Origin China
Brand Name AMC
Model Number QAF
Voltage 380V 50HZ
Power(W) 12KW
Dimension(L*W*H) 11000x3000x1600mm
Weight 6000kg
Certification CE ISO
Warranty 12 Months
After-sales Service Provided Engineers available to service machinery overseas



QAF Automatic Folder Gluer for corrugated carton box





QAF Small corrugated box Automatic Folder Gluer







Brief Introduction:



l  This automatic folder gluer machine can be used for gluing 3-ply corrugated box and 5-ply corrugated box.

l  Customer first do printing, slotting and die cutting with flexo printer slotter die cutter machine, then use this automatic folder gluer machine to glue sheet into boxes.





Characteristics:

  1. 1.       Belt feeder with vacuum suction
  2. 2.       Frequency convertor control machine speed. PLC control, touch screen operating.





Technical Specification:



Model

QAF-2400

Max. sheet size

1000x2400mm

Min. sheet size

170x420mm

Max. speed

130m/min

Max. working speed

100m/min

Dimensions (LxWxH)

11000x3000x1600mm

Total weight

6000kg

Power Required

12KW, 380V, 3Phase, 50HZ

Corrugated sheet type

3-ply / 5-ply

Note: Max. available machine size 1600x2800mm

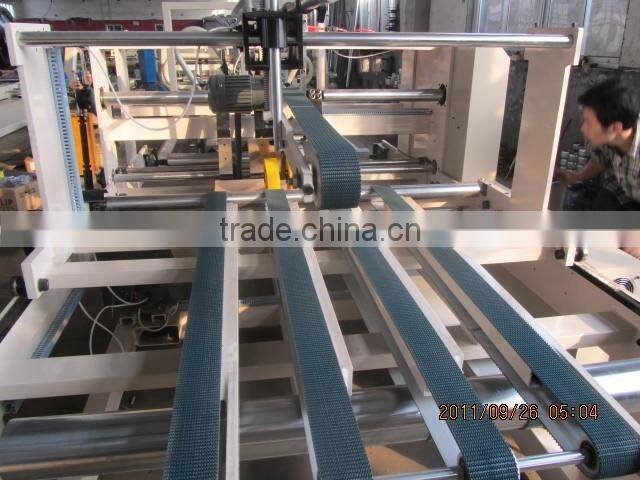

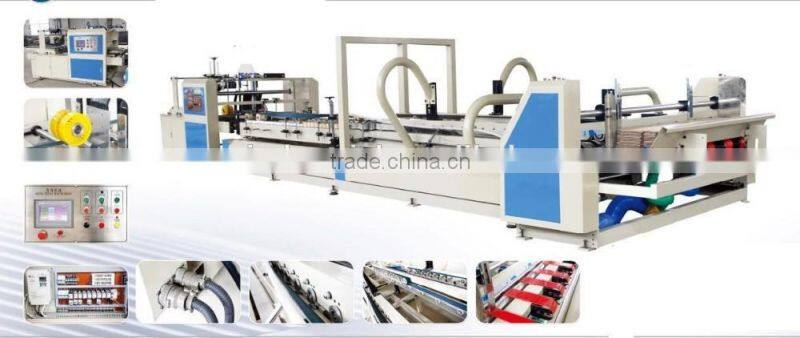

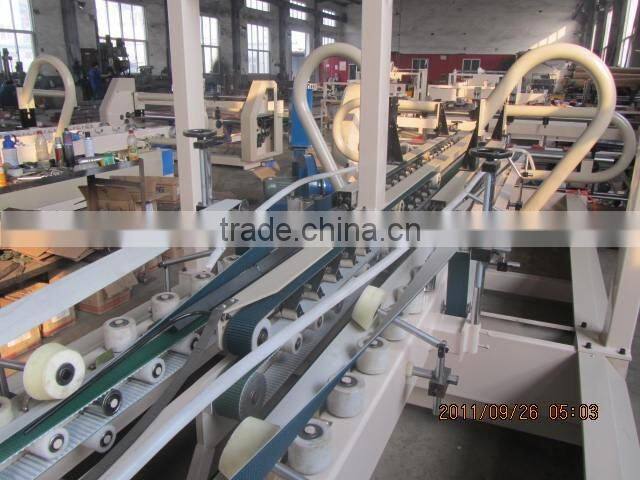

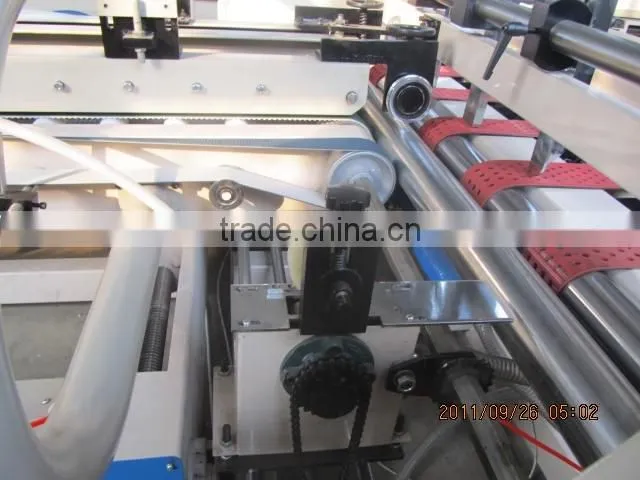

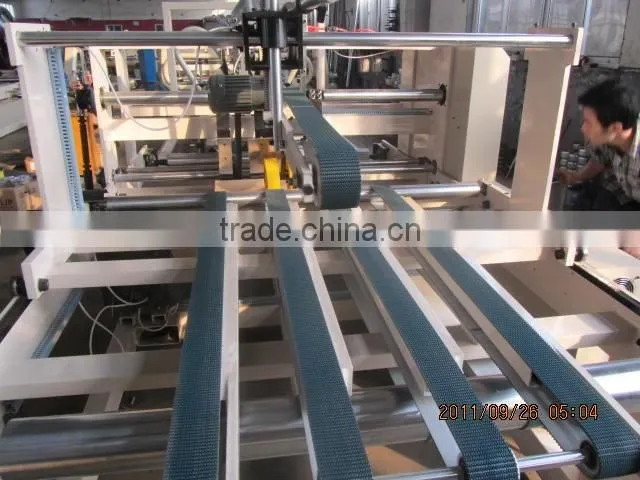

QAF Small corrugated box Automatic Folder Gluer

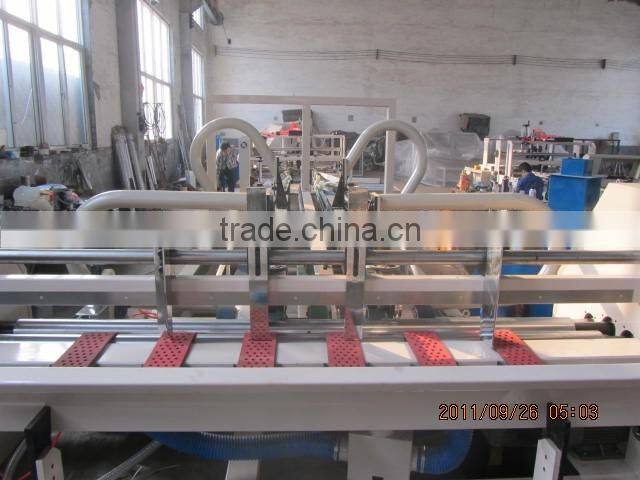

QAF Small corrugated box Automatic Folder Gluer

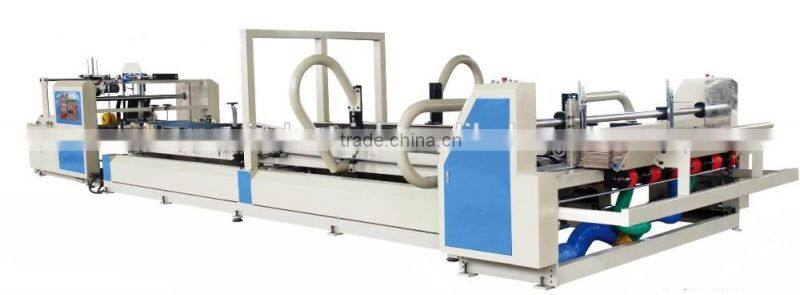

QAF Small corrugated box Automatic Folder Gluer

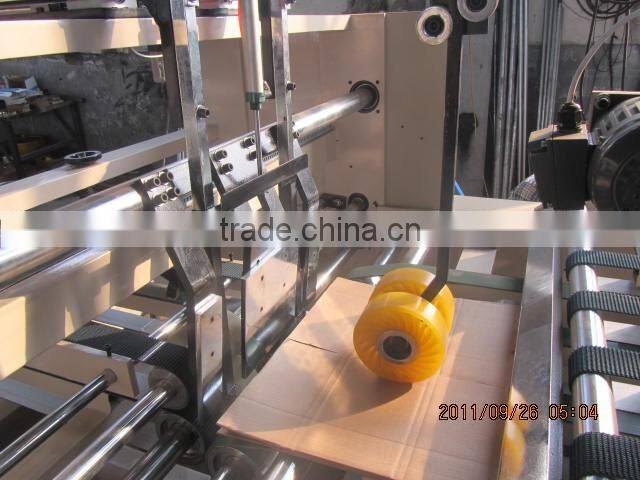

QAF Small corrugated box Automatic Folder Gluer

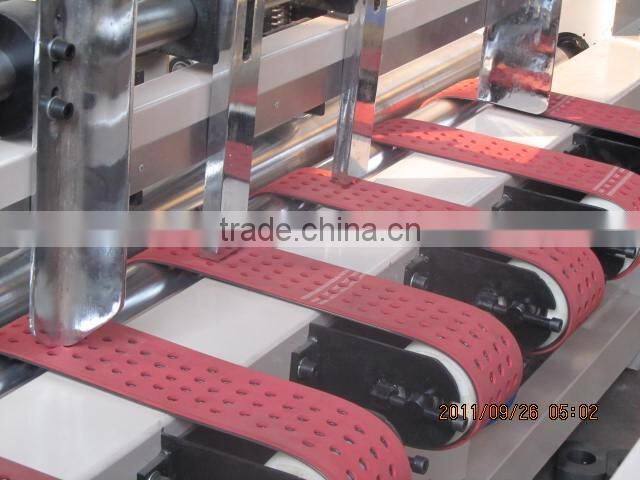

QAF Small corrugated box Automatic Folder Gluer

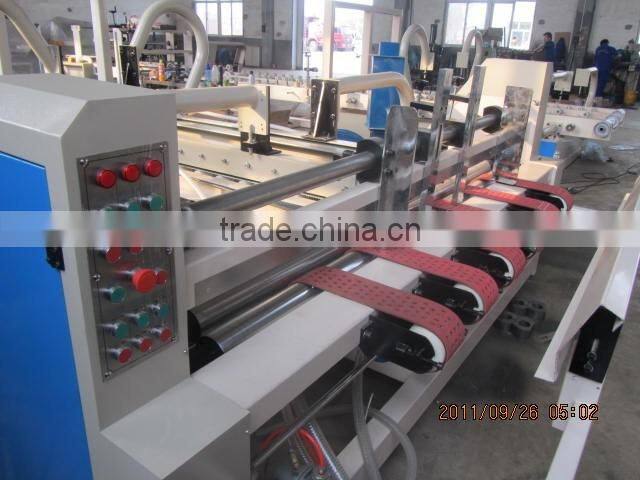

QAF Small corrugated box Automatic Folder Gluer





QAF Small corrugated box Automatic Folder Gluer





QAF Small corrugated box Automatic Folder Gluer





QAF Small corrugated box Automatic Folder Gluer
