QF Folder Gluer Corrugated Carton Making Machine Quality Choice
US$ 1 - 2
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Other, folder gluer
Automatic Grade:
Automatic
Payment & Shipping
Payment Methods:
Port of Shipment:
China port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
BFY Thin Blade Slitter Scorer MachineUS$ 3,500 - 5,000MOQ: 1 Set -
1400x2500mm High Speed Lead Edge Feeder Four Colors Automatic Flexo Printer Slotter Die Cutter With Stacker Quality ChoiceUS$ 99,200 - 154,200MOQ: 1 Set
-
QAF Small Corrugated Box Automatic Folder Gluer Quality ChoiceUS$ 35,000 - 50,000MOQ: 1 Set
-
Flexo Printer Slotter With Folder Gluer Counter Ejector Quality ChoiceUS$ 470,000 - 570,000MOQ: 1 Set
-
QF-QD2600 Automatic Stitching Machine (stitcher for Corrugated Carton Box)US$ 135,000 - 135,000MOQ: 1 Set
Condition
New
Type
Other, folder gluer
Automatic Grade
Automatic
Place of Origin
China
Brand Name
AMC
Model Number
QF-2400
Voltage
380V 50HZ
Power(W)
12 KW
Dimension(L*W*H)
11000x3000x1600mm
Weight
5.5T
Warranty
12 monthes
After-sales Service Provided
Engineers available to service machinery overseas
QF AUTOMATIC FOLDER GLUER
Characteristics:
- Belt feeder with vacuum suction
- Frequency convertor control machine speed. PLC control, touch screen operating.
Technical Specification:
Model | QF-2400 | QF2500 |
Max. sheet size | 1200x2400mm | 1200x2500mm |
Min. sheet size | 300x900mm | 300x900mm |
Max. speed | 130m/min | 130m/min |
Max. working speed | 100m/min | 100m/min |
Dimensions (LxWxH) | 11000x3000x1600mm | 12500x3200x1600mm |
Total weight | 5500kg | 6500kg |
Power Required | 12KW, 380V, 3Phase, 50HZ | 12KW, 380V, 3Phase, 50HZ |
Corrugated sheet type | 3-ply / 5-plycorrugated sheet | 3-ply / 5-plycorrugated sheet |
Details of each section
Feeding Section
- Vacuum suction feeding to feed warping paperboard easily
- Quality electromagnetic clutch and brake adpoted, feeding section controlled independently, operation easily
- Stainless steel glue wheel adopted, longworking life and saving glue cost
- Second creasing struction can impress again the paperboard which was not creased well

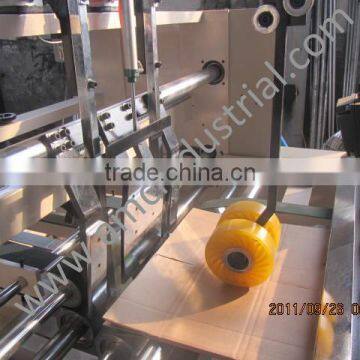

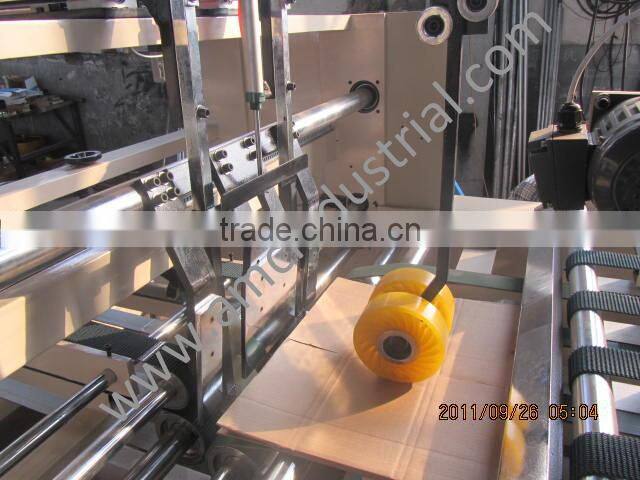

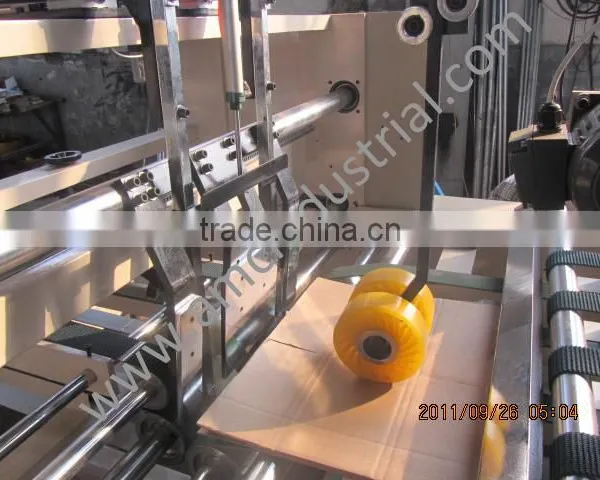

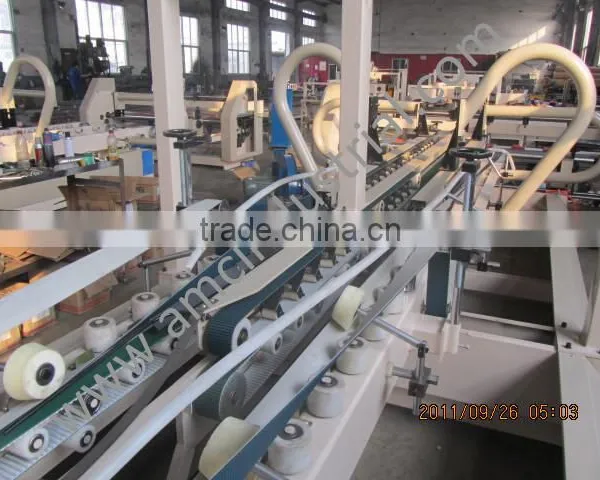

Gluing and Folding Section
- Simpless structure and high reliability, glue quantity adjustable, cleaning easily
- Creaser wheel adjustable, suit for 2-8mm thick paperboard
- Imported quality rubber belt adopted, automatic folding
- With paperboard rectify device and creasing rectify device
Counter and Stacker Section
- Stacking and counting are simple and reliable
- Digital control, operation easily and reliable. No-stop put in data and automatic counting
- With rectification function
- Paperboard counting and put out by pneumatic, stable and quickly
