Home > Packaging & Printing > Packing Machinery > Multi-Function Packing Machine > TMJ-A Automatic Flute Laminator
US$ 25,000 - 50,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Application:
Beverage, Other, Other, Beverage, Machinery & Hardware, Other
Packaging Type:
Other
Payment & Shipping
Payment Methods:
Port of Shipment:
China port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
QF Folder Gluer Corrugated Carton Making Machine Quality ChoiceUS$ 1 - 2MOQ: 1 Set -
BFY Thin Blade Slitter Scorer MachineUS$ 3,500 - 5,000MOQ: 1 Set
-
1400x2500mm High Speed Lead Edge Feeder Four Colors Automatic Flexo Printer Slotter Die Cutter With Stacker Quality ChoiceUS$ 99,200 - 154,200MOQ: 1 Set
-
QAF Small Corrugated Box Automatic Folder Gluer Quality ChoiceUS$ 35,000 - 50,000MOQ: 1 Set
-
Flexo Printer Slotter With Folder Gluer Counter Ejector Quality ChoiceUS$ 470,000 - 570,000MOQ: 1 Set
Condition
New
Application
Beverage, Other, Other, Beverage, Machinery & Hardware, Other
Packaging Type
Other
Packaging Material
Plastic
Automatic Grade
Automatic
Driven Type
Electric
Voltage
220V
Power
12KW
Place of Origin
China
Brand Name
AMC
Model Number
TMJ-A
Weight
6000kg
Dimension(L*W*H)
10mx2.25mx2.4m
After-sales Service Provided
Engineers available to service machinery overseas

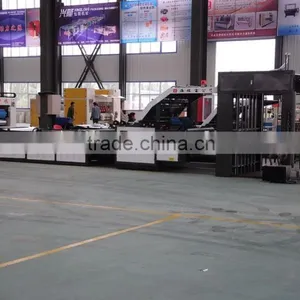

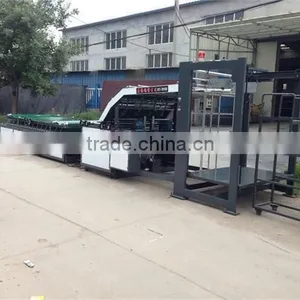

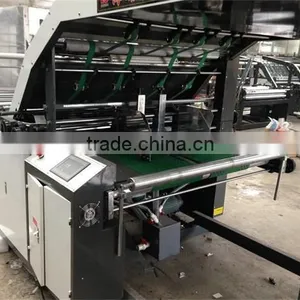

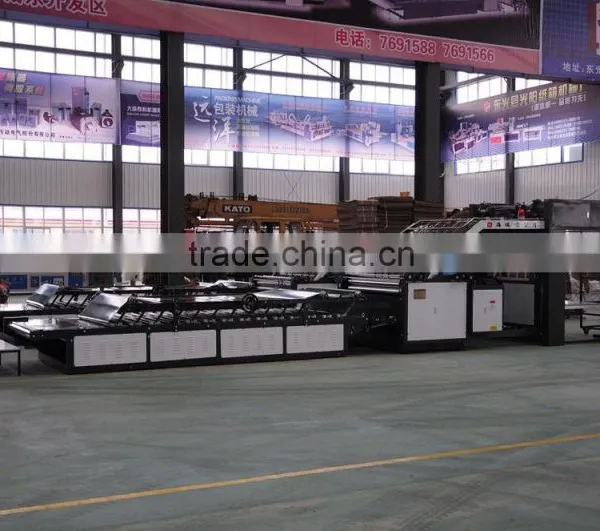

TMJ-A automatic flute laminator
Characteristics:
- Automatic vacuum feeder.
- Automatic stacking table for surface paper supply.
- Surface paper stacking height could be 1.5m.
- Stacking table can lift automatically when feeding.
- Servo motor and PLC are used to control feeding.
- Front stop for positioning.
- Automatic glue supplying and circulating.
- Automatic counter.
- Synchronous belt for transmitting, can keep high laminating precision.
Specification:
Model | TMJ-1300A | TMJ-1450A | TMJ-1600A | TMJ-1700A |
Max. sheet size | 1300 x 1100 mm | 1450 x 1250 mm | 1600 x 1250 mm | 1700 x 1250 mm |
Min. sheet size | 400 x 400 mm | 400 x 400 mm | 400 x 400 mm | 400 x 400 mm |
Working speed | 0-100 pcs/min | 0-100 pcs/min | 0-100 pcs/min | 0-100 pcs/min |
Laminating accuracy | +/-1.5 mm | +/-1.5 mm | +/-1.5 mm | +/-1.5 mm |
Power | 10 kw | 12 kw | 12 kw | 12 kw |
Dimension | 10mx2mx2.4m | 10mx2.15mx2.4m | 10mx2.25mx2.4m | 10mx2.35mx2.4m |
Weight | +/-4500 kg | +/-6000 kg | +/-6000 kg | +/-6500 kg |
