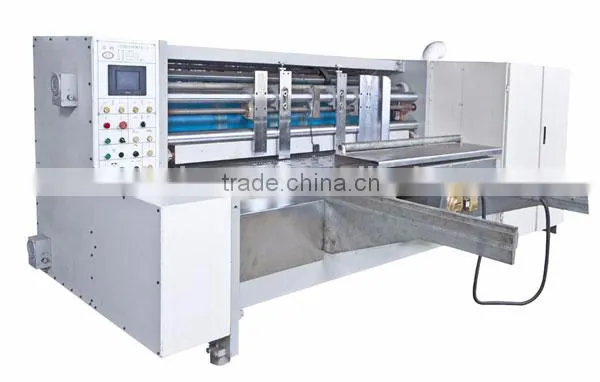

ZHT Automatic Rotary Die-cutting Machine
US$ 1 - 2
MOQ: 1 Set
Key Specifications
Get Latest Price
Type:
Die-cutting machine
Payment & Shipping
Payment Methods:
Port of Shipment:
China Port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Type
Die-cutting machine
ZHT Automatic Rotary Die-cutting Machine
Characteristics:
- Wheel type lead edge feeder with vacuum suction
- One pair of feed rolls
- Motorized side guide control
- Main motor adopts variable frequency motor
- Use touch screen and PLC to control the machine
- Motorized register adjustment
- Manual adjustment of die roll side control, range ±4mm
- Manual adjustment of Anvil roll nip control, range 2-8mm
- Manual adjustment of pull roll nip control, range 2-8mm
- Button of emergency stop is installed
- Thickness of wallboard is 50mm
- Gear is quenched and ground
- Speed compensation device can keep die cutting precision regardless of changes in anvil diameter
- Shaving device is equipped for repeated repair of anvil rubber
Specification:
Items |
1400×2500 |
1600×2500 |
Working speed |
80-120 pcs/min |
80-100 pcs/min |
Max. feeding size |
1400×2500 mm |
1600×2500 mm |
Min. feeding size |
400×500 mm |
450×500 mm |
Die-cutting precision |
±1 mm |
±1 mm |
Suitable paper board thickness |
2-12 mm |
2-12 mm |
Main motor power |
5.5 kw |
5.5 kw |
Weight |
6500 kg |
7000 kg |
Technical specification of die cutting roller:
Items |
1400×2500 |
1600×2500 |
|
Diameter of cutting roll |
407.2 mm |
487 mm |
|
Height of cutting knife |
25.4 mm |
25.4 mm |
|
Material of cutting knife |
High speed tool steel |
|
|
Diameter of the knives |
458 mm |
537.8 mm |
|
Material of anvil roll |
seamless steel tube |
seamless steel tube |
|
Thickness of anvil roll |
35 mm |
35 mm |
|
Distance between holes |
100 mm |
100 mm |
|
