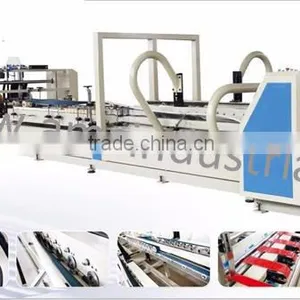

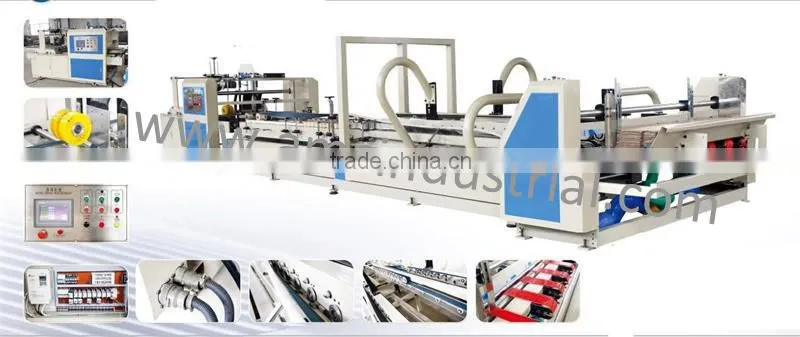

QF AUTOMATIC FOLDER GLUER
Characteristics:
- Belt feeder with vacuum suction
- Frequency convertor control machine speed. PLC control, touch screen operating.
Technical Specification:
Model |
QF-2400 |
QF2500 |
Max. sheet size |
1200x2400mm |
1200x2500mm |
Min. sheet size |
300x900mm |
300x900mm |
Max. speed |
130m/min |
130m/min |
Max. working speed |
100m/min |
100m/min |
Dimensions (LxWxH) |
11000x3000x1600mm |
12500x3200x1600mm |
Total weight |
5500kg |
6500kg |
Power Required |
12KW, 380V, 3Phase, 50HZ |
12KW, 380V, 3Phase, 50HZ |
Corrugated sheet type |
3-ply / 5-plycorrugated sheet |
3-ply / 5-plycorrugated sheet |
Details of each section

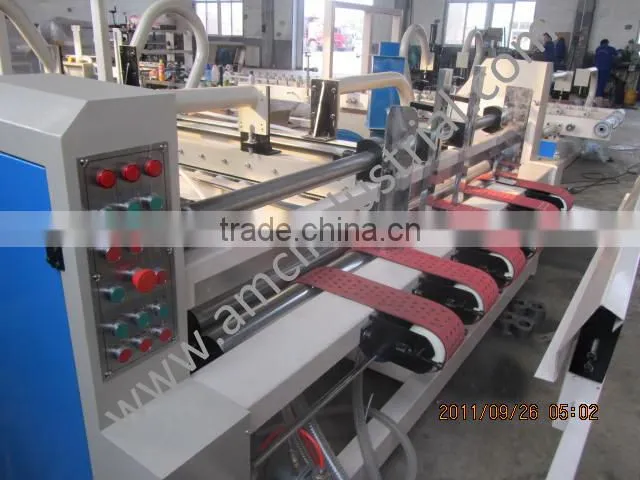

Feeding Section
- Vacuum suction feeding to feed warping paperboard easily
- Quality electromagnetic clutch and brake adpoted, feeding section controlled independently, operation easily
- Stainless steel glue wheel adopted, longworking life and saving glue cost
- Second creasing struction can impress again the paperboard which was not creased well

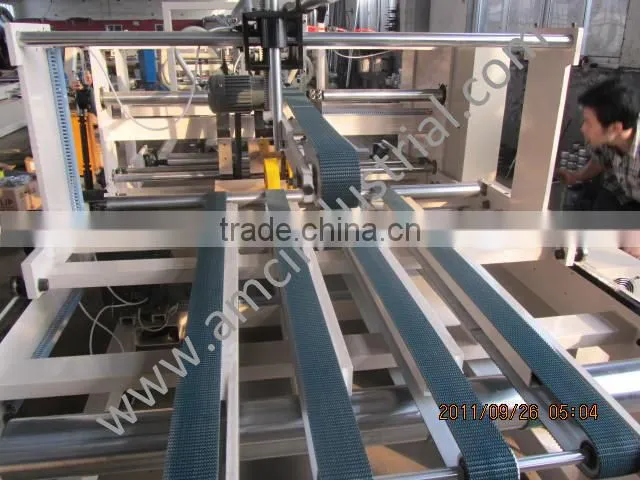

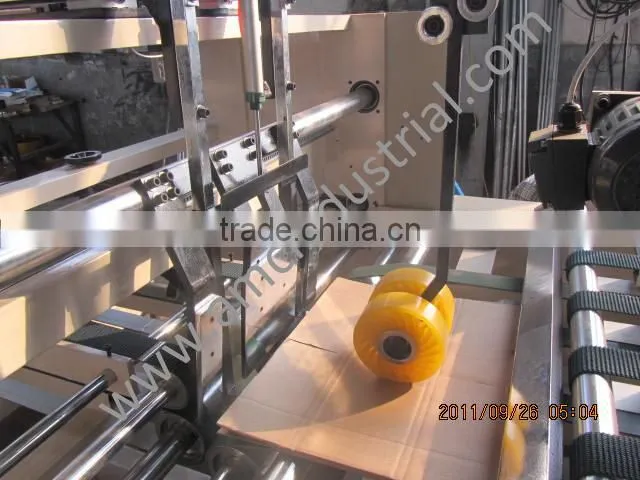

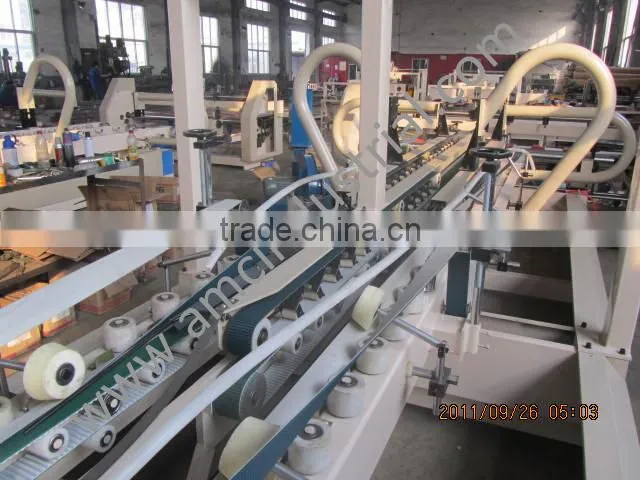

Gluing and Folding Section
- Simpless structure and high reliability, glue quantity adjustable, cleaning easily
- Creaser wheel adjustable, suit for 2-8mm thick paperboard
- Imported quality rubber belt adopted, automatic folding
- With paperboard rectify device and creasing rectify device
Counter and Stacker Section
- Stacking and counting are simple and reliable
- Digital control, operation easily and reliable. No-stop put in data and automatic counting
- With rectification function
- Paperboard counting and put out by pneumatic, stable and quickly
