Super brightness 5050 smd led module W/R/B//G/Y led light module.
Features:
² 95% transmittance lens, Wider view angle 155°.
² Constant Current Driving method,40 pcs per Chain.
² Suitable for Super Thin channel letters and light boxes, No Spot, No Shadow.
² Injection molding process,IP Rate: IP 65, waterproof.
² Exposed Aluminum pcb design, perfect heat dissipation.
² Adopt Top 5050 SMD LED, Original Epistar chip from Taiwan.
² Long life span, 50,000 hrs.
Product Specifications:
Dimension |
40x15x6.8 mm |
|||||||
LED No |
3 pcs 5050 SMD LED |
|||||||
Voltage |
Input 12VDC |
|||||||
View angle |
155 degree |
|||||||
Current |
60mA |
60mA |
60mA |
60mA |
60mA |
|||
Watts |
0.72 |
0.72 |
0.72 |
0.72 |
0.72 |
|||
Lumen |
66-72 |
12 |
37.5 |
16 |
19.5 |
|||
Color |
White |
Blue |
Green |
Yellow |
Red |
|||
Drive method |
Contant Current Drive |
|||||||
Max connection |
40 pcs per a Chain |
|||||||
Working temp |
-20~+60℃ |
|||||||
IP rate |
IP65 |
|||||||
Cover |
Milky white ABS |
|||||||
Warranty |
36 months |
|||||||
Certificate |
CE:BTRE0708181359 / RoHS: BTRS0708310889 |
|||||||
Part No |
STF-Z3W |
STF-Z3B |
STF-Z3G |
STF-Z3Y |
STF-Z3R |
|||

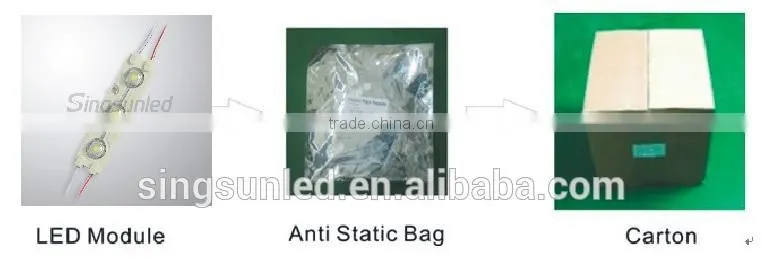

Package:
Every 40 pcs per a string, every 3 string in an anti-static bag, 2400 pcs per a carton box. Carton size: 50*35*31.5 cm.
Net Weight: 8 g/pc; 960 g/bag; 20kg/carton.
Dimension Diagram(mm):

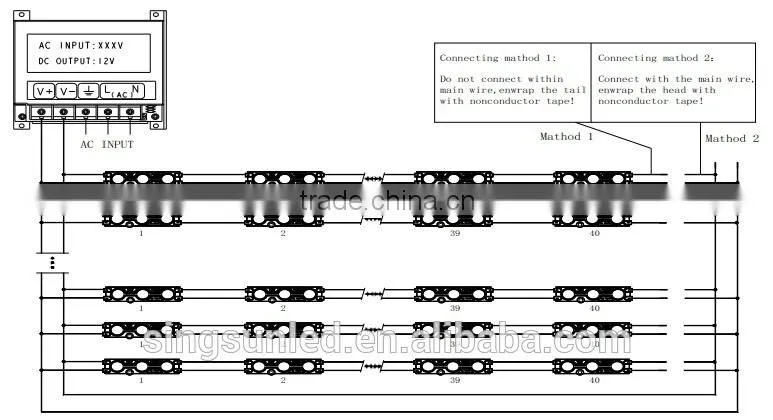

Connection Diagram:
Application:

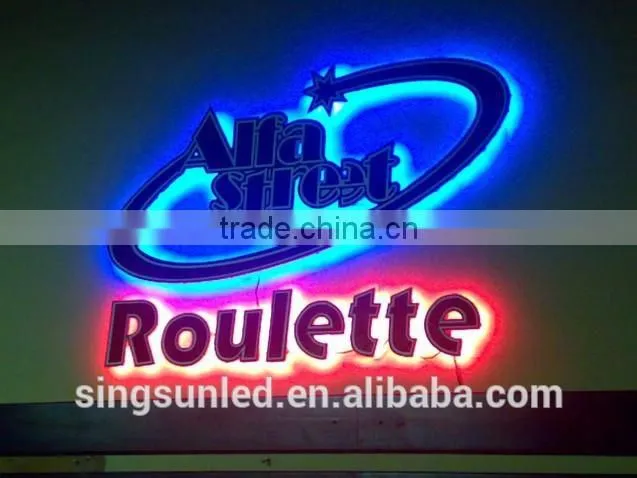

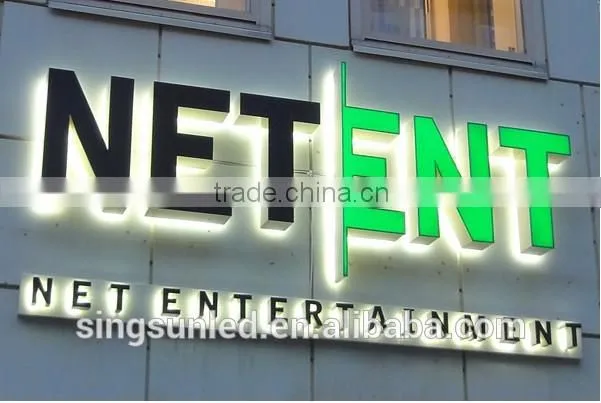

1. Backlight of giant signage ,channel letter and lighting box.
2. Marine signal and task lighting.
3. Architectural outdoor lights.
CE & RoHS Certifications:
Exhibition Pictures:
Russian REKLAMA 2014 (Time: 23-36, September, 2014. Booth No: FC144)
2014 Hong Kong International Lighting Fair Autumn Edition ( Time: 27-30 October, 2014. Booth No: CR-A32)
2014 GZ& Shanghai International Lighting EXPO
