Outdoor smd led module high power led module high power led pcb module

FOB Price

USD $1.2 - $1.5 / Piece

100 Pieces(Min.Order)

Product Details

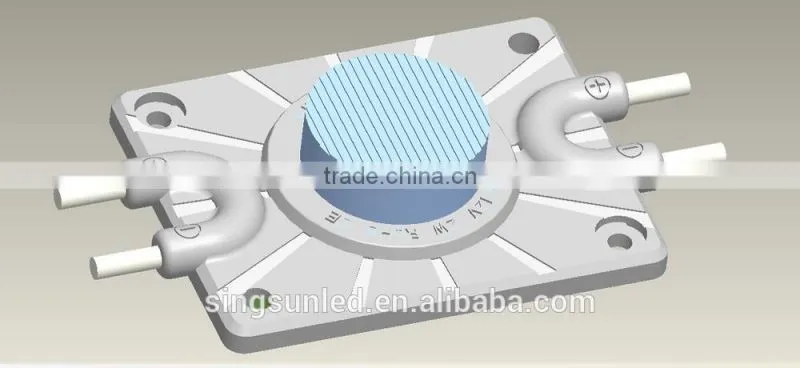

Outdoor smd led module high power led module high power led pcb module.

Features:

Ø With series-parallel connection circuit for led pcb, each string has 20pcs and each module can be cut individually;
Ø Take 3535 LED as light source, no light spot, low decay and good consistency;
Ø The LED passed America LM80 standard, 5 years quality warranty.
Ø ABS Injection outer cover, beautiful and unique appearance, good heat dissipation;
Ø Low consumption, high brightness, free maintenance, long life span.
Ø Input voltage: DC12V, reliable and safe.
Ø Protect level: IP65,waterproof.

Product Specification:

LED Type	3535 LED
LED BRAND	GENESIS
Viewing Angle	15*45°
Luminous Flux(lm)	165 LM
LED Qty	1 pcs
Life Span	80,000 H
Working Voltage	DC12V
Consumption	2 W
Driving Method	constant voltage
Stand Length In Serial Connection	20pcs
Maximum Length In Serial Connection	≤20pcs
Shell	Milk white ABS
Dimension	45*35 mm
Available Color	W/WW/CW
Certification	CE&ROHS
Working Temperature	-20℃ —— +60℃
Store Temperature	-50℃ —— +60℃
IP Degree	IP65

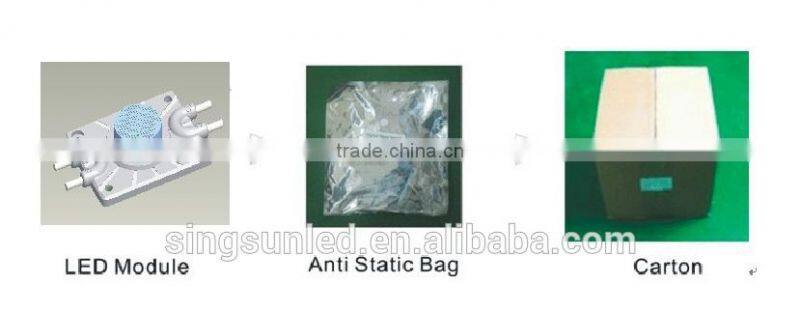

Package:

Every 20 pcs per a string, every 3 string in an anti-static bag, 800 pcs per a carton box. Carton size: 50*35*31.5 cm.

Net Weight: 15 g/pc; 300 g/string; 12kg/carton.

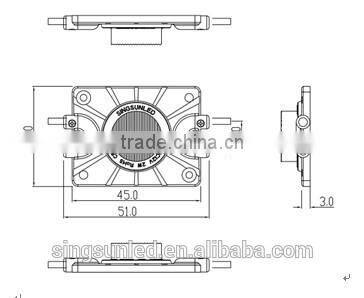

Dimension Diagram(mm):

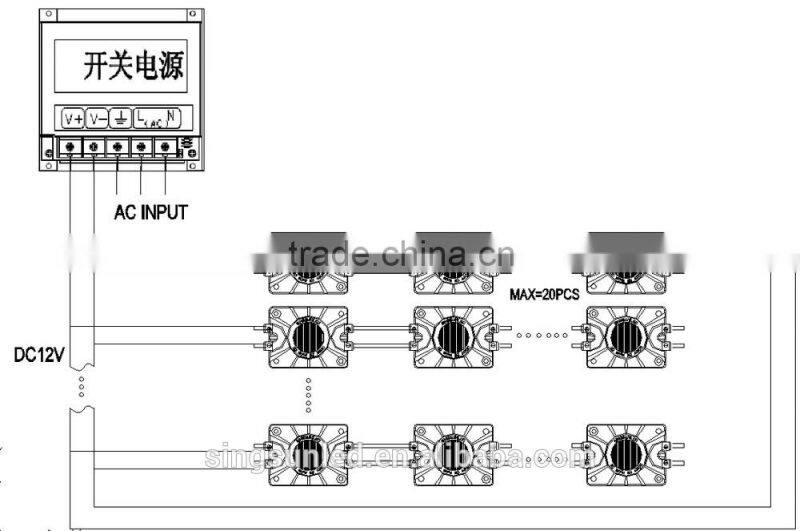

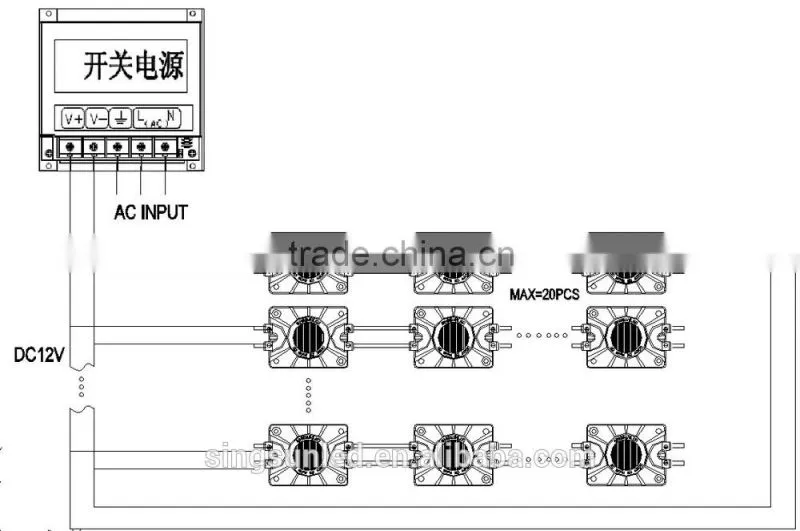

Connection Diagram:

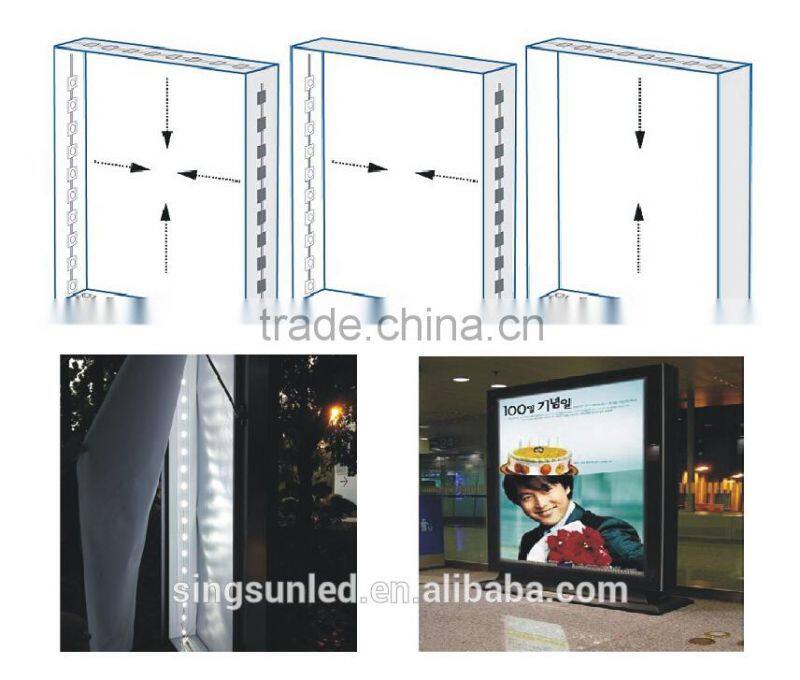

Application:

1. Side light of double side lighting box.

Exihibition Pictures:

Russian REKLAMA 2014 Exhibition (Time: 23-26 September, 2014. Booth No: FC144)

2014 Hong Kong International Lighting Fair Autumn Edition (Time: 27-30 October, 2014. Booth No: CR-A32)

Shenzhen Singsunled Co., Ltd.: Contact nameTracy Gao; Phone86-755-28089078; Address2F, No. 5 of Xinggong 2nd Road, Hongxing Village, Gongming Street, Guangming New District Shenzhen,Guangdong
