Help Center1600C ED/U/GC Type Electric Muffle Furnace SiC Heating Rod
Related Products
-
1600C Electric Furnace Sic Silicon Carbide Heating ElementUS$ 2 - 15MOQ: 4 Pieces -
High Temperature Industrial Muffle Furnace Electric SiC Silicon Carbide RodUS$ 2 - 15MOQ: 4 Pieces
-
1600C Industrial Muffle Furnace Electric Spiral Type Sic Heater RodUS$ 2 - 15MOQ: 4 Pieces
-
1600C Electric Furnace Silicon Carbide Sic Heating ElementsUS$ 2 - 15MOQ: 4 Pieces
-
1600C Electric Furnace Silicon Carbide Sic HeaterUS$ 2 - 15MOQ: 4 Pieces
Specifications
1600C electric muffle furnace SiC heating rod1.Working temperature:600-1600C
2.Types:ED,GC,U,W,Spiral
3.Diameter: 8-54mm

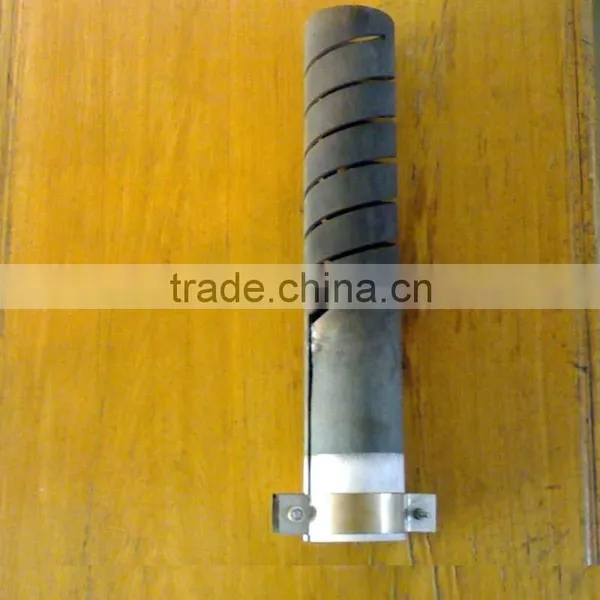

1600C ED/U/GC type Electric muffle furnaceon sic heating rod
1) Non-metallic heating element, based on material of high quality green silicon carbide.
2) Compared with metal, SiC heating element is characterized by anti-oxidation, corrosion resistance, long service life, deformation, easy installation and maintenance.
3) Widely used in multiple high temperature furnace(magnetic material, powder metallurgy, ceramic, glass, metallurgy and mechanical used) and other electric heating devices
4) SiC heating element can be used in air atmosphere without any protect atmosphere.
Shapes: ED, GC(DB), U, W, UL, SC, SCR, UX
Diameter: 8mm, 10mm,12mm, 14mm, 16mm, 18mm, 20mm, 25mm,30mm,35mm, 40mm, 45mm, 50mm and so on.
Specific gravity |
2.6~2.8g/cm3 |
Bend strength |
>300kg |
Hardness |
>9MOH’S |
Tensile strength |
>150kg/cm3 |
Porosity rate |
<30% |
Radiancy |
0.85 |
3. Technical parameter of rod type silicon carbide heating element
Diameter (OD, mm) |
Hot zone (HZ, mm) |
cold zone (CZ, mm) |
Overall length (OL, mm) |
Range of resistance (ohms) |
12 |
150-300 |
150-200 |
450-700 |
1.85-3.15 |
14 |
200-400 |
200-250 |
600-900 |
1.22-2.40 |
16 |
300-600 |
250-350 |
800-1100 |
1.60-3.00 |
20 |
300-900 |
300-400 |
1100-1500 |
1.14-3.10 |
25 |
300-1000 |
300-450 |
900-1600 |
0.75-2.40 |
30 |
400-1100 |
300-500 |
1000-1800 |
0.70-1.82 |
31.7 |
356-1499 |
280-406 |
916-2261 |
0.5-2.25 |
35 |
40-1700 |
300-400 |
1200-2300 |
0.68-2.89 |
38.1 |
406-1422 |
280-394 |
966-2210 |
0.4.-1.36 |
40 |
500-1700 |
300-400 |
1300-2300 |
0.60-2.02 |
44.4 |
508-2437 |
280-432 |
1068-3277 |
0.36-1.66 |
50 |
1000-2000 |
400 |
1800-2800 |
0.73-1.46 |
54 |
508-2438 |
305-458 |
862-3278 |
0.30-1.40 |
Standard export package: plywood box with expanded plastic and sponge
