Specifications
electric laboratory furnace high temperature SiC heating element1.Temperature:600-1600C
2.Type:ED,U,W,GC,SG,SD
3.Dia:8-54mm
electrical laboratory furnace high temperature SiC heating element
1) Non-metallic heating element, based on material of high quality green silicon carbide.
2) Compared with metal, SiC heating element is characterized by anti-oxidation, corrosion resistance, long service life, deformation, easy installation and maintenance.
3) Widely used in multiple high temperature furnace(magnetic material, powder metallurgy, ceramic, glass, metallurgy and mechanical used) and other electric heating devices
4) SiC heating element can be used in air atmosphere without any protect atmosphere.
Shapes: ED, GC, DB, U, W, UL, SC, SCR, UX
Diameter: 8mm, 10mm,12mm, 14mm, 16mm, 18mm, 20mm, 25mm,30mm,35mm, 40mm, 45mm, 50mm and so on.
Specific gravity |
2.6~2.8g/cm3 |
Bend strength |
>300kg |
Hardness |
>9MOH’S |
Tensile strength |
>150kg/cm3 |
Porosity rate |
<30% |
Radiancy |
0.85 |
3. Technical parameter of rod type silicon carbide heating element
Diameter (OD, mm) |
Hot zone (HZ, mm) |
cold zone (CZ, mm) |
Overall length (OL, mm) |
Range of resistance (ohms) |
12 |
150-300 |
150-200 |
450-700 |
1.85-3.15 |
14 |
200-400 |
200-250 |
600-900 |
1.22-2.40 |
16 |
300-600 |
250-350 |
800-1100 |
1.60-3.00 |
20 |
300-900 |
300-400 |
1100-1500 |
1.14-3.10 |
25 |
300-1000 |
300-450 |
900-1600 |
0.75-2.40 |
30 |
400-1100 |
300-500 |
1000-1800 |
0.70-1.82 |
31.7 |
356-1499 |
280-406 |
916-2261 |
0.5-2.25 |
35 |
40-1700 |
300-400 |
1200-2300 |
0.68-2.89 |
38.1 |
406-1422 |
280-394 |
966-2210 |
0.4.-1.36 |
40 |
500-1700 |
300-400 |
1300-2300 |
0.60-2.02 |
44.4 |
508-2437 |
280-432 |
1068-3277 |
0.36-1.66 |
50 |
1000-2000 |
400 |
1800-2800 |
0.73-1.46 |
54 |
508-2438 |
305-458 |
862-3278 |
0.30-1.40 |

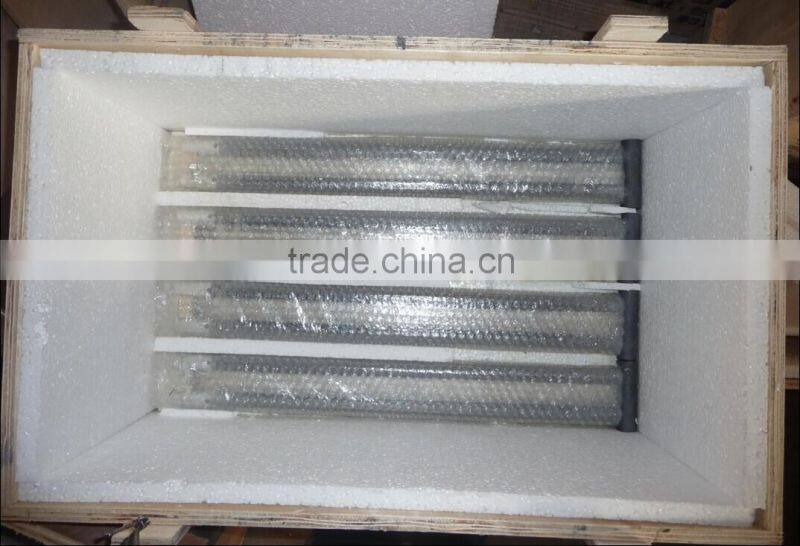

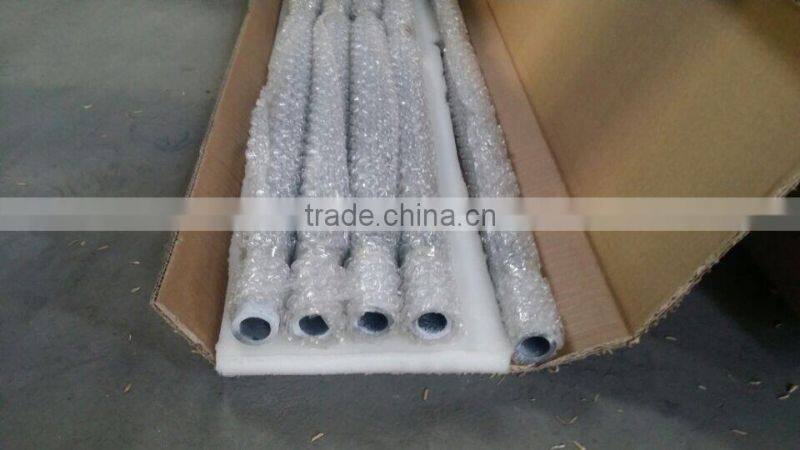

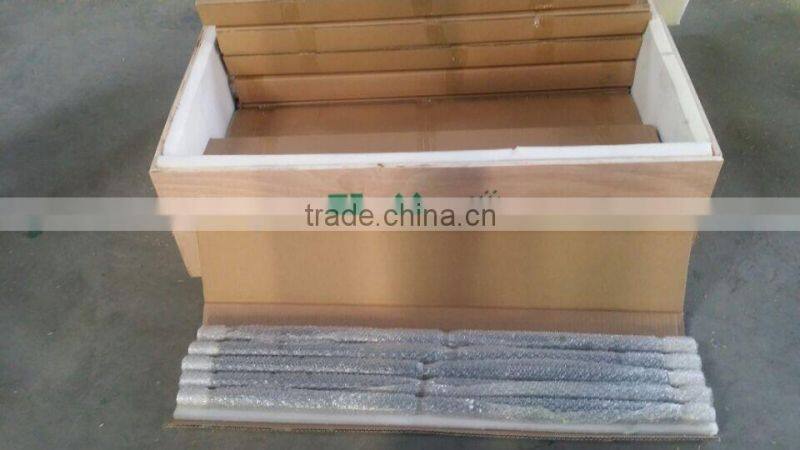

Standard export package: plywood box with expanded plastic and sponge
