Home > Lights & Lighting > LED Encapsulation Series > LED Module > White ABS Smd 5050 0.72w 3 Chips Led Module With Lens

White ABS Smd 5050 0.72w 3 Chips Led Module With Lens

Name: White ABS Smd 5050 0.72w 3 Chips Led Module With Lens
Brand: Singsun
SKU: 124117745
Availability: InStock

White ABS Smd 5050 0.72w 3 Chips Led Module With Lens thumbnail-1

White ABS Smd 5050 0.72w 3 Chips Led Module With Lens thumbnail-2

White ABS Smd 5050 0.72w 3 Chips Led Module With Lens thumbnail-3

White ABS Smd 5050 0.72w 3 Chips Led Module With Lens photo-1

White ABS Smd 5050 0.72w 3 Chips Led Module With Lens photo-2

White ABS Smd 5050 0.72w 3 Chips Led Module With Lens photo-3

US$ 0.26 - 0.26 MOQ: 1000 Pieces

Key Specifications

Get Latest Price

Model Number:

STF-Z3

Chip Material:

Other, Epistar

Emitting Color:

Natural White

Contact Supplier Request Quote Chat Now

Shenzhen Singsunled Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Model Number STF-Z3

Chip Material Other, Epistar

Emitting Color Natural White

Luminous Intensity 2000-2500MCD

Luminous Flux(lm) 60-66lm

Optical Attenuation(%) 2

Power Other, 0.72W

Power Dissipation 0.72

Color Rendering Index(Ra) 85

Color Temperature 6000-6500K

Operating Temperature(℃) -50, 60

Storage Temperature(℃) -20, 60

Place of Origin Guangdong, China

Brand Name Singsun

Certification CE

White ABS smd 5050 0.72w 3 chips led module with lens

Product Description

Dimension	40x15x6.8 mm
LED No	3 pcs 5050 SMD LED
Voltage	Input 12VDC
View angle	155 degree
Current	60mA	60mA	60mA		60mA		60mA
Watts	0.72	0.72	0.72		0.72		0.72
Lumen	66-72	12	37.5		16		19.5
Color	White	Blue	Green		Yellow		Red
Drive method	Contant Current Drive
Max connection	40 pcs per a Chain
Working temp	-20~+60℃
IP rate	IP65
Cover	Milky white ABS
Warranty	36 months
Certificate	CE:BTRE0708181359 / RoHS: BTRS0708310889
Part No	STF-Z3W	STF-Z3B		STF-Z3G		STF-Z3Y		STF-Z3R

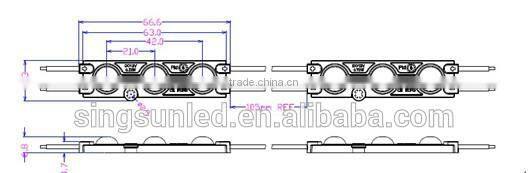

Dimension Diagram(mm):

Features:

95% transmittance lens, Wider view angle 155°.

Constant Current Driving method,40 pcs per Chain.

Suitable for Super Thin channel letters and light boxes, No Spot, No Shadow.

Injection molding process,IP Rate: IP 65, waterproof.

Exposed Aluminum pcb design, perfect heat dissipation.

Adopt Top 5050 SMD LED, Original Epistar chip from Taiwan.

Long life span, 50,000 hrs.

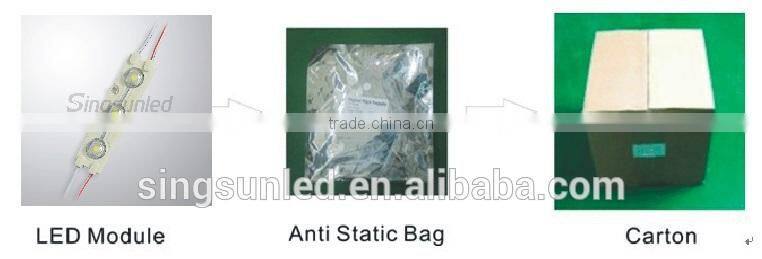

Packaging & Shipping

40 pcs per string, 120pcs per bag, 2400 pcs per carton box

Applications:

Idea for in cabinet, furniture, landscape
Channel-letter backlights, signboard, sign and decoration, and more high luminance efficiency and low power consumption
For cable and fixing hole/Channel letters backlighting/Advertisement signs acklighting/Advertisement light boxes backlighting

Our Services

1. For all your inquiries about us or our products, we will reply you in detail within 24 hours.

2. We own well-trained and passionate sales & after-sale services who can speak fluent English language.

3. We offer OEM services. Like print your own logo on product or customize the retail box packing ,etc.

4. We have very experienced R&D engineers and we have strong ability to do ODM projects.

Company Information

Shenzhen Singsun LED Co., Ltd, was founded in 2009, specialized in development & production of LED lighting products.We are engaged in research and development, production, marketing and service. Singsun LED has been one of the most excellent manufacturers in the LED field in Shenzhen, China.

We have dedicated in providing high quality advertisment lighting,perfect commercial lighting solution, We have owner design term and advance production equipments. Main products include LED module,LED strip,LED power supply, Rigid LED strip,LED controller,LED connector, etc, which are widely used in signage lighting, advertisting light decoration, advertisting liht box and commercial lighting area.

CE and ROHS certification:

FAQ

Q1: Can I have samples to test?
A: Yes,we are pleased to supply samples to test and check quality,mixed sample order is available. Please note, free samples within 10pcs. and buyer pay for shipping cost.
Q2: Do you have any MOQ limited?
A: Our MOQ is 1000pcs.
Q3: What’s the lead time?
A: Sample :1-5days. Mass production: 7-10days.
Q4:How do you ship the goods and how long does it take?
A: We usually ship by DHL,UPS,FEDEX,TNT. It usually takes 3-5days to arrive.By air,by sea are also acceptable.
Q5: Do you offer guarantee for your products?
A: Yes, we offer 3-5 years guarantee for the products.
Q6: Do you accept drop shipping
A: Yes, it is available.
Q7: What's the payment method you accept?
