High Brightness DC12v Waterproof 5050 Samsung Led Module Korea IP68
- SHENZHEN
- Credit Card
You May Like
-
Good Price 3 Chips 5050 Smd Samsung Led Module IP68 Waterproof nc Korea
-
Wide View Angle 120 Degree ABS Injection 5630 Led Module for Light Box
-
High Brightness 140lumen Samsung Led 12v 1.44w Injection 5630 Led Module
-
Good Price 3 Chips High Lumen 5630 LED Module Light
-
Factory Direct LED Module 5630 1.44W /Waterproof IP68 Injection LED Module
-
12V 3 Led Module 5630 Injection LED Module With Lens
Product Details
| Model Number | STF-K3 | Chip Material | Other, Epistar | |
| Emitting Color | Other, Pure white | Luminous Intensity | 2000-2500MCD | |
| Luminous Flux(lm) | 60-66lm | Optical Attenuation(%) | 2 | |
| Power | Other, 0.72 | Power Dissipation | 0.72 | |
| Color Rendering Index(Ra) | 75 | Color Temperature | 6000-6500K | |
| Operating Temperature(℃) | -20, 60 | Storage Temperature(℃) | -50, 60 | |
| Place of Origin | Guangdong, China | Brand Name | Singsun | |
| Certification | CE |
Product Description

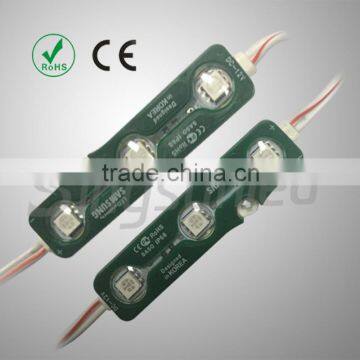

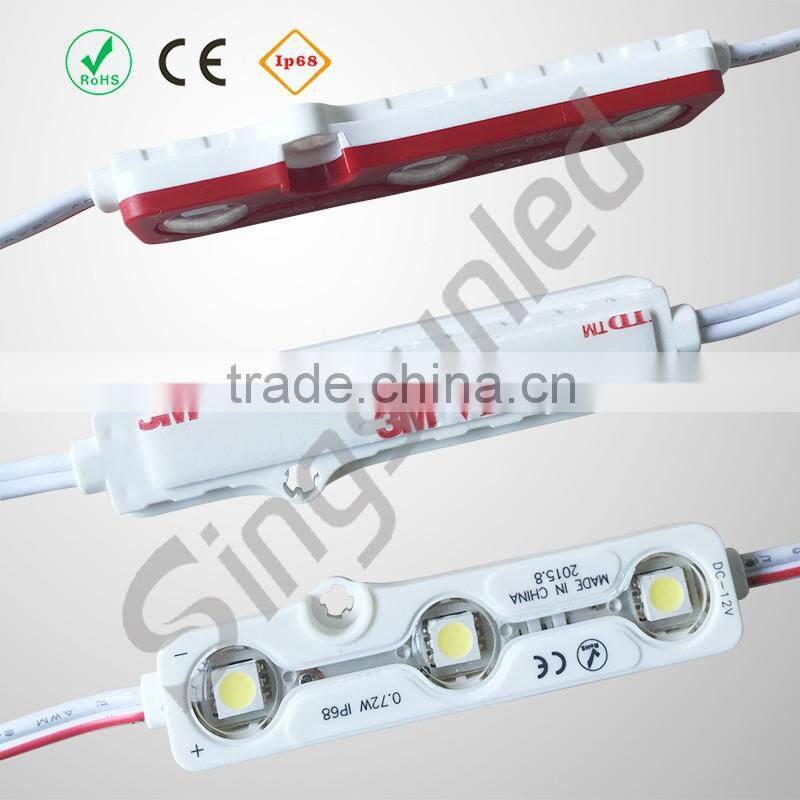

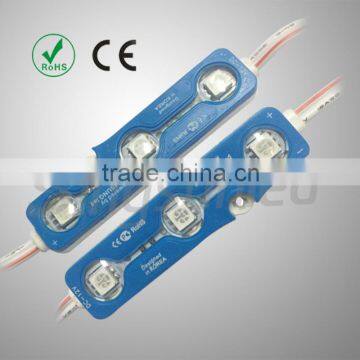

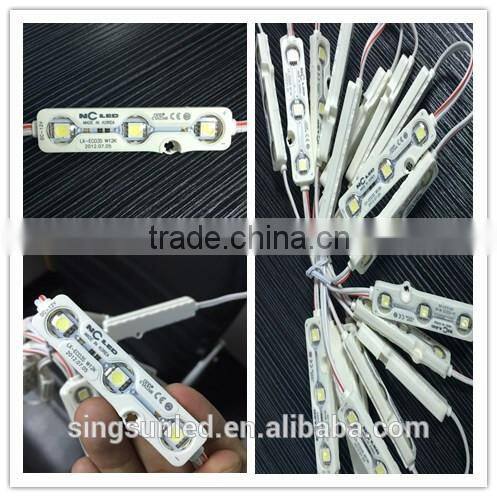

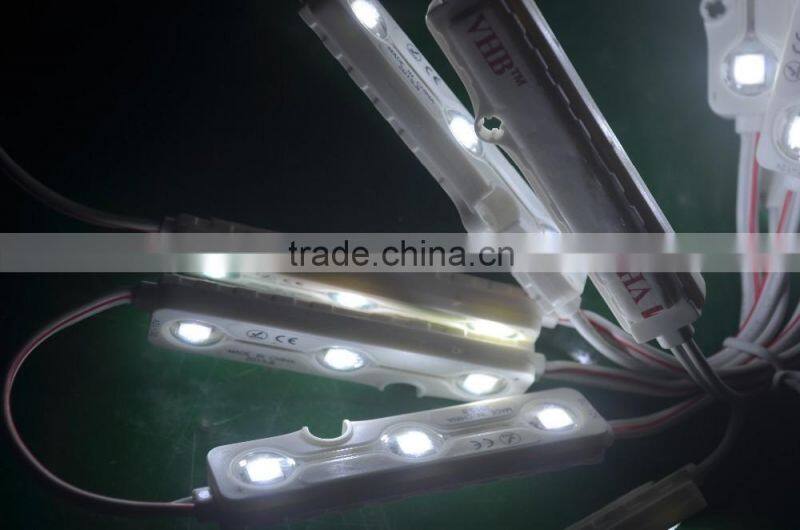

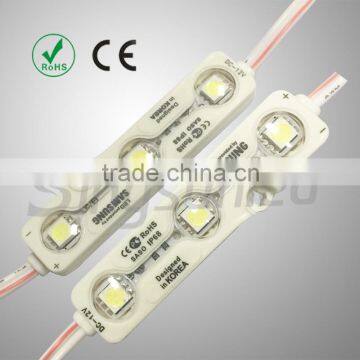

high brightness DC12v waterproof 5050 Samsung led module korea IP68
| Model No. | STF-K-5050 |
| Light Source | 5050 SMD LED 3 pieces |
| Input voltage | DC 12V |
| Power consumption | 0.72W |
| Current | 0.12A (constant current) |
| Emitting color | White 6000 ~ 6500 K |
| CRI | Ra > 75 |
| Luminous flux | 60 ~ 66 Lm for one module |
| Beaming angle | 120 degree |
| IP rank | IP68 |
| Lifespan | over 50,000 hours |
| Warranty | 3 years |

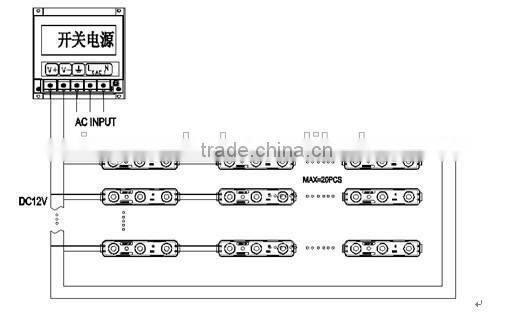

| Max connection | 50 pieces in one line |

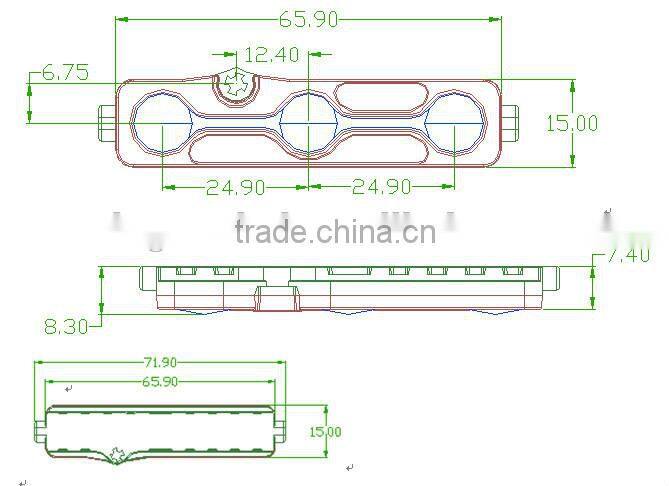

| Dimension | 66*15*7.5 mm |
Features:
Wide applicability, easy to install and maintain
Extremely luminous, with wide viewing angle
Energy saving and environmental friendly
Operating low voltage DC 12V for human safety

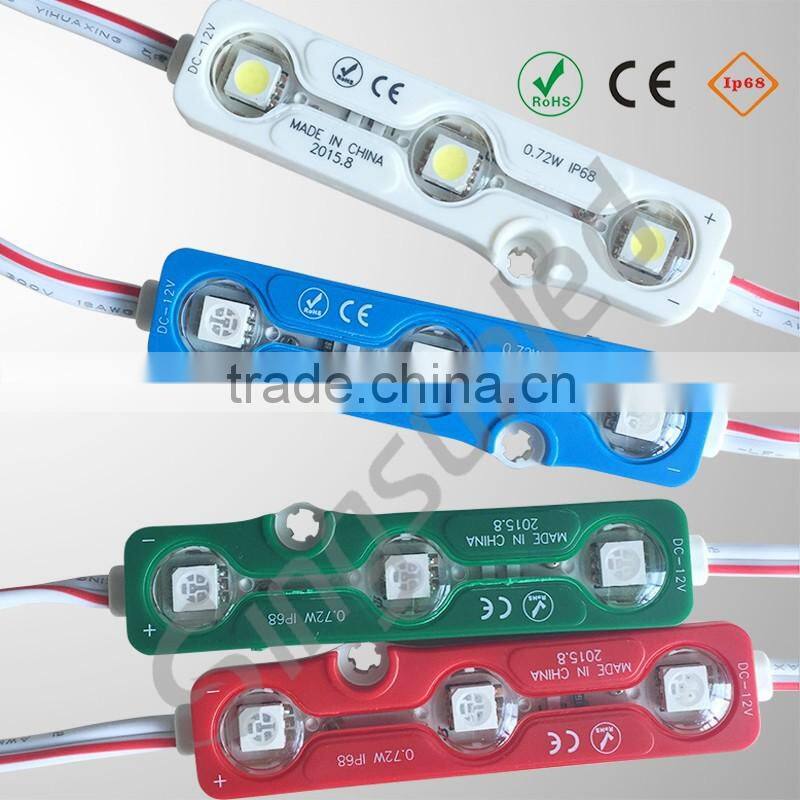

Various colors are available
Very bright and low power consumption
Long lifespan: More than 50, 000 hours
Application:
Idea for in cabinet, furniture, landscape, architectural lighting
Channel-letter backlights, signboard, sign and decoration, and more high luminance efficiency and low power consumption
For cable and fixing hole
Channel letters backlighting
Advertisement signs acklighting
Advertisement light boxes backlighting
CE and RoHs compliant

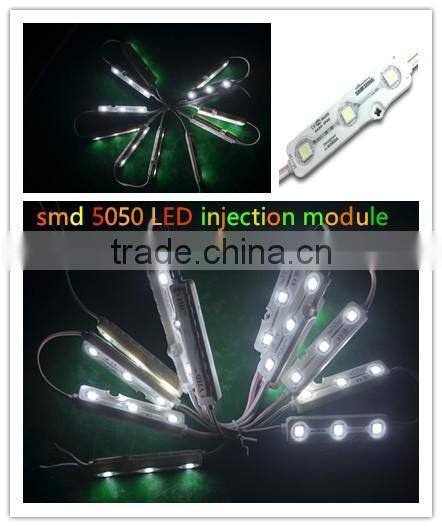

Factory price waterproof IP68 smd 5050 led module
Warmly welcome to send us inquiry or get free samples to check
our quality and service!!!
