5 Years Warranty Top Quality Waterproof Led Module 165 Degree View Angle 2835 Smd Led Module

5 Years Warranty Top Quality Waterproof Led Module 165 Degree View Angle 2835 Smd Led Module thumbnail-1
5 Years Warranty Top Quality Waterproof Led Module 165 Degree View Angle 2835 Smd Led Module thumbnail-2
5 Years Warranty Top Quality Waterproof Led Module 165 Degree View Angle 2835 Smd Led Module thumbnail-3
5 Years Warranty Top Quality Waterproof Led Module 165 Degree View Angle 2835 Smd Led Module thumbnail-4
5 Years Warranty Top Quality Waterproof Led Module 165 Degree View Angle 2835 Smd Led Module thumbnail-5
5 Years Warranty Top Quality Waterproof Led Module 165 Degree View Angle 2835 Smd Led Module thumbnail-6
5 Years Warranty Top Quality Waterproof Led Module 165 Degree View Angle 2835 Smd Led Module photo-1
5 Years Warranty Top Quality Waterproof Led Module 165 Degree View Angle 2835 Smd Led Module photo-2
5 Years Warranty Top Quality Waterproof Led Module 165 Degree View Angle 2835 Smd Led Module photo-3
5 Years Warranty Top Quality Waterproof Led Module 165 Degree View Angle 2835 Smd Led Module photo-4
5 Years Warranty Top Quality Waterproof Led Module 165 Degree View Angle 2835 Smd Led Module photo-5
5 Years Warranty Top Quality Waterproof Led Module 165 Degree View Angle 2835 Smd Led Module photo-6
US$ 0.32 - 0.4 MOQ: 1000 Pieces
Key Specifications
Get Latest Price
Model Number:
STF-T2
Emitting Color:
Other, warm white/nature white/cool white
Luminous Flux(lm):
70lm
Contact Supplier Request Quote Chat Now
Shenzhen Singsunled Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Model Number STF-T2
Emitting Color Other, warm white/nature white/cool white
Luminous Flux(lm) 70lm
Optical Attenuation(%) 3%
Power Other, 0.72watt
Color Rendering Index(Ra) 75
Color Temperature 2700-12000k
Operating Temperature(℃) -20, 60
Storage Temperature(℃) -50, 60
Place of Origin Guangdong, China
Brand Name Singsunled
Certification CE

5 years warranty top quality waterproof led module 165 degree view angle 2835 smd led module



5 years warranty top quality waterproof led module 165 degree view angle 2835 smd led module



5 years warranty top quality waterproof led module 165 degree view angle 2835 smd led module



Features:



1. Adopt TOP 2835 SMD LED, no light spot, with a low lumen recession and good consistency.

2. With a low power consumption and high lumen value, 35-40LM/led, a long life-span, maintenance-free.

3. With a plastic injection technique for outer cover, this unique structure grants a better cooling effect. UL 94V0 ABS.

4. IP Rate: IP65,

5. DC 12V low voltage input, constant current drive method, reliable and safe.

6. Adopt series-parallel connection circuit, 50pcs per string, each module could be singled out.

7. Viewing angle: 165-170°.

8. Five years warranty.





Product Specifications:





LED Type

2835 SMD LED

LED BRAND

Epistar chip from Taiwan

Viewing Angle

165-170°

Luminous Flux(lm)

70LM

LED Qty

3 pcs

 Life Span

50,000 H

Working Voltage

DC12V

Consumption

0.72watt

Driving Method

constant current

Stand Length In Serial Connection

50pcs

Maximum Length In Serial Connection

≤50pcs

Shell

white ABS

Dimension

50*17*6.5 mm

Available Color

W/WW/CW

Certification

CE&ROHS

Working Temperature

 -20℃ —— +60℃

Store Temperature

 -50℃ —— +60℃

IP Degree

IP65









Package:





Every 20 pcs per a string, every 5 string in an anti-static bag, 4000 pcs per a carton box.  Carton size: 50*35*31.5 cm.

Net Weight: 6.5 g/pc;  325 g/string;  28kg/carton.

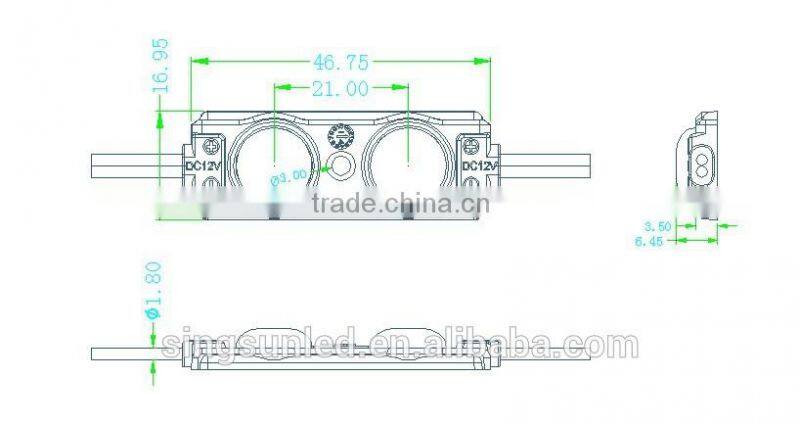

Dimesion Diagram(mm):

5 years warranty top quality waterproof led module 165 degree view angle 2835 smd led module





Application:

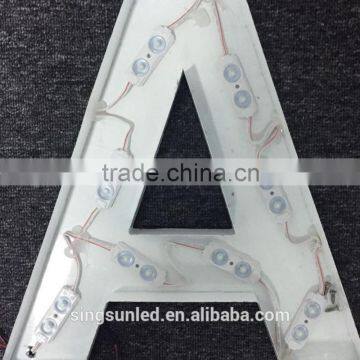

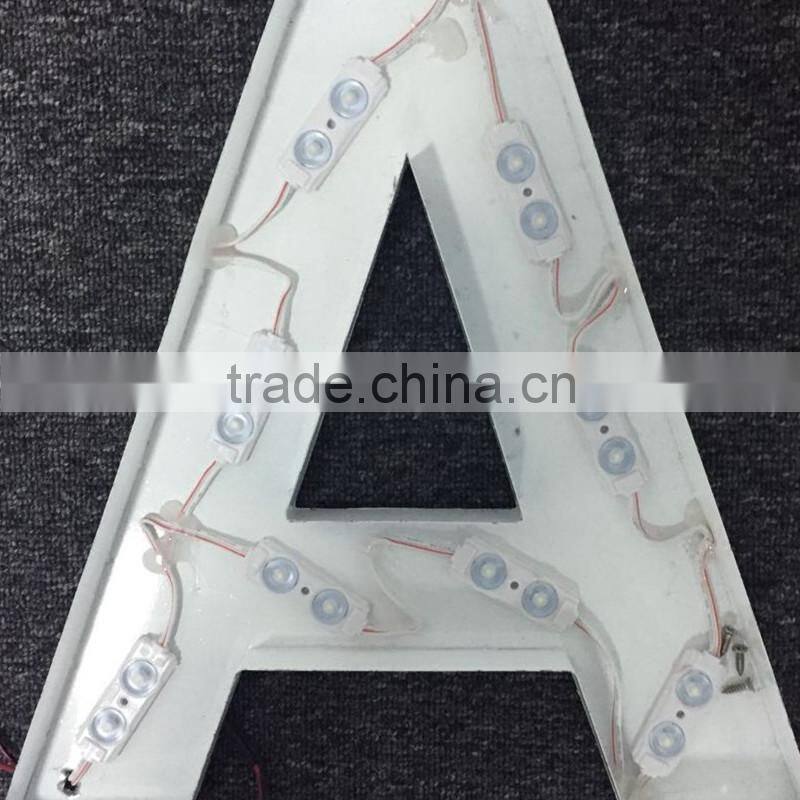

This product is applicable for 6-20cm glowing character, advertisement board, light box or local lighting.



5 years warranty top quality waterproof led module 165 degree view angle 2835 smd led module



5 years warranty top quality waterproof led module 165 degree view angle 2835 smd led module



5 years warranty top quality waterproof led module 165 degree view angle 2835 smd led module





CE & RoHS Certifications:



5 years warranty top quality waterproof led module 165 degree view angle 2835 smd led module



5 years warranty top quality waterproof led module 165 degree view angle 2835 smd led module





Exihibition Pictures:



Russian REKLAMA 2014 (Time: 23-36, September, 2014.  Booth No: FC144)

2014 Hong Kong International Lighting Fair Autumn Edition ( Time: 27-30 October, 2014.  Booth No: CR-A32)



5 years warranty top quality waterproof led module 165 degree view angle 2835 smd led module



 2014 GZ & Shang Hai International Lighting EXPO

5 years warranty top quality waterproof led module 165 degree view angle 2835 smd led module
