Application

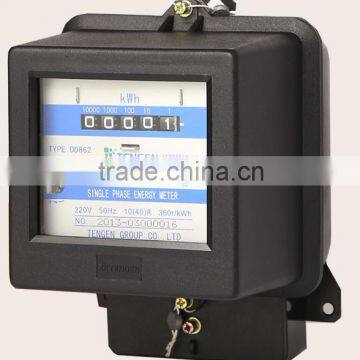

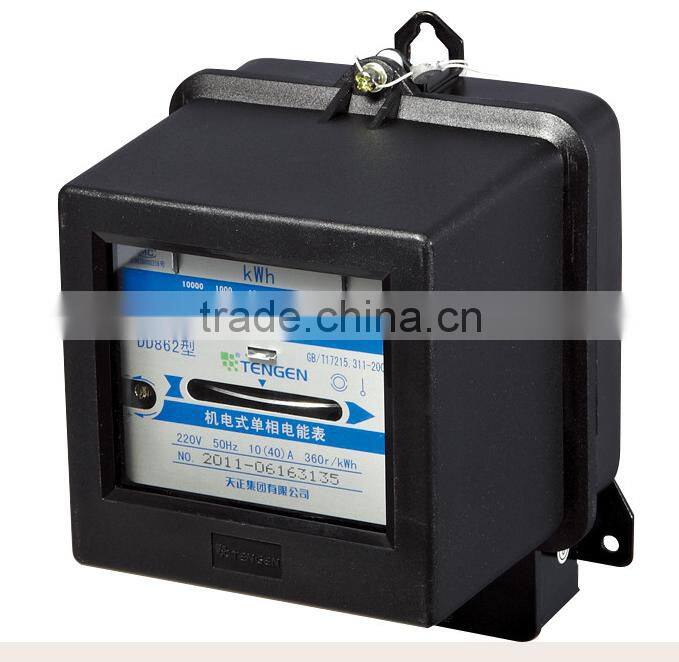

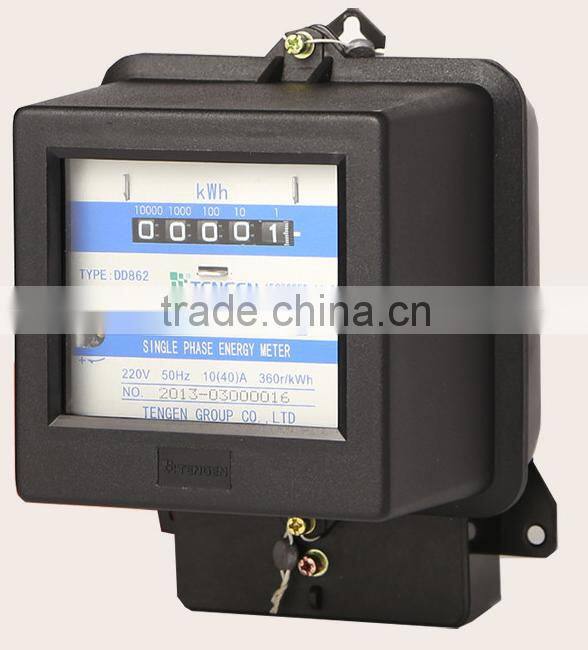

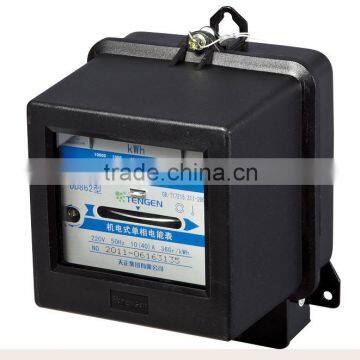

DD862 a single-phase watt-hour meter is induction meter which is applicable to measure the rated frequency 50Hz and power loss in electrified wire netting.The meter has novel design,rational structure and features of large overload,low power loss and long life tec. The product conforms to GB/T17215.311-2008,IEC62052-11-2003 and IEC62053-11-2003 standard in performance.
Main technical parameters
Type |
Accuracy (class) |
Rated voltage(V) |
Rated current(A) |
Overload capacity |
Starting current |
Insulation Performance |
DD862-4 |
2.0 |
220 |
1.5(6),2.5(10),5(20),10(40),15(60),20(80),30(100) |
400%1b |
0.5%1b |
AC voltage 2KV for 1 minutes impulse voltage 6 KV |
DD862-2 |
3(6),5(10),2.5(5) 10(20),20(40), 30(60),40(80) |
200%1b |
||||
DD862a-4 |
1.5(6),2.5(10),5(20) 10(40),15(60) 20(80),30(100) |
400%1b |
||||
DD862a-2 |
3(6),5(10),2.5(5) 10(20),20(40), 30(60),40(80) |
200%1b |

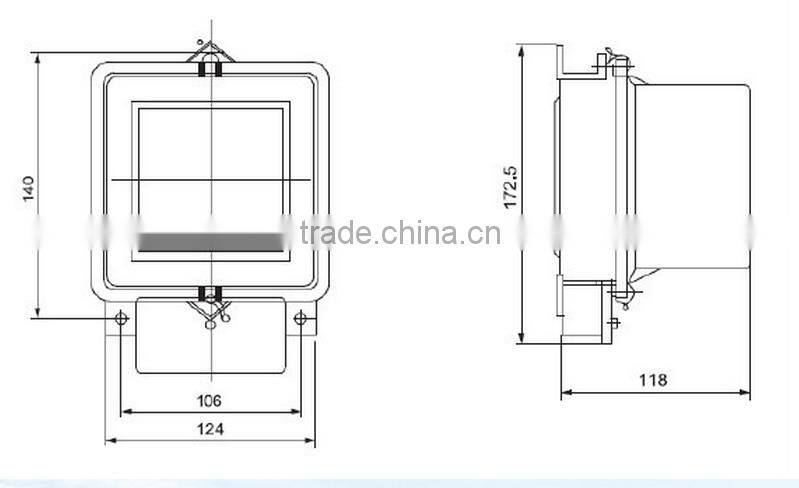

Overall and Installation Dimension
Our company

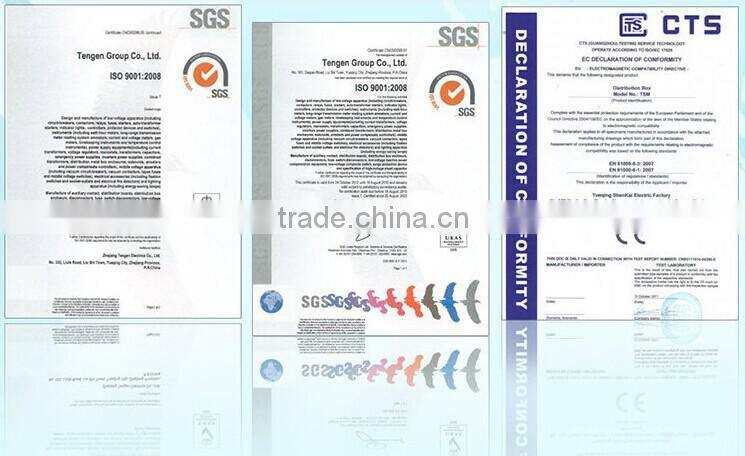

Certification

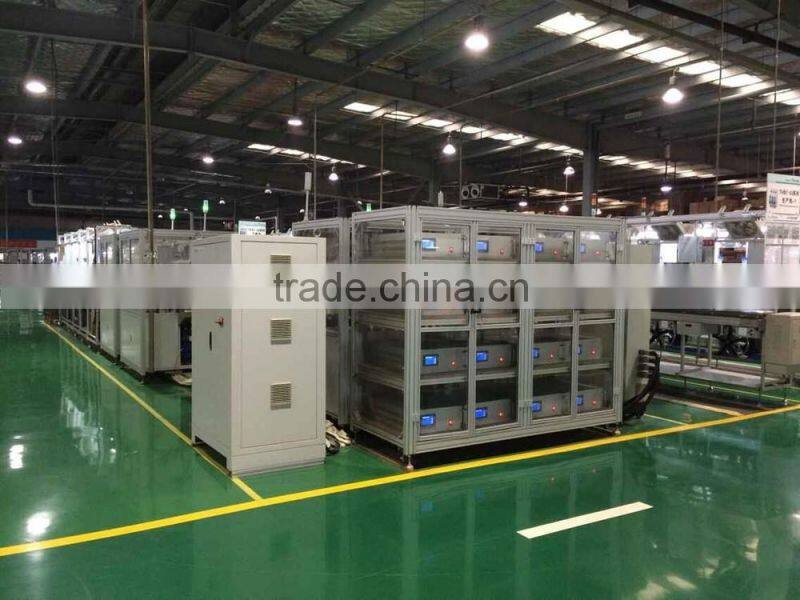

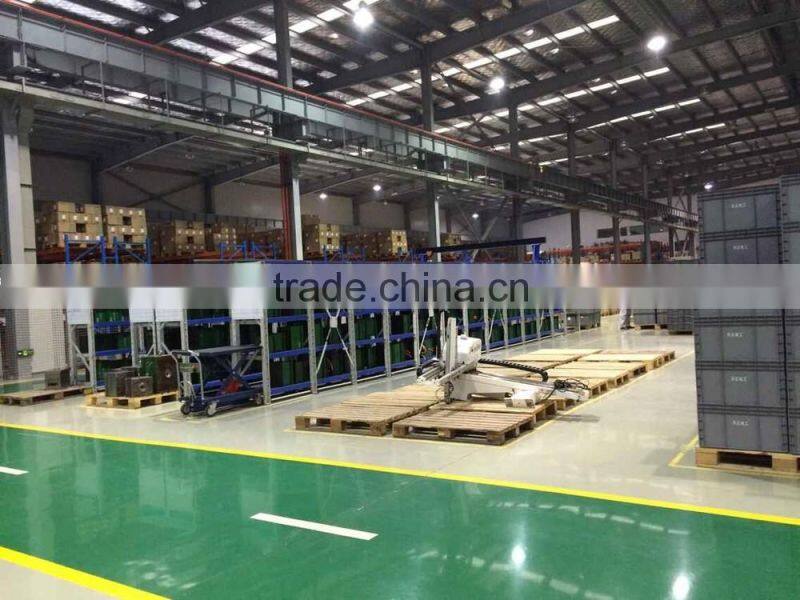

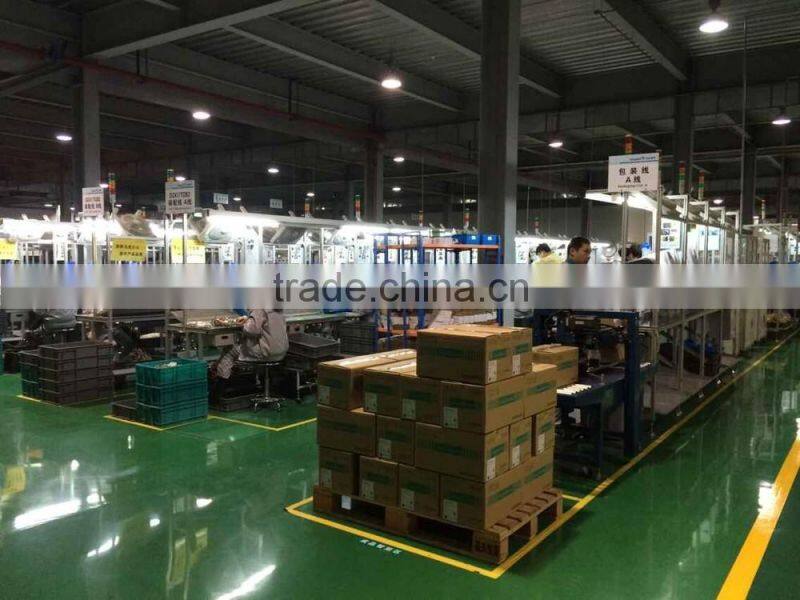

Workshop:
Exhibition
