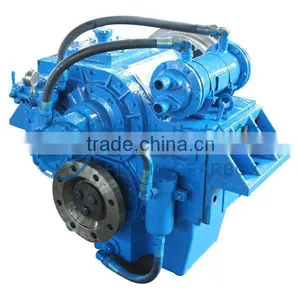

marine gearbox model 600
- 500 Piece / Pieces per Month
- shanghai
- T/T
Product Details
Place of Origin: | China | Brand Name: | FJ | Model Number: | 600 |
Gearing Arrangement: | Helical | Rated Power: | 480-1004kw | Input Speed: | 1000-2100rpm |
Product Description
Specifications
China Fenjin marine gearbox,high quality,low priceMarine gearbox model 600 for marine diesel engines
Marine gearbox model 600 series possess the capabilities of reducing speed, ahead and astern, clutching and disclutching and carrying the propeller thrust. The said gearbox is somewhat new in construction, reliable in operation, smooth in engaging, light in weight, small in bulk, easy in maintenance and durable in application.
The marine gearbox can run eigher in clockwise or anti-clockwise direction so as to form the marine power unit with the engines which rotate in different directions, whereas the ratios in ahead and astern are identical, and can be operated with full load for long hours. Therefore the gearboxes can be coupled with the engines with the same rotation to form left-hand or right hand power unit.
Marine gearbox 600:
1.Transmission mode: External cylindrical helical gear drive.
2.Clutch: Hydraulically-controlled wet-type multi-plate frictional clutch.
3.Input coupling: High flexible coupling or rubber block coupling.
4.Input speed: 1000-2100rpm
5.Ratios and the transmission capacity:
with high flexible coupling: | |
Ratio | Trans.capacity kW/(rpm) (HP/rpm) |
2.0:1 | 0.48(0.65) |
2.48:1 | 0.48(0.65) |
3:1 | 0.48(0.65) |
3.58:1 | 0.44(0.60) |
3.89:1 | 0.40(0.55) |
with rubber clock coupling | |
Ratio | Trans.capacity kW/(rpm) (HP/rpm) |
2.0:1 | 0.44(0.60) |
2.48:1 | 0.44(0.60) |
3:1 | 0.44(0.60) |
3.58:1 | 0.40(0.55) |
3.89:1 | 0.36(0.49) |
|
|
6. Direction of rotation of input shaft(facing the output end): Anticlockwise
7. Direction of rotation of input shaft at “ahead” position: Contrary to that of input shaft
8.Rated Propeller thrust:90,000N
9.Hydraulic pressure:1.1-1.3MPa
6.Overal dimension(L*W*H): 907X1214X1126mm
7.Net weight: 1300kg;
