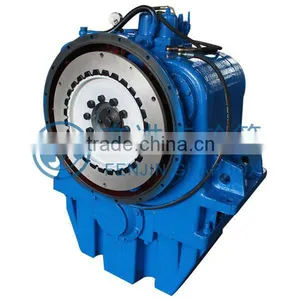

diesel engine gearbox,marine engine transmissions,marine transmissions,marine gear,marine gearbox china,gearbox chinaMarine gearbox model T400/1 for Marine Diesel Engines
Marine gearbox model T400/1 is specially designed on customer's request for increasing dragging capacity of trawlers. It is a modified type of T400(A) marine gearbox, which covers seven ratios, that is, 8.15: 1, 8.69: 1, 9.27: 1, 10.6: 1, 11.37: 1 and 12: 1. And products with other ratios are also available on customer special request.
Marine gearbox T400/1:
1.Clutch: Hydraulically-controlled wet-type multi plates.
2.Input coupling: High flexible coupling.
3.Input speed: 1000-2100rpm
4.Center distance:465mm
5.Ratios and the transmission capacity(with high elastic coupling):
Practical ratio |
Trans.capacity kW/r*pm-1 (ps/r*pm-1) |
8.15:1 |
0.331(0.45) |
8.69:1 | |
9.27:1 | |
9.94:1 |
0.316(0.43) |
10.60:1 |
0.297(0.0.4) |
11.37:1 |
0.274(0.37) |
12:1 |
0.262(0.356) |
Note: Both ratio and trans.capacity of astern are identical to those of ahead
6.Direction of rotation of input shaft(facing the output end): Anticlockwise
7.Direction of rotation of output shaft:Contrary to that of input shaft
8.Rated propeller thrust:120,000N
9.Mechanical efficiency:≥96%
10.Time required for reversal:≤10S
11.Working oil pressure:1.4-1.6MPa
12.Oil grade: SC/CC30,SAE30;
SD/CC40, SAE40(for summer in the torrid zone)
13.Max.oil temp.:≤80°C
14.Cooling water consumption:≥4t/h
18.Permissible angle of inclination: 10°longitudinally;
15°transversely
19.Overhaul:over 10,000h
20.Overal dimension(L*W*H): 869X920X1327mm
21.Net weight: 1500kg;
