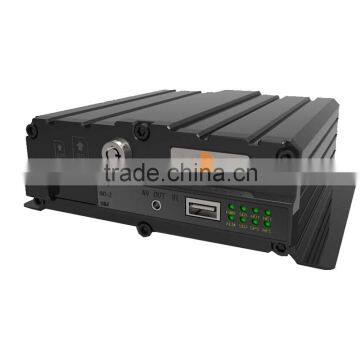

Help Center4 CHANNEL GPS 3G 4G SD CARD Car DVR / MDVR for Vehicle or Car,720P Car DVR MDVR
Related Products
-
4ch sd Card Mobile Dvr,small Size,GPS,3G WIFI Mobile DVRNegotiableMOQ: 1 Piece -
128G Dual sd Card Mobile Dvr , City Bus 4CH SD Card Mobile Dvr Surveillance SystemNegotiableMOQ: 1 Piece
-
8 Channels 960H Hard Disk Mobile DVR/NVR,MDVR8108HPNegotiableMOQ: 1 Piece
-
128G Dual SD Card MDVR Surveillance Camera SystemNegotiableMOQ: 1 Piece
-
8-CH HDD Car Mobile DVR Mobile Hdd DvrNegotiableMOQ: 1 Piece

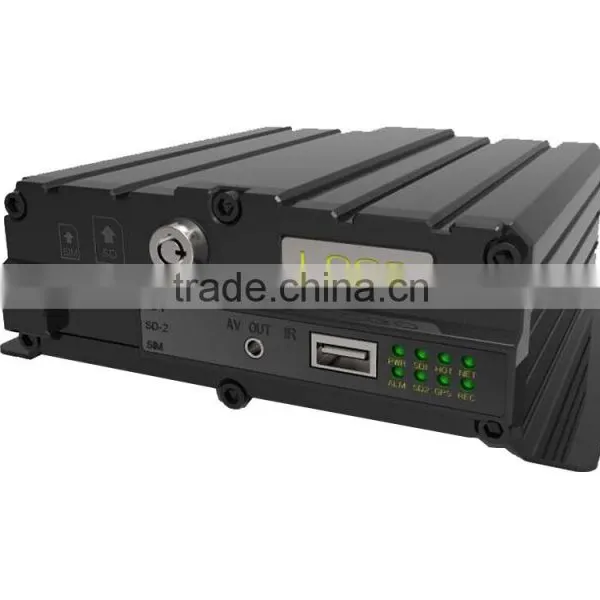

HD 4 Channels 960H 2*SD card Mobile DVR
4x720P AHD camera support;
High-performance SD card mobile DVR;
Connect acceleration sensor, temperature sensor, oil amount, control panel and other peripherals through the preset interface;
With aviation connector, stable and reliable, using time longer.
Support 4CH audio & video;
3G/4G, WIFI, GPS for optional ;
Support PTZ local and remote control;
Support dual SD cards, support USB interface
It can install all kinds of vehicles, such as, taxi, bus, school bus, truck, trailer, car, SUV, ambulance and so on.
| Industrial Design | ARM Linux | |
| GUI | Setup system parameters through the Panel controller | |
| Language | Chinese, English, other(optional) | |
| Security | User password management | |
| Video and preview | Video input | 4 channel input; 1 channel output; 1.0Vp-p, 75Ω |
| OSD | Overlays letters… like date & time information and vehicle ID into video streaming | |
| Video Compression Criteria | H.264.With Hisilicon technology | |
| Dual stream | Support.(High bit-rate stream used for local HD stroge,low bit-rate stream used for network transmission ) | |
| Resolution | Support CIF,HD1,D1,720P | |
| Video quality | 1-5 levels, 1 is the highest level and 5 is the lowest level | |
| Video Bit Rate | CIF: 256Kbps ~ 1.5Mbps, 5 quality level support | |
| D1: 800Kbps ~ 3Mbps, 5 quality level support | ||
| Preview | Support 1 channel and 4 channels preview. PAL: 25Frame/s NTSC:30Frame/s;720P PAL:200fps,NTSC:240fps | |
| Audio | Audio Input | 2 channel input; |
| Audio Output | 1 channel output | |
| Compression | G.726 | |
| Record | Storage | SD card, Support dual SD cards, max 128G, support SDHC standard, record one full change anotheragain, delete circularly(delete video is the earliest time) |
| File Type | H.264 ASF,FAT32 | |
| Recording Mode | Default auto recording after power on, support timed recording, alarm recording. | |
| Video Search | Search video by time, type (normal or alarm), target SD card | |
| Video playback | Support 1 to 4 channels playback simultaneously | |
| Support forward and backward at the speed of: x2, x4, x8, x16. | ||
| Alarm | Alarm input | Support up to 8 channels alarm input |
| Alarm record | Include the recording within 10 seconds ahead of the alarm starting, and the recording after | |
| alarm dynamically adjusted, the range:30s~30 minutes | ||
| Alarm of storage | Support storage alarm | |
| Alarm of video loss | Support | |
| Communication | Serial Interface | Support 2 RS232 and 2 RS485 |
| Interface | Network interface | RJ45,10M / 100 M adaptive network interface, support 3G routing |
| G-Sensor | Built-in G-Sensor | |
| Wireless transmission | 3G wireless transmission module, WCDMA, CDMA2000, TD-SCDMA system optional (optional), Compatible with GPRS, EDGE; | |
| Support up to 4G;(optional) | ||
| WIFI Optional | ||
| GPS | GPS or BeiDou ;(optional) | |
| Upgrade | Upgrade by SD card or USB | |
| External Interface | Support data export to USB, Interface charge | |
| Power&consumption | Power management | 1.ACC ON/OFF |
| 2. System power off according to the delay time | ||
| 3.Timing ON/OFF | ||
| With overload protection, under voltage protection, short protection, | ||
| Power input | DC:+8V ~ +36V | |
| Power output | +12V@5*0.5A; | |
| Power consumption | The normal state<10W;Standby 0W | |
| Working | Operating temperature | -25℃ ~ +80℃ |
| environment | Operating Humidity | 10% to 95% |
| Dimensions | 160(W) x 50(H) x 140(D) mm | |
WE have got good reputation from all over the world.
INTERSEC dubai,MIPS Moscow,ISAF turkey,Securex Poland.etc.....
Installation picture
CMS server(Center Management Software)
CMS viewer( Remote Live view in realtime recording)
PAS(Playback Analysis Software)
E-mark for E-9 certificate
CE FCC ROHS
Temperature&humidity&Shock test
- Factory direct professional and high quality products for fleet management;
- Intelligent vehicle monitoring solution provider;
- OEM/ODM projects are welcome with technology support;
- Best before and after-sales services.
- Factory direct professional and high quality products for fleet management;
- Intelligent vehicle monitoring solution provider;
- OEM/ODM projects are welcome with technology support;
- Best before and after-sales services.
Our service1.Any inquiries will be replied in 24 hours
After-sale Services:All our products have 15 months warranty.
Remark: 1,can design and print packing box according to your requirements. 2,can put your logo&modelNo. on the cameras and packing box
