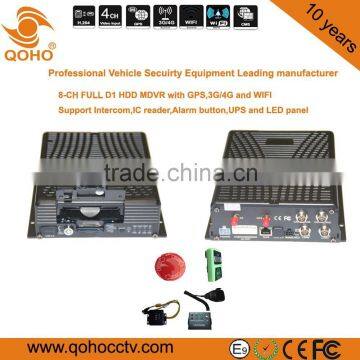

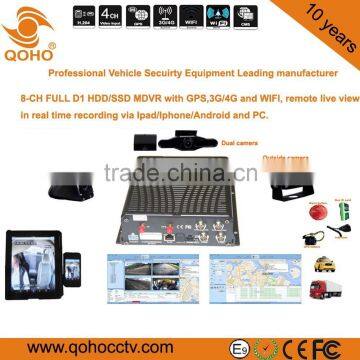

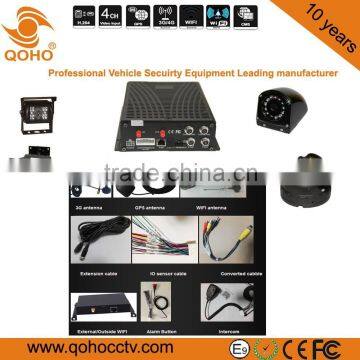

8-CH HDD Car Mobile DVR Mobile Hdd Dvr

8-CH HDD Car Mobile DVR  mobile hdd dvr

Description:

• 8-CH 2TB HDD/SSD Mobile DVR;
• High definition real-time recording with 8 x analog cameras + 2 x 720p IP camera, or 8 x analog camera + 2 x 1080p IP cameras, IPC:12V power supply;
• Synchronized 8 channels video & 2 channels audio recording and playback;
• 8 channels D1 Full frame recording;
• Built-in 2.5 inch hard disk, 2TB storage, excellent shock absorption design;
• Build-in G-sensor module;
• Built-in GPS module;
• Built-in temperature sensor;
• Built-in 4G module;
• Built-in 1 SD card slot for data backup in case of hard disk drive error;
• Two USB2.0 high speed interface, the front one to derive video files & upgrade software, the back one to connect waterproof / fireproof "black box" for data recorders. The back one is optional.
• 8 seconds delay power-off for data protection;
• Hard disk low-temperature startup, automatic heating;
• Operating temperature -40℃ ~ +80℃;
• 8V-36V wide voltage power supply;
• Application:Bus, taxi, goods van, school bus, police car, escort car, tanker truck etc.

Product Technical parameters:

MDVR Electric Specifications

WE have got good reputation from all over the world.

INTERSEC dubai,MIPS Moscow,ISAF turkey,Securex Poland.etc.....

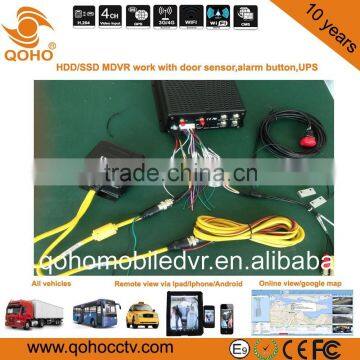

Installation picture

CMS server(Center Management Software)

CMS viewer( Remote Live view in realtime recording)

PAS(Playback Analysis Software)

E-mark for E-9 certificate

CE FCC ROHS

Temperature&humidity&Shock test

FAQ:

Q: Deviation of GPS location on map?
A: It means the signal is valid if the GPS module already positioned, there may many reasons for the deviation, such as government restrictions, permissible error, GPS signal interruption, etc; the actual satellite map may have deviation for security reasons, general map can solve the problem by using GPS correction.3G wireless module.

Q: How to do when the video input interface is different from the camera output interface?
A: The car uses 4PIN type while camera uses BNC or aviation head type, if not in correspondence, please use conversion head for connection or wiring based on standard corresponding according to the cable sequence defined.


Q: When 3G has neither report nor video , what should be done first?
A: Press INFO key to enter the system information page, check whether the SIM card exists and view the signal strength as well as dial-up status, whether the antenna is in good contact, and then check the SIM to see whether it is out of traffic, the most basic judgment is to replace the SIM card. If the dial up failed with signal, then check whether the settings of center number and the port are correct. Moreover check whether the device number of the product is already occupied.

Q: 3G signal is intermittent, video is jammed?
A: At present the signal coverage of WCDMA and EVDO is rather wide, however, there are some mountainous districts without signal coverage, and some suburban areas have weak signal due to the local network constraints, then it will be jammed during watching of video, or video cannot be watched at all, the greatest impact of this situation is from the local network; Moreover check whether the frame rate setting of sub-stream is too high, because the video may also occur such situation when the network is poor and frame rate setting is high.

Q: Why the vehicle and video cannot be seen in CMSviewer client when the device has been started?
A: At first make sure the central registration server is switched on and on the net, then check whether the host device number has been occupied to cause conflict, secondly check whether the settings of server-centric IP and port are correct; devices report to the center via the built-in 3G module or via WIFI. If via built-in 3G, please check whether selected the correct type of built-in 3G module, for example, WCDMA and EVDO module needs the support from corresponding SIM card, check whether the antenna is in good contact; If it still can not report when above all are checked, enter into the system information page to view dial-up. If dial-up is not successful, look up whether the setting of data access point and center number is correct. If all ultimately fail, please collect as much information as possible to submit to the technical supporting staff for analysis, the more data provided, the more convenient for technicians to solve the problem.

Q: The device is online, but why can I not see the video image?
A: Please set lower sub-stream to transmit image, the blocked or slow transmission speed situation may occur when the sub-stream frame rate is set very high and be affected by network uploading limit; poor network signal or intermittent will seriously affect the video transmission.

Q: The device is properly reported on CMSviewer, but the videos cannot be seen after using for some time?
A: Firstly check whether the host side displays dialing, if it keeps the dialing status, it may be because the flow of the SIM card has run out, replace the SIM card to test; Secondly query whether the host device number has been modified by the driver, the host with modified device number needs to be resubmitted to add vehicle information; thirdly, if it still does not work by changing the card, it will need to check whether the host’s 3G module fails.
