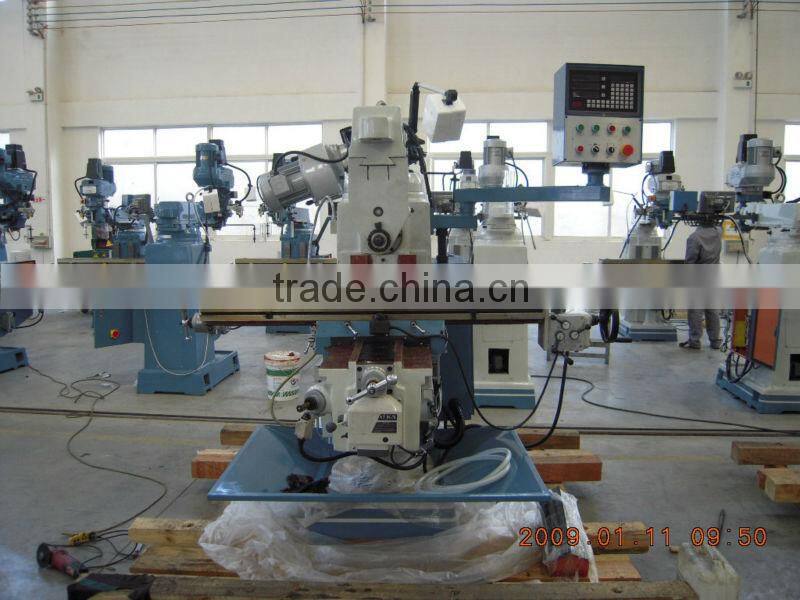

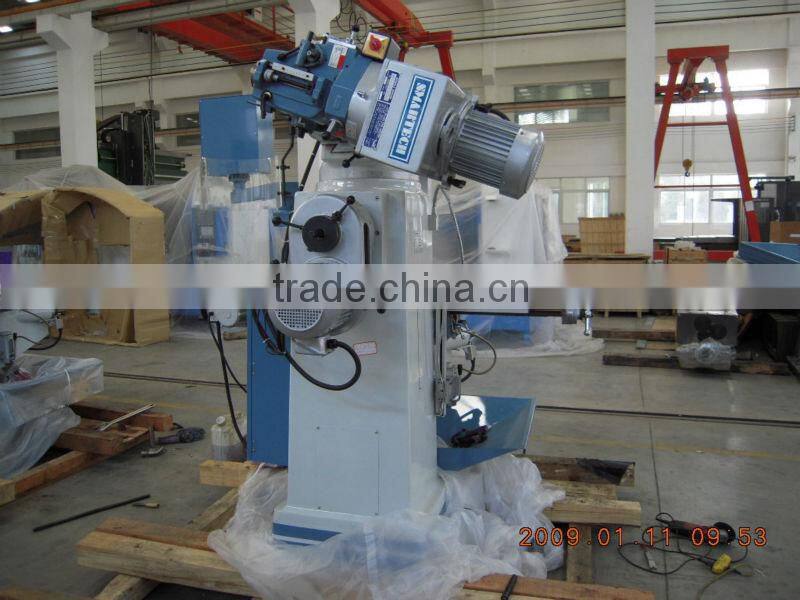

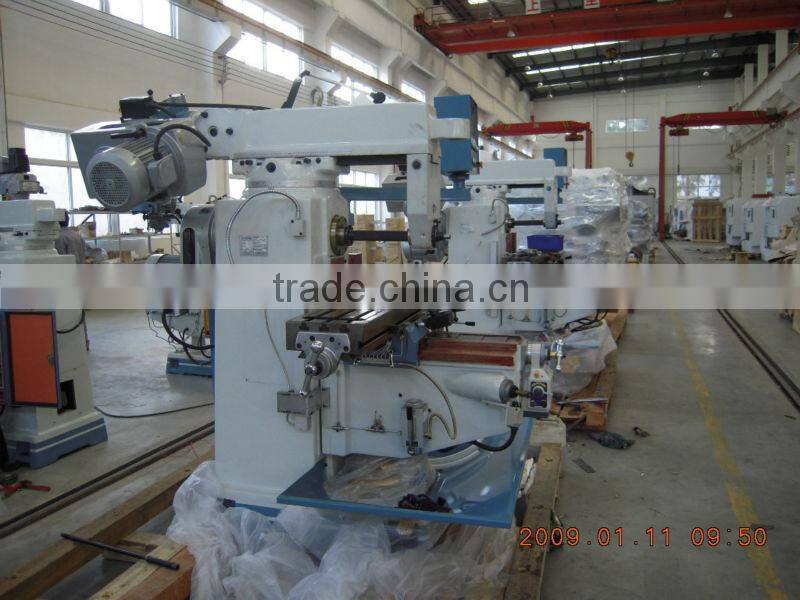

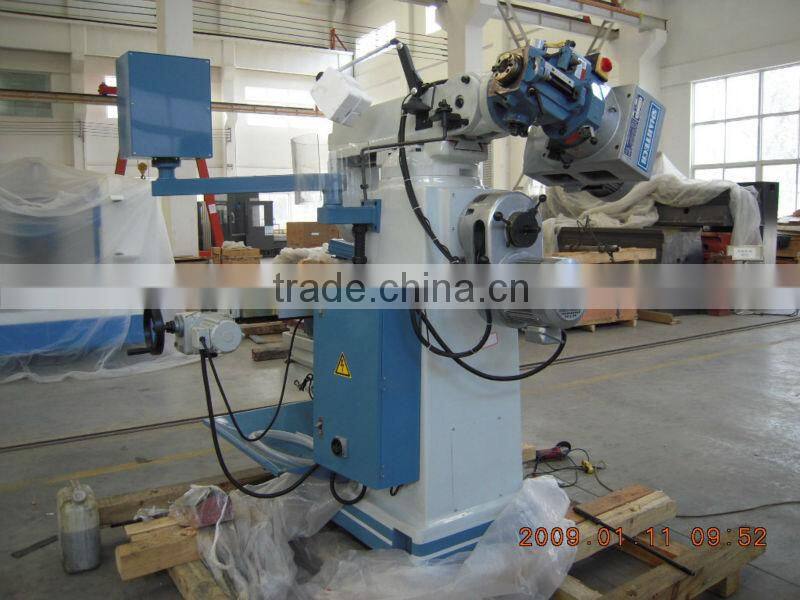

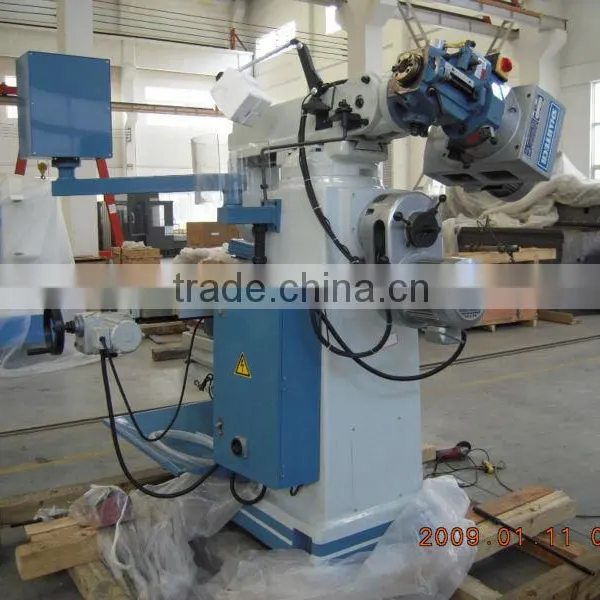

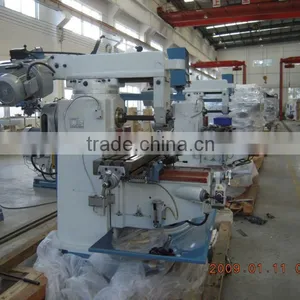

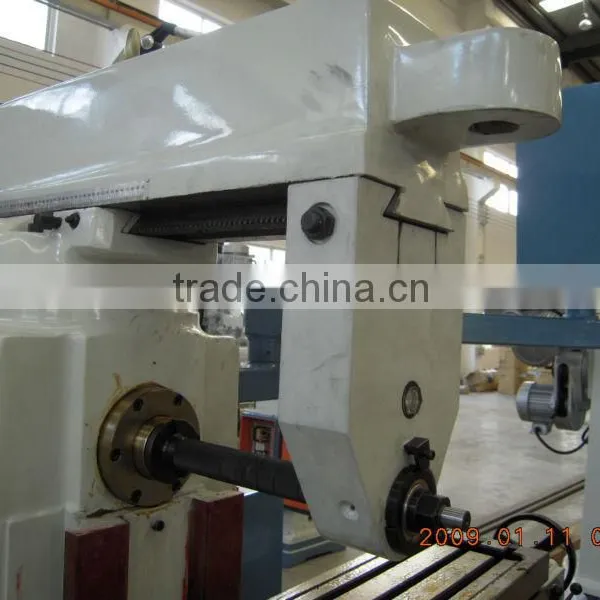

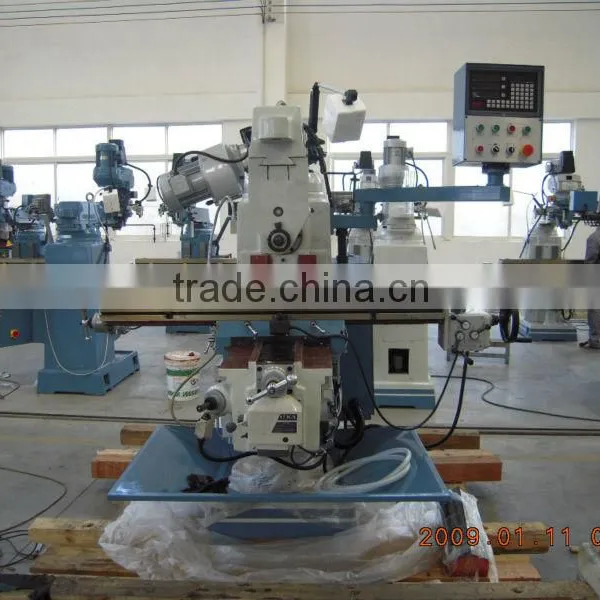

Universal Milling MachineVERTICAL & HORIZONTAL MILLING MACHINE SM-4SVH
With 2 spindles machining at the same time , improved
SMARTECH VERTICAL & HORIZONTAL MILLING MACHINE
- CHARACTERISTICS:
1) Meehanite casting body;
2) Working table and all slide ways are hardened and grounded as well as superior turcite-B coated on slide ways, ensure high serve sensitivity and accuracy;
3) Completed with power evaluating system;
4) Automatic centralized lubrication system, ensure supplied lubrication condition.
- STANDARD ACCESSORIES:
1 Coolant system;
2 Halogen working lamp;
3 16mm draw bar;
4 Luxury electric control box with CE license components;
5 Guideway rubber cover (front & back);
6 Tool and tool box;
7 English operation manual, packing list and inspection certificate;
8 Power table elevating system;
9 Splash base pan;
10 Spindle protection cover with micro switch.
- OPNTIONAL ACCESSORIES:
1 SINO DRO SDS2 KA300 SCALE 470X970MM ;
2 NT40 CHUCK COLLET (7PCS/SET) ;
3 W/3C-1001GEAR TYPE POWER FEED .
- SPECS:
MODEL |
SM-4SVH |
Slide ways Structure |
Y/Z: |
Table Size |
1370X250mm |
|
Travel |
X 1000mm |
Y 420mm | |
Z 420mm | |
Quill |
127mm |
Ram |
580mm |
Quill Diameter |
86mm |
Quill Feed Rate |
0.04, 0.08, 0.15mm |
Spindle Motor |
2.25kw (3HP) |
Spindle Taper |
R8/NT30/NT40 |
Spindle Speed |
16 steps: 80-5440rpm |
Head Tilt Angle |
B&F ±45°, R&L ±90° |
Dist. Table-Spindle |
0-420mm |
Dist. Column-Spindle |
105-685mm |

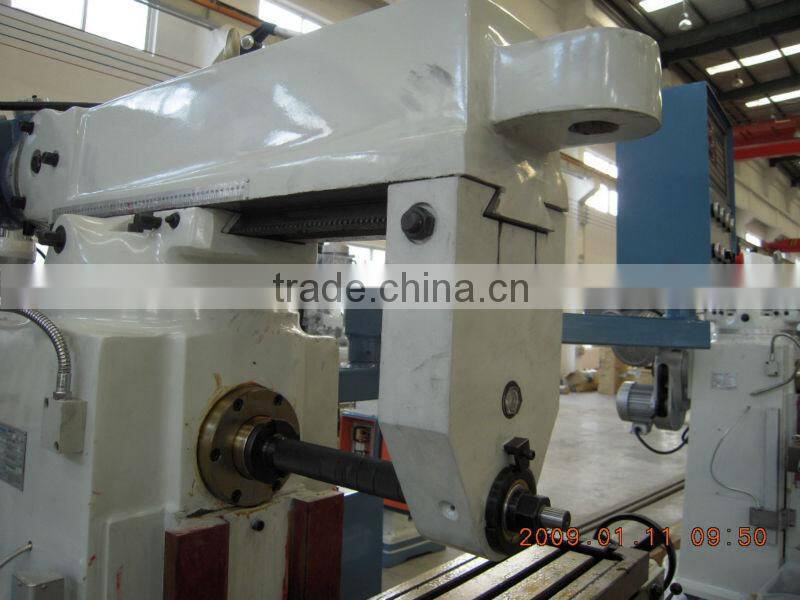

Horizontal Spindle Motor |
2.25kw |
Horizontal Spindle Taper |
NT40 |
Horizontal Spindle Speed |
80-5440rpm |
Dist. Horizontal Center-Table |
0-200mm |
Dist. Horizontal Center-Ram |
390mm |
Machine Weight |
2000kgs |
Dimension |
165X200X223CM |
