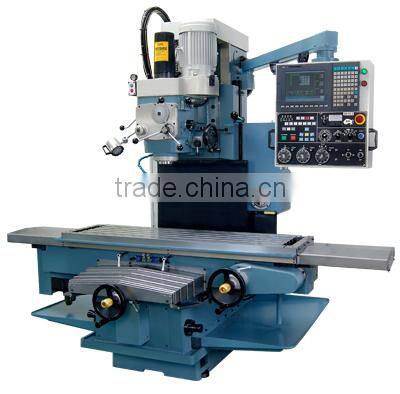

NC Vertical and Horizontal Milling Machine
US$ 1 - 2
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Taiwan, China
Brand Name:
SMARTECH
Payment & Shipping
Payment Methods:
Port of Shipment:
Taiwan
Delivery Detail:
Delivery time depends on order quantity.
Related Products
Condition
New
Place of Origin
Taiwan, China
Brand Name
SMARTECH
Model Number
SM-2H
Type
Universal
CNC or Not
CNC
Voltage
380 V
Certification
ISO
Warranty
one year
Specifications
Vertical and Horizontal Milling MachineBT NT#40
Square Thread Screw 1: 10 Reducer Servo Feeding
Vertical Travel: 380 mm
SMARTECH VERTICAL & HORIZONTAL MILLING MACHINE
- CHARACTERISTICS:
Horizontal Type Milling Head
Specifications: BT NT#40
Square Thread Screw 1:10 Reducer Servo Feeding (stepless)
Vertical Travel: 380mm
Slide Way Width: 280mm
Spindle Speed: 12 steps:
57—1227 RPM, 12 ranges of speed
Vertical Feed Speed:
Servo-driven,
fast and variable feed speed (10—3,000 rapid Feed)
Spindle Moto: 5 HP/ 4P/ 8P
- SPECIFICATIONS OF SM-2H:
| Specification / Model | OX-2H |
| Table size | 1500 x 400(mm) |
| Longitudinal travel | 1300 mm |
| Cross travel | 530 mm |
| Slide high | MAX 700 mm |
| Y slide way width | 620 mm |
| Slide way width | 420 mm |
| Spindle taper | NT#40(BT) |
| Spindle motor | 5HP / 4P |
| Spindle speed | 70~3540 RPM |
| Feeding speed | 10~5000(mm/min) |
| Ballscrew | Ø32 mm P=5 C5 |
| A X B X C X D | 1650 x 1584 x 2333 x 2650 |
| E | 2429 mm |
| F | 100~700 mm |
| G | 530 mm |
| H | 35~570 mm |
| I | 850 mm |
| K | 400mm |
| L | 50mm |
| Net weight | 3500 kgs |
