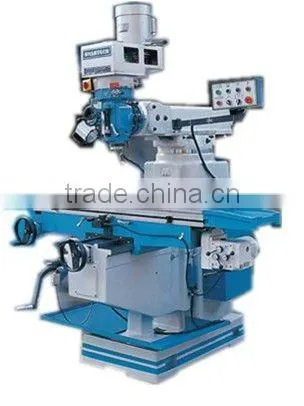

TURRET MILLING MACHINE SM-5SLB

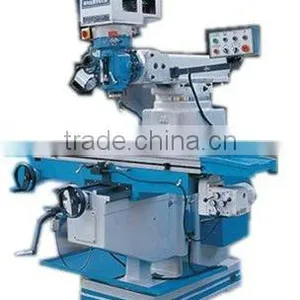

TURRET MILLING MACHINE SM-5SLB thumbnail-1
TURRET MILLING MACHINE SM-5SLB photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Yunnan, China
Brand Name:
SMARTECH
Contact Supplier Request Quote Chat Now
Smartech Machinery & Equipment Co., Ltd.(Shenzhen)
Payment & Shipping
Payment Methods:
Port of Shipment:
SHENZHEN
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Place of Origin Yunnan, China
Brand Name SMARTECH
Model Number SM-5SLB
Type Vertical
CNC or Not Normal

Specifications

SMARTECH TURRET MILLING MACHINE SM-5SLB
Low price
Good performance
Rigid structure
Precise

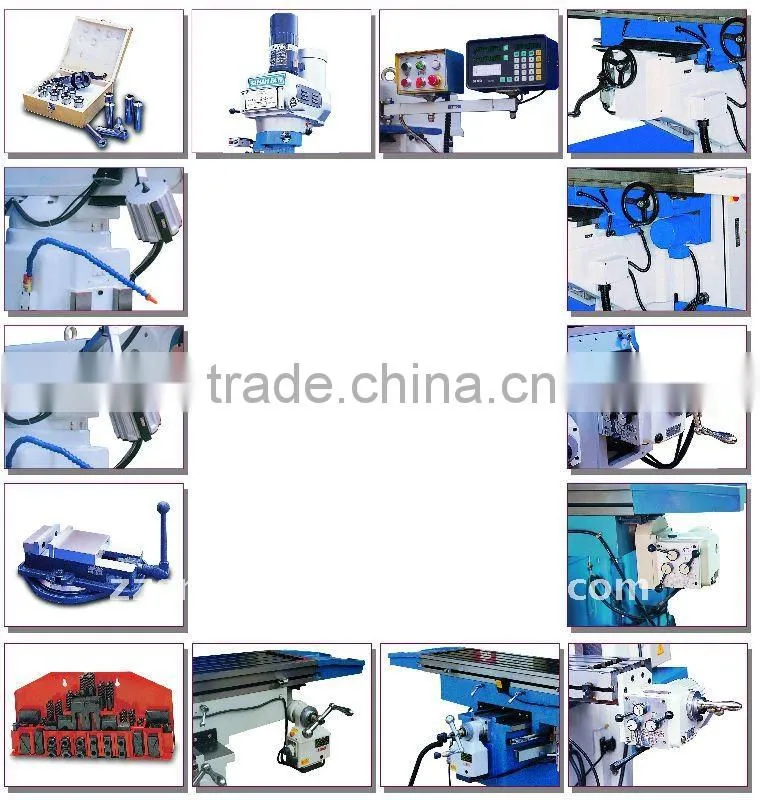

  • STANDARD ACCESSORIES:

1     Coolant system;

2     Halogen working lamp;

3     Draw bar;

4     Luxury electric control box ;

5     Way rubber cover (front & back);

6     Tool and tool box;

7     English operation manual, packing list and inspection certificate;

8     Power table elevating system;

9     Splash base pan;



  • OPNTIONAL ACCESSORIES:

1     SINO DIGITAL READ OUT SYSTEM (2-AXIS OR 3- AXIS);

2     CHUCK COLLET  ;

3     COLLANT SYSTEM

4     LUXURY HALOGAN WORKING LAMP

5     6 ANGLE LOCK MACHINE VISE

6     58PCS CLAMPING KIT SET

7      X-AXIS ELECTRIC POWER FEED UNIT

8      Y-AXIS ELECTRIC POWER FEED UNIT

9      3C-1005 X-AXIS GEAR TYPE POWER FEED UNIT

10    3C-1002 Y-AXIS GEAR TYPE POWER FEED UNIT

11    X-AXIS INVERTER MOTOR VARIABLE FEED SYSTEM

12    Y-AXIS INVERTER MOTOR VARIABLE FEED SYSTEM

13    AIR POWER DRAW BAR

  • SPECS:

MODEL

SM-5SLB

Slide ways Structure

Y/Z:

Table Size

1370X330mm



Travel

X 1014mm

Y 420mm

Z 360mm

Quill

127mm

Ram

584mm

Quill Diameter

105mm

Quill Feed Rate

0.04, 0.08, 0.15mm

Spindle Motor

3.75kw (5HP)

Spindle Taper

NT40

Spindle Speed

10 steps: 60-3600rpm

Head Tilt Angle

B&F ±45°, R&L ±90°

Dist. Table-Spindle

100-500mm

Dist. Column-Spindle

172-756mm

Machine Weight

2100kgs

Dimension

235X184X235CM





TURRET MILLING MACHINE SM-5SLBTURRET MILLING MACHINE SM-5SLBTURRET MILLING MACHINE SM-5SLBTURRET MILLING MACHINE SM-5SLBTURRET MILLING MACHINE SM-5SLBTURRET MILLING MACHINE SM-5SLB
