Turret Milling Machine SM-4VSLB

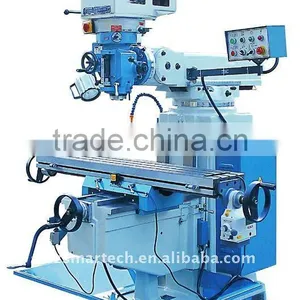

Turret Milling Machine SM-4VSLB thumbnail-1
Turret Milling Machine SM-4VSLB photo-1
US$ 5,000 - 7,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
China
Brand Name:
SMARTECH
Contact Supplier Request Quote Chat Now
Smartech Machinery & Equipment Co., Ltd.(Shenzhen)
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen (or others)
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Place of Origin China
Brand Name SMARTECH
Model Number SM-4VSLB
Type Vertical
CNC or Not Normal
Voltage 380V
Power(W) 3.75 kW (spindle)
Dimension(L*W*H) 2000*1700*2450
Weight 1750 kg
Certification ISO
Warranty one year
After-sales Service Provided Overseas service center available

For more information please visit





  • STANDARD ACCESSORIES:

1     Coolant system;

2     Halogen working lamp;

3     Draw bar;

4     Luxury electric control box ;

5     Way rubber cover (front & back);

6     Tool and tool box;

7     English operation manual, packing list and inspection certificate;

8     Power table elevating system;

9     Splash base pan;



  • OPNTIONAL ACCESSORIES:

1     SINO digital read out system (2-axis OR 3- axis)

2     Chuck collect set

3     Coolant system

4     Luxury halogen working lamp

5     6 angle lock machine vise

6     58pcs clamping kit set

7      X-axis electric power feed unit

8      Y- axis electric power feed unit

9      3C-1001 X-axis gear type power feed unit

10    3C-1002 Y- axis gear type power feed unit

11    X-axis inverter motor variable feed system

12    Y- axis inverter motor variable feed system

13    Air power draw bar

  • SPECS:

MODEL

SM-4VSLB

Slide ways Structure

Y/Z: Square

Table Size

1370X250mm



Travel

X - 1000mm

Y - 420mm

Z - 420mm

Quill

127mm

Ram

580mm

Quill Diameter

105mm

Quill Feed Rate

0.04, 0.08, 0.15mm

Spindle Motor

3.75kw (5HP)

Spindle Taper

NT40

Spindle Speed

Variable: 50-3750rpm

Head Tilt Angle

B&F ±45°, R&L ±90°

Dist. Table-Spindle

100-520mm

Dist. Column-Spindle

105-685mm

Machine Weight

1750kgs

Dimension

200X170X245CM

 Turret Milling Machine SM-4VSLBTurret Milling Machine SM-4VSLBTurret Milling Machine SM-4VSLB



Turret Milling Machine SM-4VSLB



Turret Milling Machine SM-4VSLB







For more information please visit







Turret Milling Machine SM-4VSLBTurret Milling Machine SM-4VSLB





For more information please visit
