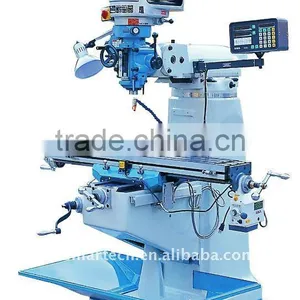

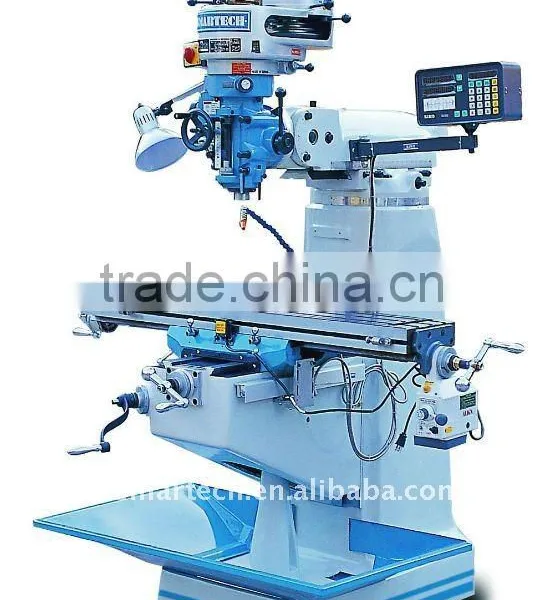

Turret Milling Machine SM-2SLB

Turret Milling Machine SM-2SLB thumbnail-1
Turret Milling Machine SM-2SLB photo-1
Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Yunnan, China
Brand Name:
SMARTECH
Contact Supplier Request Quote Chat Now
Smartech Machinery & Equipment Co., Ltd.(Shenzhen)
Payment & Shipping
Payment Methods:
Port of Shipment:
SHENZHEN
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Place of Origin Yunnan, China
Brand Name SMARTECH
Model Number SM-2SLB
Type Vertical
CNC or Not Normal
Voltage 380 kw
Power(W) 2.25 kw
Dimension(L*W*H) 160*170*210 cm
Weight 1040 kg
Certification ISO
Warranty one year
  • CHARACTERISTICS

1)    Meehanite casting body

2)    Working table and all slide ways are hardened and grounded as well as superior turcite-B coated on slide ways, ensure high serve sensitivity and accuracy;

3)    Centralized lubrication system, ensure supplied lubrication condition.



  • STANDARD ACCESSORIES:

1     Coolant system;

2     Halogen working lamp;

3     Draw bar;

4     Luxury electric control box ;

5     Way rubber cover (front & back);

6     Tool and tool box;

7     English operation manual, packing list and inspection certificate;

8     Power table elevating system;

9     Splash base pan;



  • OPNTIONAL ACCESSORIES:

1     SINO digital read out system (2-axis OR 3- axis)

2     Chuck collect set

3     Coolant system

4     Luxury halogen working lamp

5     6 angle lock machine vise

6     58pcs clamping kit set

7      X-axis electric power feed unit

8      Y- axis electric power feed unit

9      3C-1001 X-axis gear type power feed unit

10    3C-1002 Y- axis gear type power feed unit

11    X-axis inverter motor variable feed system

12    Y- axis inverter motor variable feed system

13    Air power draw bar

  • SPECS:

MODEL

SM-2SLB

Slide ways Structure

Y: Square, Z: Triangle

Table Size

1244X230mm



Travel

X - 914mm

Y - 330mm

Z - 406mm

Quill

127mm

Ram

305mm

Quill Diameter

86mm

Quill Feed Rate

0.04, 0.08, 0.15mm

Spindle Motor

2.25kw (3HP)

Spindle Taper

R8/NT30/NT40 ( 3 optional choose)

Spindle Speed

16 Steps: 80-5440rpm

Head Tilt Angle

B&F ±45°, R&L ±90°

Dist. Table-Spindle

0-460mm

Dist. Column-Spindle

177-428mm

Machine Weight

1040kgs

Dimension

160X170X210CM



Turret Milling Machine SM-2SLBTurret Milling Machine SM-2SLBTurret Milling Machine SM-2SLBTurret Milling Machine SM-2SLBTurret Milling Machine SM-2SLBTurret Milling Machine SM-2SLB
