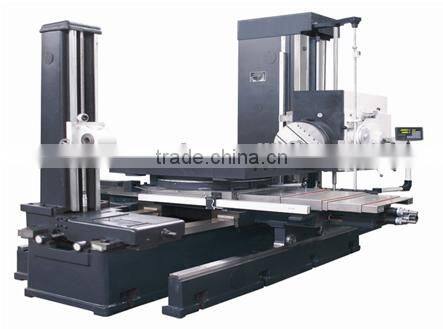

Help CenterHorizontal Boring Machine
Related Products
Specifications
Advantages of Smartech machine:1 High-class castings ;
2 Reliable machining equipment (Europe);
3 Strict assembly.
Spindle diameter mm 110
Worktable size(L×W)mm 1320×1010
Number of T type slot 7
Width of slot mm 22
Distance between two slots mm 125
Max. loading of worktable Kg 5000
Distance from spindle center to table top mm 5--905
Longitudinal and transverse travel of table mm 1100 (1500/without column)×1200
Headstock vertical travel mm 900
Spindle axial travel mm 550
Max. boring diameter mm 240
Max. drilling diameter mm 50
Inner hole taper of spindle (morse) No. 6
Max. allowable torque on spindle N.M 1100
Max. allowable torque on facing head N.M 1100
Facing head tool holder’s radial travel mm 160
Max working dia. of facing head tool holder mm 630
Max. allowable axial feed force on spindle N 13000
Spindle speed step 18
Facing head speed step 16
Spindle speed range rpm 12---950
Facing head speed range rpm 4---160
Max. machining diameter of facing head mm 630
Main motor power kW 6.5/8
Overall dimensions(L×W×H)mm 5016×3149×2788
Net/gross weight of machine Kg 13500/14800

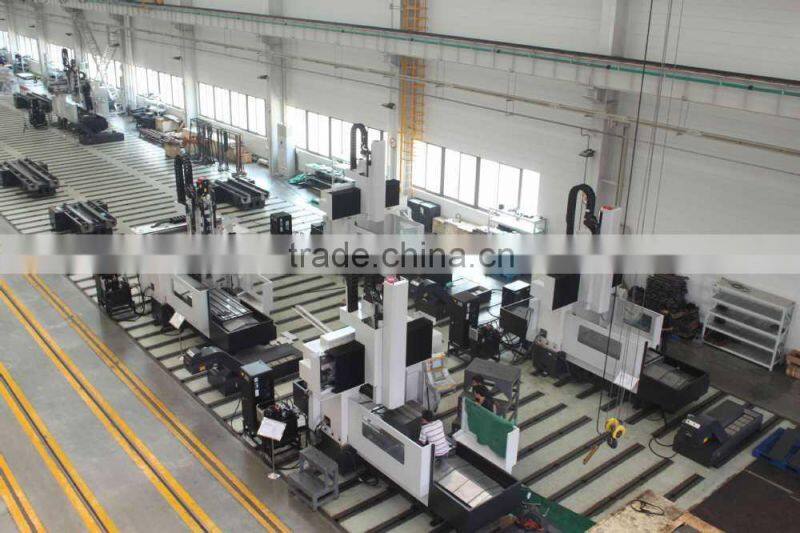

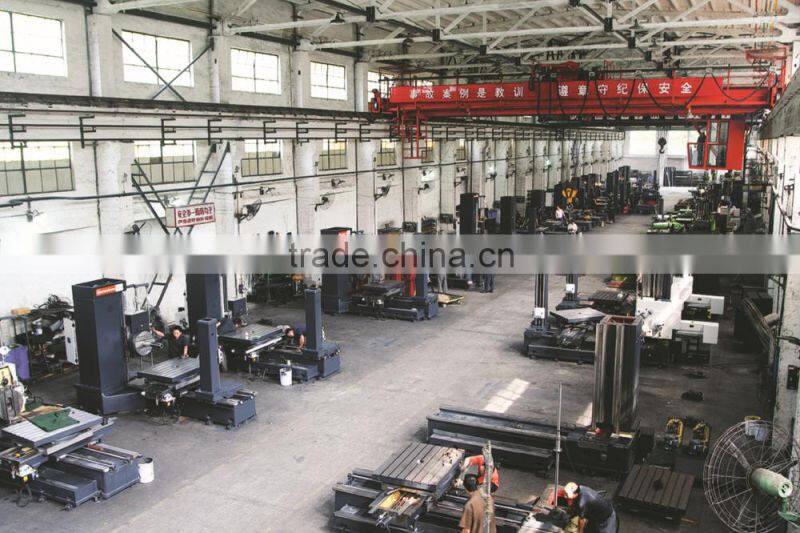

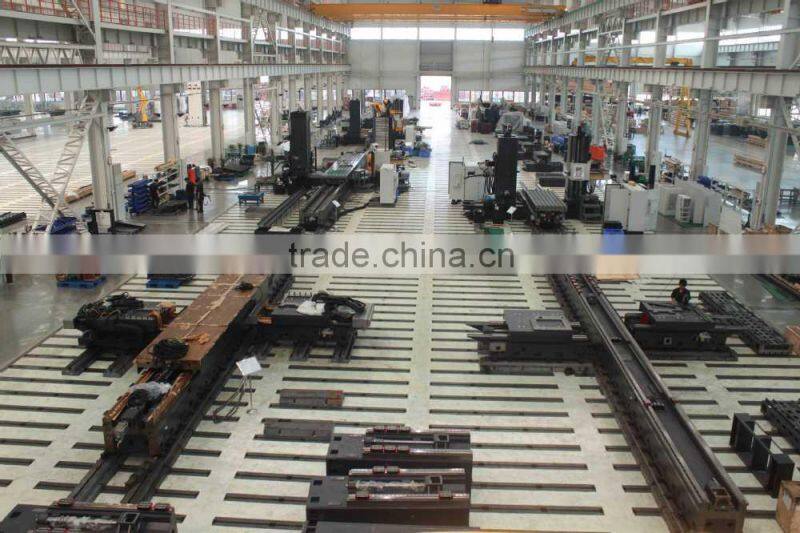

Bird's eye veiw over factory:
