VMC1370Suitable for mould or part machining !
High performance with reasonablem price !
High precision , high rigid !

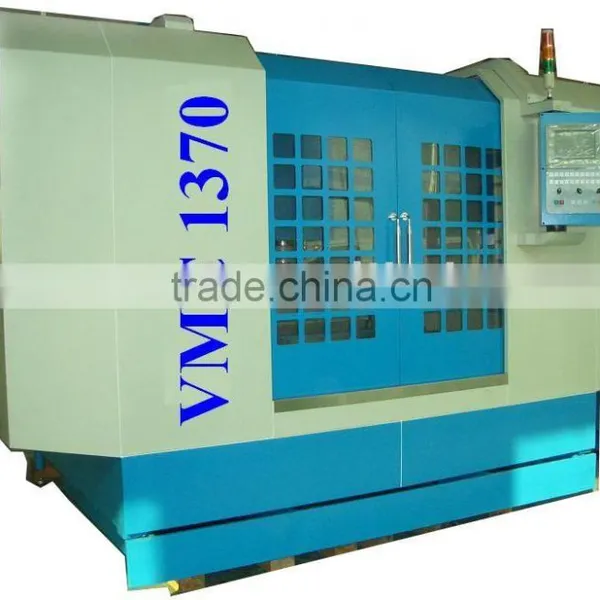

VMC1370
Main specification
ITEM |
SPECIFICATION |
|
l Table Size (mm) |
710 x 1400 |
|
l Travel (mm) |
X |
1300 |
Y |
700 |
|
Z |
650 |
|
l Spindle to Column Slideway (mm) |
785 |
|
l Spindle Nose to Table Surface (mm) |
150-800 |
|
l T-Slot(No-size/distance) (mm) |
5-18/152.5 |
|
l Spindle Taper/outside dia (mm) |
BT50/155 |
|
l Spindle Speed (rpm) |
6000 rpm |
|
l X,Y axis Ball Screw Spec. |
5010 |
|
l Z axis Ball Screw Spec. |
5010 |
|
l X,Y & Z Motor Connection |
Direct drive , Z motor with brake |
|
l Max X/Y/Z Rapid Feed rate mm/min |
12000 |
|
l Max X/Y/Z cutting Feed rate mm/min |
6000 |
|
l Main motors (rated power / Max. power) |
15 Kw / 18.5 Kw |
|
l Main motors torque |
22 Nm |
|
l Positioning accuracy mm |
0.01 / 300 |
|
l Repeating Positioning accuracy mm |
±0.005 / 300 |
|
l Table Work Load |
1000 Kg |
|
I Floor space (L x W x H) mm |
4000 x 3500 x 3100 |
|
l Net Weight |
13000kg |
|
Main factors:
1. Fanuc0IMD (αMotor ) or Mitsubishi 64SM controller ;
2. Arm type tool magazine (24 tools ) ;
3. Full close guarding ;
4. Electrical hand wheel ;
5. Rigid tapping ;
6. Rear water flow system ;
7. Alarm light and luxury tube work light ;
8. Auto lubrication system
9. Tools box and tools .
Optional :
1. Air condition for cabinet ;
2. Point spindle coolant system ;
3. Rear flush chips ;
4. Safe guarding door ;
5. 4th axis ;
