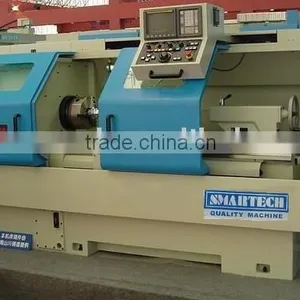

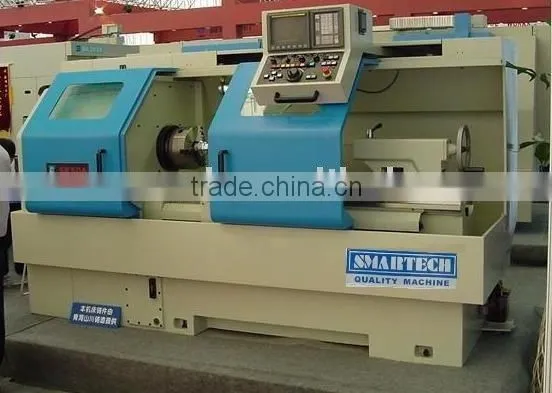

Flat bed CNC lathe CJK6140/6150
turning lenght from 750mm to 2000 mm , this is one of the simple model , very useful for long part machining .
With Fanuc or GSK980TDa controller .
Brief specification
Item |
Unit |
CJK6140H |
CJK6150H |
|
Capacity |
Max. swing over bed |
mm |
Φ400 |
Φ500 |
Max. swing over carriage |
mm |
Φ200 |
Φ280 |
|
Max. turning diameter |
mm |
Φ400 |
Φ500 |
|
Max. turning length |
mm |
750/1000/1500/2000 |
750/1000/1500/2000 |
|
Max. part length |
mm |
530/780/1280/1780 |
530/780/1280/1780 |
|
Spindle |
Spindle thru hole |
mm |
Φ52 |
Φ52/Φ82/Φ105 |
Type of Spindle nose |
|
ISO702 / No.6 |
ISO702 / No.6 |
|
Spindle speed |
r/min |
21 steps 11-1600 / 12 steps 36-1600 ( Φ105 ) |
||
Main motor power |
Kw |
7.5 |
7.5 |
|
Tailstock |
Quill diameter |
mm |
Φ75 |
Φ75 |
Quill travel |
mm |
150 |
150 |
|
Taper of center |
|
MT No.5 |
MT No.5 |
|
Carriage |
X/Z-axis travel |
mm |
200 / 720~2020 |
250 / 720~2020 |
X/Z Rapid traverse rate |
m/min |
6 / 12 |
6 / 12 |
|
Turret |
Number of stations |
|
8/12 |
8/12 |
Tool size (turning / boring) |
mm |
25x25 |
25x25 |
|
Others |
Dimension (LXWXH) |
mm |
2250~3500 x 1670 x 1660 |
2250~3500 x 1810 x 1850 |
Gross weight |
kg |
2050~2200 |
2100~2260 |
|
