Vertical Machining Center VMC 1060

Vertical Machining Center VMC 1060 thumbnail-1
Vertical Machining Center VMC 1060 thumbnail-2
Vertical Machining Center VMC 1060 photo-1
Vertical Machining Center VMC 1060 photo-2
US$ 25,900 - 27,900 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Place of Origin:
Yunnan, China
Brand Name:
SMARTECH
Contact Supplier Request Quote Chat Now
Smartech Machinery & Equipment Co., Ltd.(Shenzhen)
Payment & Shipping
Payment Methods:
Port of Shipment:
Any One in China
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Place of Origin Yunnan, China
Brand Name SMARTECH
Model Number VMC1060
Type Vertical
CNC or Not CNC
Voltage 380 V (Complete Machine)
Power(W) 7.5/11 Kw (Complete Machine)
Dimension(L*W*H) 1990*1845*2420 mm*mm*mm
Weight 5500 Kg
Certification ISO
Warranty One Year
After-sales Service Provided Overseas service center available

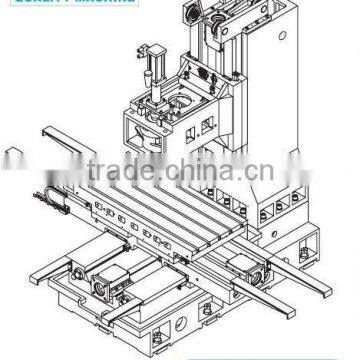

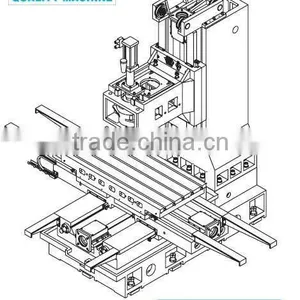

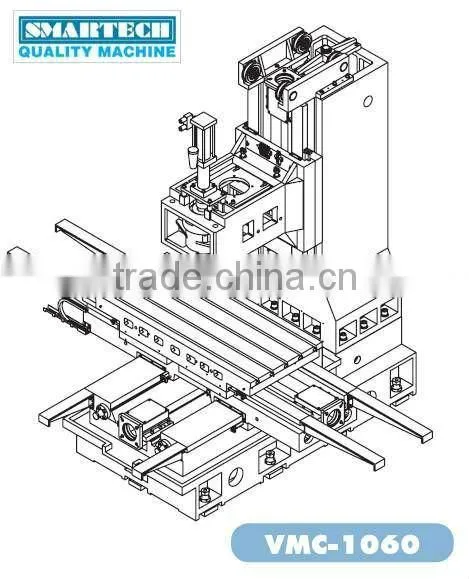

SMARTECH CNC VMC FRAME

  • MACHINE FEATURE:

1     High-class casting by resin sand and wood mould;

2     Top class imported ball screws sets and bearing ;

3     Imported spindle & tool clamping system ;

4     Imported drive connectors ;

5     Stainless steel telescopic protection on X/Y/Z axis ;

6     Central lubrication system ;

7     Coolant system ;

8      Harden&ground on all slideways and Turcite-B coated with precise scraping;



  • OPTIONAL:

1     Spindle Made in Taiwan;

2     Direct drive structure for main motor with spindle ;

3     Central oil coolant for the spindle ;

4     Coolant through spindle ;

5     ATC: drum type, arm type or chain type ;

6     Outside guarding: standard or special made according to clients design

7     Chip conveyor

8     CNC pre-installed for clients: whole full ready package delivery according to clients design



  • SPECS:

MODEL

VMC-1060

VMC-1060B

Table Size

600 x 1300

600 x 1300

Travel X

1000

1000

Y

600

600

Z

600

600

Spindle to Column Slideway

600

655

Spindle Nose to Table Surface

180-780

180-780

T-Slot(No-size/distance)

5-18/120

5-18/120

Spindle Taper/outside dia

BT40/150

BT40/150

Spindle Speed

8000 / 10000 /12000 rpm

8000 / 10000 /12000 rpm

X,Y axis Ball Screw Spec.

40/10

40/10

Z axis Ball Screw Spec.

40/10

40/10

X,Y & Z Motor Connection

Direct drive

Direct

Main motors recommended

7.5-11kw

7.5-11 Kw

Drive motors recommended X/Y/Z

14/16/16Nm

14/16/16Nm

Table  Work Load

800 Kg

800 Kg

Net Weight

5500kg

5800kg

                                          *Also provide linear-type slide ways.

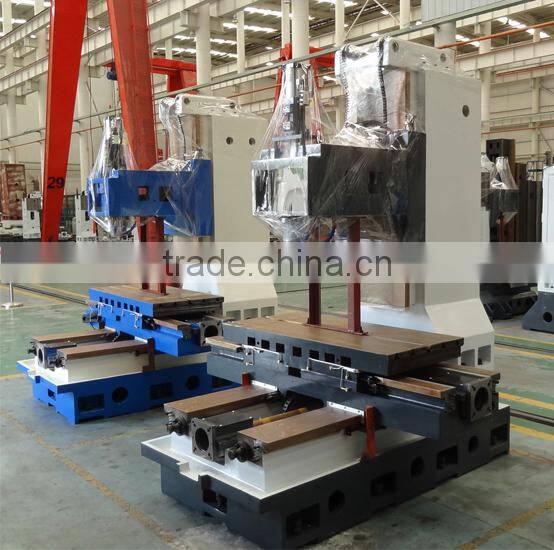

VMC-1060B Frame (without full guarding, automatic tool changer, controller, spindle motor, servo motors and their drives)

 Vertical Machining Center VMC 1060

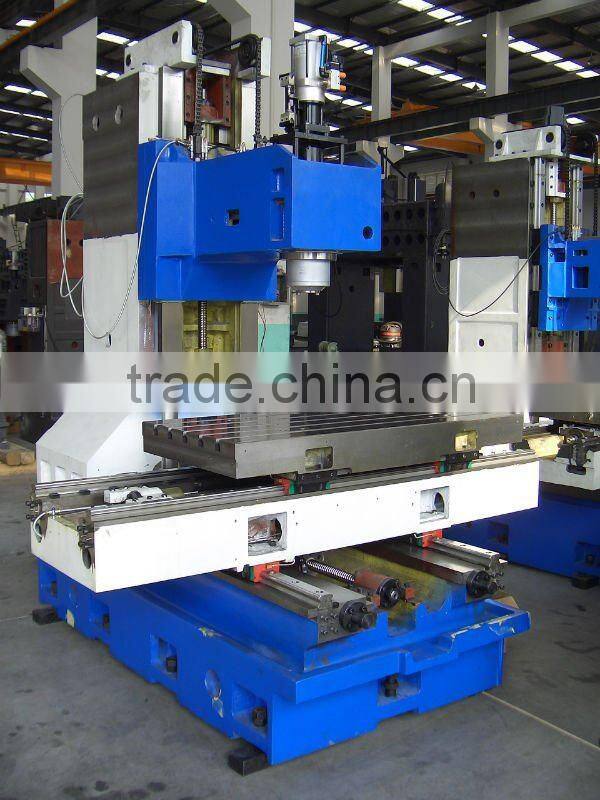

Also Provide Linear-type VMC-1060L



Vertical Machining Center VMC 1060



Also Provice Complete Machine with Fanuc, GSK, Syntech or Siemens Controller.



Vertical Machining Center VMC 1060
