Product Details
Place of Origin: | Shanghai, China | Brand Name: | Sino-Telecom | Model Number: | XPA2000-EPON |
Product Description
Overview
- XPA2000-EPON is a portable FPGA-based multi-functional EPON protocol analyzer launched by Sino Telecom. Compared with the existing EPON protocol analyzer in the market, XPA2000-EPON can not only provide analysis on standard MPCP protocol and standard OAM protocol, but also make targeted optimization according to the practical application of domestic EPON:
1)XPA2000-EPON supports China Telecom CTC extended OAM standard protocol analysis;
2)XPA2000-EPON supports EPON link wire speed decryption function and can work under the condition that EPON link is encrypted;
3)XPA2000-EPON not only supports parallel mode and captures the packet by an external 2 × 2 splitter, but also supports cascade mode;
4)XPA2000-EPON is with good appearance and compact structure, which is easy to carry. It can not only be used in laboratory testing, but also in EPON construction site.
- The launch of XPA2000-EPON breaks the monopoly of foreign manufacturers on high-end FTTH protocol analyzers. Compared with similar products in the international market,the targeted improvements make XPA2000-EPON more suitable for domestic EPON network environment.
- XPA2000-EPON can be widely used in the EPON OLT/ONU interoperability testing and the fault location of EPON link for domestic telecom operators and system equipment manufacturers.
Product Features
Category | Item | Description |
Packet Capture | Bidirectional Packet Capture | It supports the packet capture in the two directions of EPON link. For the external interface, 2*N splitter can be used to connect to the network; or connect to the network in cascade mode. (EPA2000C cannot support cascade mode) |
Packet Filtering | It supports LLID/MAC-based capture of specified message. | |
Time Stamp | Time stamp by FPGA for bidirectional receiving of packets. | |
Bidirectional Merge | The packets captured in the two directions are saved according to the time order. | |
Storage Space | It supports a storage space of 4G Byte. | |
Analysis | Decryption | It supports the decryption of the captured encrypted frame. |
MPCP Analysis | It supports the analysis on MPCP frame defined in 802.3ah standards. | |
Standard OAM Analysis | It supports the analysis on OAM frame defined in 802.3ah standards. | |
CTC Extended OAM Analysis | It supports the analysis on extended OAM frame defined in CTC V3.0 standards. | |
Other Second Layer and Higher Layer Protocol Analysis | It supports the analysis on other second layer/third layer or other higher layer protocols. | |
Display | In Time Stamp Order | |
Distinguish the Packets in Different Directions | MPCP/OAM uplink and downlink frames can be distinguished by the different colors. | |
Display of Filter | ||
The Protocols are displayed according to the fields. | ||
Save | Save the Original Decryption Data | To save the decrypted original messages. |
Save the Data According to the Filter Result |

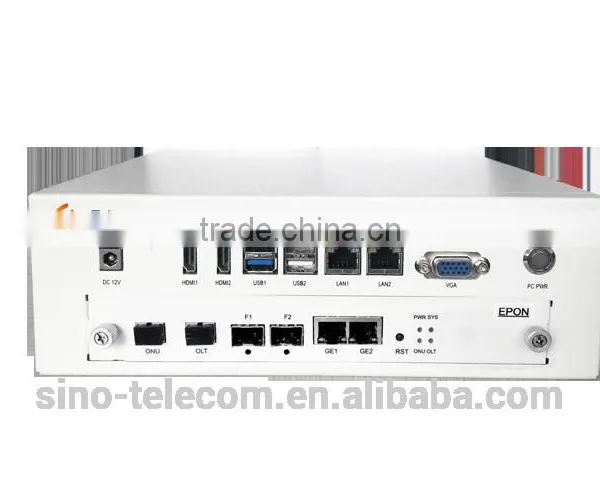

Hardware Specifications
Parameter | Description |
Chassis Dimensions | 280*275*65 mm |
Power Supply | DC12V |
CPU | I5 dual core 2.3G |
Memory | 6 * indicator lights |
Hard Disk | 128G SSD |
Hardware Interface | |
Optical Interface | 1* OLT interface;1* ONU interface |
Display Interface | VGA or remote desktop |
USB | 2*USB |
Management Interface | 1*RJ45 |
