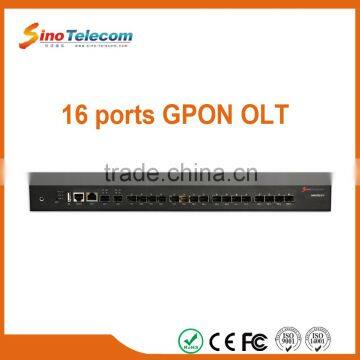

Sino-Telecom 1U 16 Ports Optical Line Terminal FTTH GPON OLT SAN3700-G16

Name: Sino-Telecom 1U 16 Ports Optical Line Terminal FTTH GPON OLT SAN3700-G16
Brand: Sino-Telecom
SKU: 123957193
Availability: InStock

Sino-Telecom 1U 16 Ports Optical Line Terminal FTTH GPON OLT SAN3700-G16 thumbnail-1

Sino-Telecom 1U 16 Ports Optical Line Terminal FTTH GPON OLT SAN3700-G16 thumbnail-2

Sino-Telecom 1U 16 Ports Optical Line Terminal FTTH GPON OLT SAN3700-G16 thumbnail-3

Sino-Telecom 1U 16 Ports Optical Line Terminal FTTH GPON OLT SAN3700-G16 thumbnail-4

Sino-Telecom 1U 16 Ports Optical Line Terminal FTTH GPON OLT SAN3700-G16 photo-1

Sino-Telecom 1U 16 Ports Optical Line Terminal FTTH GPON OLT SAN3700-G16 photo-2

Sino-Telecom 1U 16 Ports Optical Line Terminal FTTH GPON OLT SAN3700-G16 photo-3

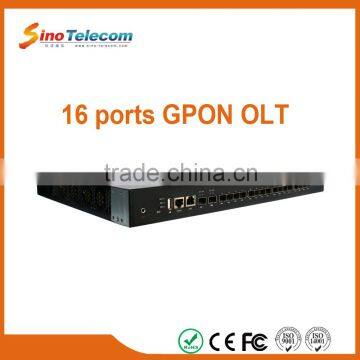

Sino-Telecom 1U 16 Ports Optical Line Terminal FTTH GPON OLT SAN3700-G16 photo-4

Negotiable MOQ: 1 Unit (Price negotiable depending on order volume and customization)

Key Specifications

Get Latest Price

Place of Origin:

Shanghai, China

Brand Name:

Sino-Telecom

Model Number:

SAN3700-G16

Contact Supplier Request Quote Chat Now

Shanghai Sino-Telecom Technology Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Shanghai, China

Brand Name Sino-Telecom

Model Number SAN3700-G16

Product Description

Overview

GPON OLT SAN3700-G16 is high density 1U pizza box, it adopts the advanced technology and ASIC chip. SAN3700-G16 is fully compliant with ITU-T G.984.x standards, can interwork with different types of ONU from different vendors. It is based on the mature and robust SinoOS software platform from Sino Telecom, system has high reliability and stability. SAN3700-G16 supports network management via CLI and SNMP, with good user interface, easy to operate.

SAN3700-G16 provides the highest GPON port density in 1U box in the industry, which has 16 ports GPON, 2 ports 10GE /GE uplink. Single GPON port can manage 128 ONUs, one equipment can manage up to 2048 ONUs. The device is easy to install and commissioning, minimizing operators' investments, it is the best suitable for service provider to deploy GPON based FTTH network.

Product Parameters:

Parameters	Description
Switching Capacity	60Gbps
PON Interface	16 ports GPON
Uplink Interface	2 ports 10GE/1GE
Power Supply	AC: Input 100~240V, 47~63Hz; DC: Input -40V~-75V
Power Consumption	Typical: 56W; Maximum: 80W
Dimensions (mm) (WDH)	440mm320mm44.2mm
Environment	Working Temperature:-5°C~55°C Storage Temperature:-40°C~70°C Relative Humidity:10%~90%, no condensing

Features:

Feature		Description
PON Features		Compliant with ITU-T G.984.x standard High splitter rate, each PON port supports up to 128 ONU and 1K T-CONT Support of five types T-CONT bandwidth profile Support of multiple ONU authentication mechanism: SN, Password, SN plus Password, Loid, LoidPassword. Support of DBA ( Dynamic Bandwidth Allocation)
Ethernet Features	VLAN	Support of 4K VLAN entries Support of QinQ based on port or service flow Support of VLAN add, remove, translate per ONU service flow based
	Spanning Tree	Support of IEEE 802.1D Spanning Tree Protocol (STP) Support of IEEE 802.1w Rapid Spanning Tree Protocol (RSTP) Support of IEEE 802.1s Multiple Spanning Tree Protocol instances (MSTP)
	Port	Support of bi-directional bandwidth control Support of static link aggregation and dynamic LACP(Link Aggregation Control Protocol) Support of port mirroring and traffic mirroring
	Multicast	Static multicast IGMPv1/v2/v3 IGMP Snooping/Proxy IGMP fast leave
	QoS	Support of rate-limit based on port or self-defined service flow Support of priority remark based on port or self-defined service flow and provide 802.1P, DSCP priority and Remark Support of QoS scheduling based on port and self-defined service flow, support of 8 priority queues, scheduler algorithm is SP, WRR, or SP plus WRR. Support of congestion avoid mechanism
Security Features	User Security	Support of anti-ARP-spoofing Support of anti-ARP-flooding Support of port isolation and ONU isolation control Support of binding among IP, MAC, VLAN and port
	Device Security	Support of anti-DOS attack Support of hierarchical management and password protection
	Network Security	Support of port-based broadcast/multicast suppression Support of L2 to L7 ACL flow filtration mechanism on the 80 bytes of the head of user-defined packet
Network Management		CLI (Command Line Interface) NMS (Network Management System) via SNMP interface

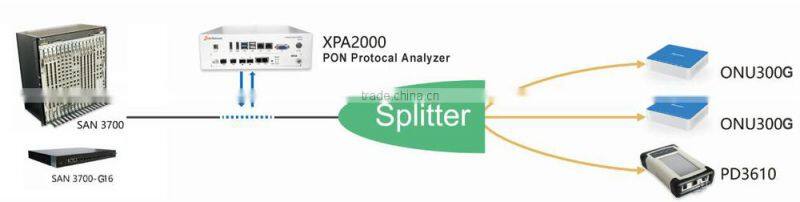

Application

Application

Related Product

Related Product

Model	Description
GPON OLT
SAN3700-G08	1U Pizza Box 8 port FTTH GPON OLT
SAN3700-G16	1U Pizza Box 16 port FTTH GPON OLT
SAN3700 10U	10U FTTH GPON EPON OLT upto 224 Port
GPON ONU
ONU300G-1G	GPON ONU with 1GE port, 1 PON port
ONU300G-2EV	GPON ONU with 1FE port, 1GE port, 1* POTS port, 1* PON port
ONU300G-4E2VW	GPON ONU with 3FE port, 1GE port, 2* POTS port, 1* PON port

Product Category

Product Category

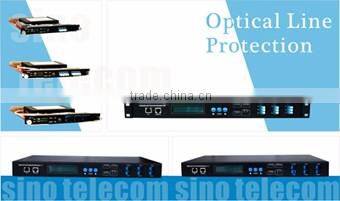

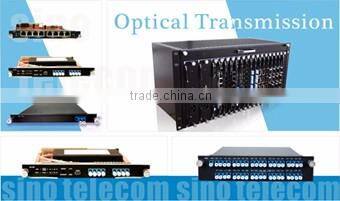

1. WDM Optical Transport System 2. Optical Line Protection Switch

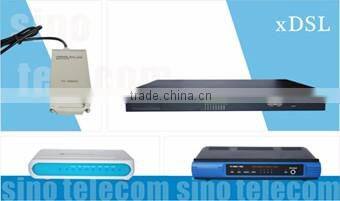

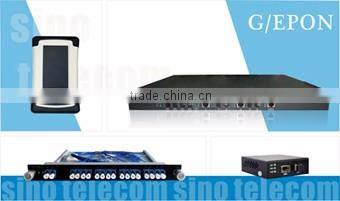

3. xDSL 4. GPON/EPON

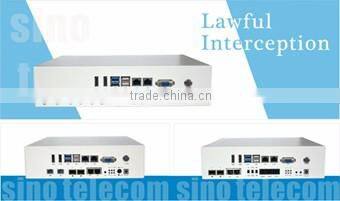

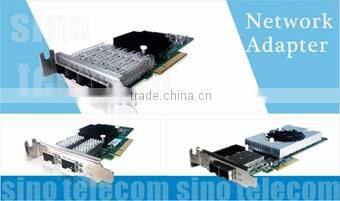

5. Lawful Interception 6. Network Interface Card

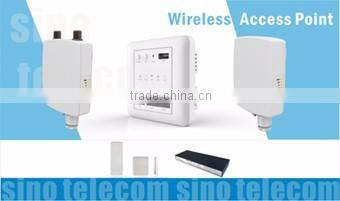

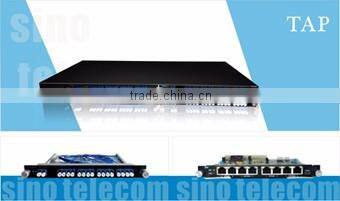

7. TAP 8. Wireless AP

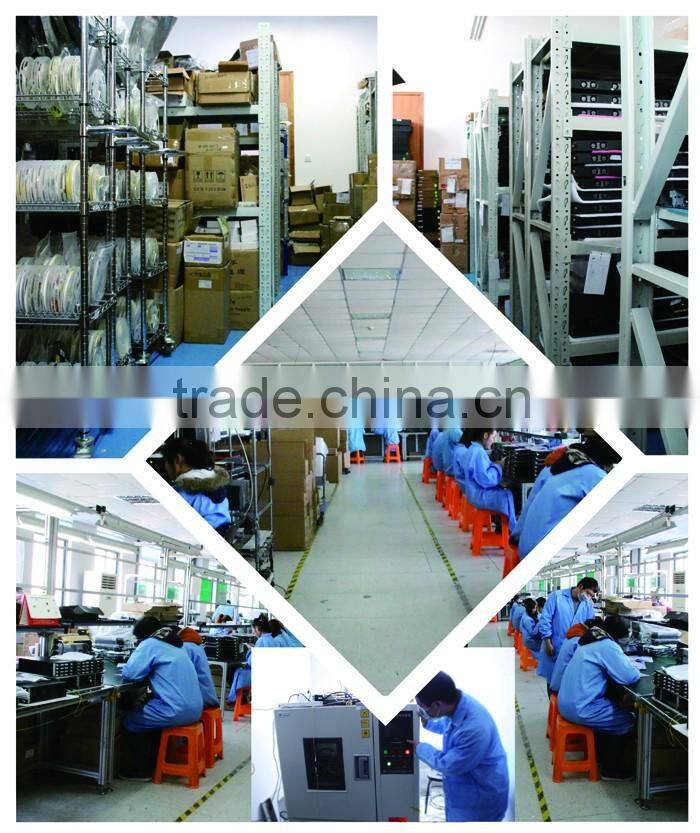

Production Line

Production Line

FAQ

FAQ

1. What are your terms of payment?

Usually, we can accept T/T, PayPal and Western Union. You can select the terms of payment which is more convenient for you.

2. What about the lead time?

Usually, if there is stock of goods, we will deliver the goods within 3~5 work days after we receive the payment.

3. How about the shipping?

Usually, we will deliver the goods via International Express like FedEx, DHL, TNT, and UPS and so on. Door to door delivery service will be provided.

4. How can I place an order?

(1) Agreement is achieved on the product price and product specifications.

(2) We make proforma invoice for your confirmation.

(3) When you agree on the proforma invoice, you make the payment.

(4) We deliver the goods after we receive your payment.

5. Can you do OEM for us?

Yes. If there is a certain order quantity, we can do OEM including printing, logo, and customized model for you.

6. What are the advantages of your products?

A. Good quality and competitive prices.

B. Strict quality control during production process.

C. Professional operations in processes of production, sales, assembling, packaging and shipping.

D. Good after-sale service. Professional online technical support can be provided. Moreover, if there is any problem of the goods, we will help to solve the problem or provide replacement of the goods.
