Sino-Telecom 10G Intelligent Optical Bypass Device XSB6104 Which is Used in the Field of Optic Fiber Communication
Negotiable
MOQ: 1 Piece (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Place of Origin:
Shanghai, China
Brand Name:
Sino-Telecom
Model Number:
XSB6104
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Sino-Telecom Optical Switch Unit OSU6116 Which is Used for Monitoring Multiple Channels of Optical SignalsNegotiableMOQ: 1 Piece -
Sino-Telecom Optical Distribution Network Placed in a Local Convergence Point ODF Cabinet OEO6500-OTAPNegotiableMOQ: 1 Unit
-
Sino-Telecom Network Monitoring Access Service Board OEO6500-GTAPNegotiableMOQ: 1 Unit
-
Sino-Telecom FTTH Solution WDM GPONNegotiableMOQ: 1 Piece
-
Sino-Telecom 8 Channel FTTx Solution WDM-PONNegotiableMOQ: 1 Piece
Place of Origin
Shanghai, China
Brand Name
Sino-Telecom
Model Number
XSB6104
Overview
XSB6104 is an 10GE intelligent optical bypass device which is used in the field of optic fiber communication. It can automatically bypass the fault network nodes, intelligently detect the heartbeat, and automatically identify optical signal status of network nodes. Moreover, it can realize transient switch of optical channels, so as to automatically bypass the fault network node while failure occurs to that network node, and further to ensure normal communication of the system.
The device is designed with separate switch control and management control, which provides priority to link switch, and the handoff latency is less than 20ms. Moreover, it is with 1+1 redundant power (AC/DC optional). The device is designed according to industrial-grade standards, which ensures the stable operation in harsh environment.
Features
- Built-in intelligent detection of heartbeat protocol function. No extra heartbeat detection cable and no secondary development of the device are needed;
- Built-in Watchdog;
- A variety of management modes such as Console and button settings;
- Both manual switch and auto switch are supported;
- Strong compatibility: Various devices from mainstream manufacturers are compatible;
- High stability and double security network structure;
- Handoff latency less than 20ms;
- Excellent thermal design and temperature adaptability, which allows operation in various harsh environments;
- 1+1 redundant power with AC/DC optional, and wide voltage range, which is safer and more stable;
- Mini 1U design, which is easy for installation.

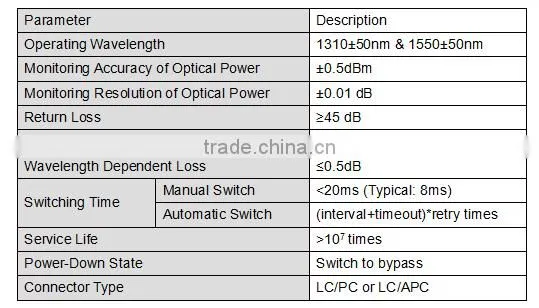

Performance Specifications
Hardware Specifications
- Management Mode: Console, Button
- Interface:
1*GB Ethernet Interface
1*RS232
1*mode button
8*LC/PC or 8*LC/APC Connectors
- Dimensions: 440×233×44.5mm(1U/19 inch)
- Power Supply:
AC 220V (100V ~ 276V)
DC 48V (-36V ~ -72V)
- Power Consumption: <30W
- Net Weight: <4KG
- Operating Temperature:-10~60ºC
- Storage Temperature: -40~+85ºC
- Operating Humidity: 5%~95% Non Condensing
- Altitude: -40m~5000m
- MTBF:140127 hours

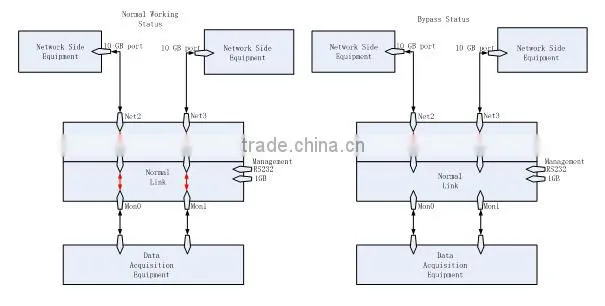

Application
