Overview

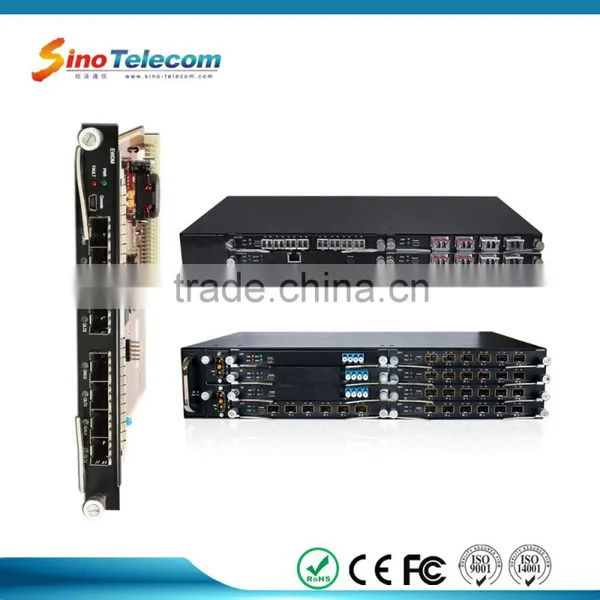

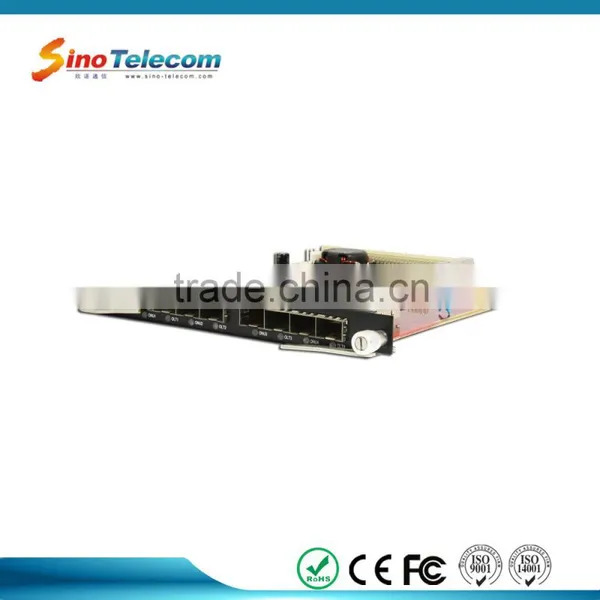

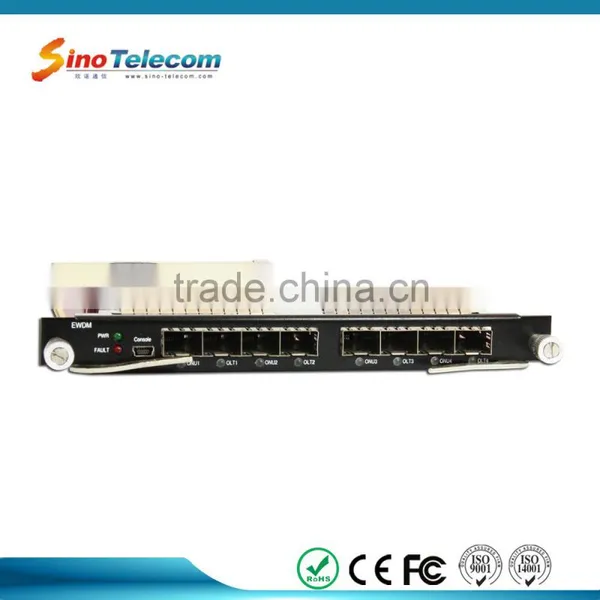

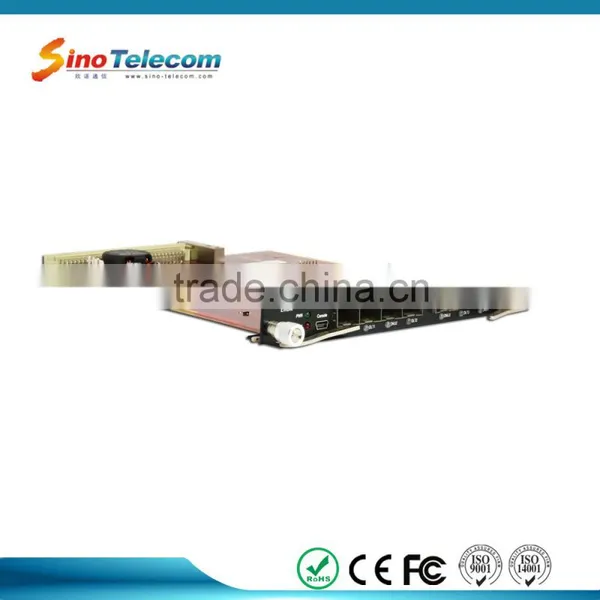

OEO6500-EWDM developed by Sino Telecom is a service board which is used for WDM-GPON/EPON system. In the principle of optical-electrical-optical (OEO), it can realize signal amplification and regeneration. Meanwhile, it can achieve signal retiming by extraction of clock from downstream signals, so as to realize 3R ampilication of signals. As a result, it can effectively amplify the optical power of PON line and extend the networking transmission distance. Moreover, it has features of compact structure and easy installation, which helps it to be widely used in a variety of fields such as bandwidth expansion, remote transmission, GPON/EPON access for residential communities and FTTH etc.
Features
- Support optical power amplification of GPON/EPON lines an transparent transmission of traffic data;
- Realize 3R regeneration and amplification of signals by extracting clock from signals;
- Effectively extend the transmission distance of PON to over 60KM;
- Support the networking mode of cascade connection of multiple devices;
- Channel for 1550nm wavelength is reserved, which can share an optical fiber with CATV signals;
- A variety of management modes such as SNMP, serial port and ethernet port are supported;
- The service board is hot-pluggable.
Performance Specifications
| Transmission Performance | |
| Protocols |
GEPON (IEEE 802.3 ah) Turbo-EPON (GE-PON2) |
| Downlink Rate | 2.488G,1.25G continuous signal |
| Uplink Rate | 1.25G burst signal |
| Compatibility |
Be compatible with OLT and ONU devices from different manufacturers. Support transparent transmission of traffic data. Channel for 1550nm wavelength is reserved. |
| Transmission Distance | Support a maximum transmission distance of more than 60km. |
| Optical Interface Parameters | |
| Receiving Sensitivity at OLT Side |
-28/-3 dBm(2.5G/bps) -30/-3 dBm(1.25G/bps) |
| Receiving Sensitivity at ONU Side | -28/-8 dBm(Optical burst) |
| Transmitting Optical Power at OLT Side | 1 dBm |
| Transmitting Optical Power at ONU Side | 2 dBm |
| Operating Environment | |
| Temperature | -10 to 70℃ |
| Humidity | 5 to 85% |
| Power Consumption | <15W |

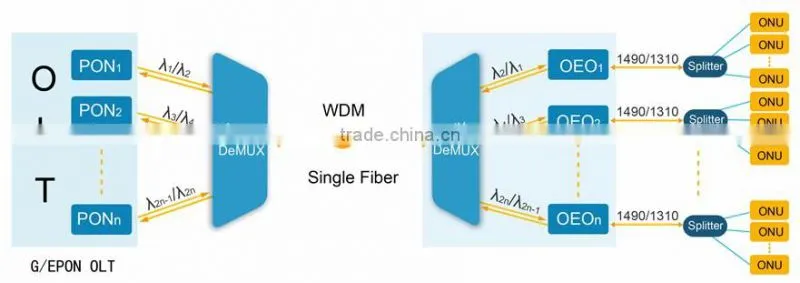

Application
