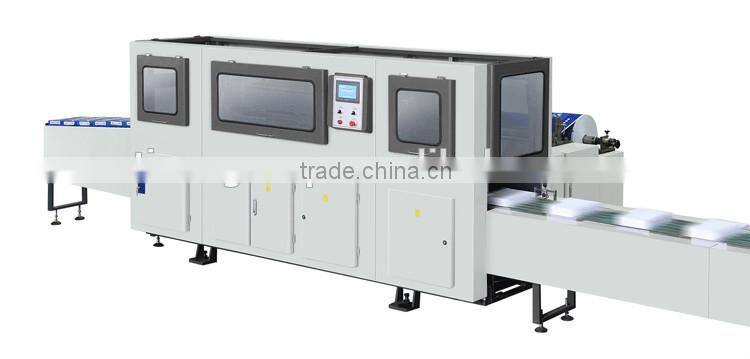

A4 Paper Cutting and Packing Machine

Name: A4 Paper Cutting and Packing Machine
Brand: TINVA
SKU: 123935607
Availability: InStock

US$ 1 - 200,000 MOQ: 1 Set

Key Specifications

Condition:

New

Product Type:

Other, Paper cutting machine

Processing Type:

Other, Cutting and packing line

Ruian Tinva International Trade Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

NINGBO

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Product Type Other, Paper cutting machine

Processing Type Other, Cutting and packing line

Place of Origin Zhejiang, China

Brand Name TINVA

Model Number RFCP-A4

Certification CE

Warranty ONE YEAR

After-sales Service Provided Engineers available to service machinery overseas

Specifications

Automatic A4 paper cut-size sheeting and packing line wenzhou

A4 paper cut-size sheeting and packing line wenzhou

Model	RFCP-A4-10	RFCP-A4-20
Sheeting Unit
Unwinding Paper Reels	2	4
Number of Pocket	4	4
Max. Width of Paper Roll(mm)	846	846
Net Cutting Width(mm)	840	840
Diameter of Paper Roll(mm)	400-1200
Diameter of Core Chuck(mm)	3”(76.2mm) or 6”(152.4mm)
Paper GSM(gsm)	60-100
Length of Sheeted Paper (mm)	297
Paper Quantity per Ream (pcs)	0-500
Max. Ream Height(mm)	65
Working Speed of paper feeding(m/min)	180--220	180--220
Working Cutting Speed (times/min)	437	437
Ream Discharging speed (reams/min)	8—10	16--20
Max. Knife Loading(gsm)	400 (4×100)
Paper cutting accuracy(mm)	±0.2
Requirement for paper Reel	1.Stable Speed 2. Paper roll with no breakage 3. Qualified paper .
Transmission	AC Frequency conversion, stepless speed regulating
Main power source	380v/50Hz 3phase 4 wires
Control voltage	220V AC/22V DC
Total Power(Kw)	22	22
Overall dimension(m) (LxWx H)	16× 2.75× 2.1	16.5×2.75×2.1
Weight(T)	12	15
Wrapping Unit
Production Speed(reams/min)	8—10	16-20
Motor power(Kw)	6.5
Gluing power(Kw)	2.25	2.25
Compressed air(mpa)	0.6—0.8
Overwrapping Paper size(mm)(L ×W)	550-560×386
Overall dimension(m) (LxWx H)	3.4x3.3x1.6	4.53×3.05×1.5
Weight (T)	1.5	2
