Specifications
ip webcame Onvif p2p waterproof infrared IR 1080p POE 2megapixel outdoor camera1. Dual H.264 Stream
2. Onvif Compliant
ip webcame Onvif p2p waterproof infrared IR 1080p POE 2megapixel outdoor camera

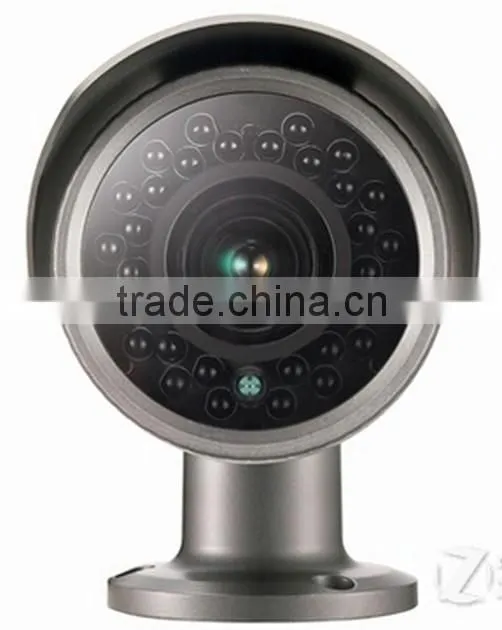

Mega pixel IR Camera- GRT-MI2036L Series
Function Feature:
P2P IP Camera Support P2P function
H.264 Main Profile @level 3
HD 720Pl 1280*720 Resolution
Dual H.264 Stream, resolution, frame rate, bit rate adjustable
Support RTSP Compatible with VLC Media Player
Onvif Compliant, Support Milestone/Axxon/NUUO/Geovision
Support Two Way Audio
Build in Motion Detection
1/3" HD CMOS Sensor Progressive Scan, support WDR
4/6/8mm Mega pixel Fixed Lens included
Φ8 36pcs IR LED IR Range 50 m
Support Power over Ethernet (IEEE 802.3af) optional
Support Micro SD Card (SDHC up to 32GB) Optional
IP66 Rated Waterproof, Outdoor Use
Support iPhone/iPad/Android Mobile
Support Intelligent Video Analytics Software
Optional model
GRT- MI2036L
GRT- MI2036L-POE (Build in POE)
Specification:
Model |
GRT-MI2036L Series |
||
Hardware | |||
Sensor |
1/3" Progressive Scan CMOS Sensor |
||
Effective Pixels |
1280(H)×720(V) |
||
Min.Illumination |
3650mv/lux-sec |
||
Day/Night |
Auto,dual IR-Cut filter |
||
IR LED |
Φ8 36pcs IR Leds IR Range 50 m |
||
Max S/N Ratio |
39dB |
||
Electronic Shutter |
Rolling Shutter |
||
Interfaces | |||
Optical lens |
Interface |
CS Mount (Interchangeable Lens) |
|
Lens |
Fixed Iris, Manual Focus |
||
Focal Length |
Fixed-Focal, f6mm / F1.4 (4/8mm lens optional) |
||
H View Angle |
50.0° |
||
Audio Talkback |
1 channel power MIC input, External access, AV interface |
||
Audio Output |
1 channel power speaker output, AV interface |
||
Storage Interface |
Micro SD (TF) Card supports video storage and image snapping; |
||
Network Interface |
Lan |
10/100M BASE-TX,RJ-45 connector |
|
RS485 |
Default as RS485 port for PTZ, 1ch Alarm input or 1ch alarm output optional |
||
Audio video encoding | |||
Video Compression |
H.264 Main Profile; MJPEG/JPEG Baseline |
||
Resolution |
Main Stream |
HD 720P (280*720) 1-30fps |
|
Sub Stream |
CIF(352*288)/QVGA(320*240)/QCIF(176*144) 1-30fps |
||
Video Bitrate |
32Kbps~4Mbps,Supports CBR/VBR |
||
Title OSD |
Supports channel name, date, and video stream information overlay; |
||
Privacy Mask |
4 configurable regions |
||
Image Orientation |
image flip and mirror |
||
Auto Image Control Functions |
Auto Exposure Control (AEC); Auto White Blance (AWB); Auto Band Filter (ABF)Auto Black Level Calibration (ABLC) |
||
Image Controls |
Color saturation, hue, gamma, sharpness (edge enhancement), lens correction, |
||
Audio Compression |
G.711 |
||
Two Way Audio |
Support |
||
Data transmission and storage | |||
Data storage |
Video and Image |
||
Recording |
Recording set up to record by motion trigger,alarm trigger, manual, or schedule |
||
Alarm Output |
FTP,E-mail, Explorer, Software |
||
Network protocol |
TCP/IP,UDP,RTP,RTSP,RTCP,HTTP,DNS,DDNS,DHCP,NTP,SMTP,UPNP |
||
Wireless protocols(-W) |
802.11b/g/n, 150Mbps, Supports WEP,WPA,WPA2("-WiFi" model supports) |
||
ONVIF protocols |
Support 1.02 version |
||
Remote View |
PC |
IE 6.0 or later, max 10 users |
|
Mobile Phone |
iPhone, Android, Blackberry Mobile |
||
General Parameters | |||
Environmental Casing |
Waterproof (IP66 Rated), Outdoor Use |
||
Installation |
Brackets Included, Wall Mount |
||
Operating Temperature |
-20 °C ~ 50 °C (-4 °F ~ 122 °F) for DC 12V |
||
Operating Humidity |
0% -85% RH |
||
Power |
DC12V 2.0A |
||
POE |
POE Class 3 IEEE802.3af, optional for "-POE" Model |
||
Power Consumption |
9W(MAX) |
||
Dimension |
165(L) * 83.2(W) * Φ74.1 (H)mm |
||
Weight |
1KG (2.2lb) |
||
Package Dimension |
328(L) * 150(W) * 148(H) mm |
||
Package Weight |
1.62KG (3.57lb) |
||
Approvals |
CE FCC RoHS |
||
