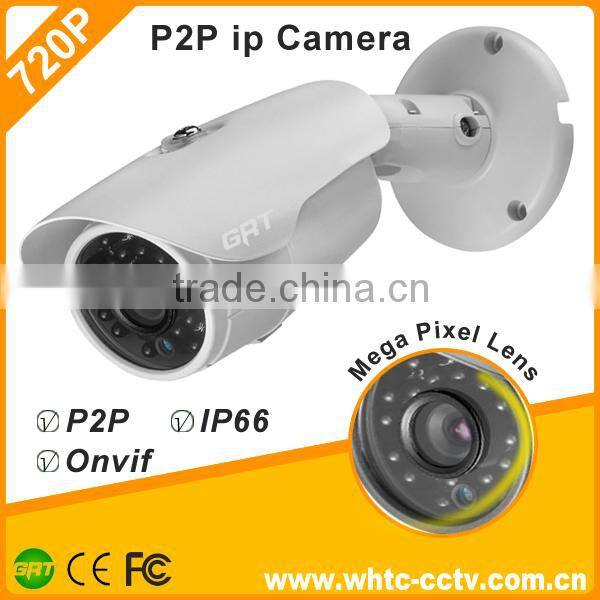

GRT Full HD 720P Waterproof Cctv ip Camera Digital With 30m ir

Model

GRT-HW10A2M2D  camera digital

Hardware

Sensor

1/4"progressive scanning CMOS

Effective Pixels

1280(H)×720(V)

Min.Illumination

0.1 LUX (0 LUX IR LED on)

Day/Night

Auto,dual IR-Cut filter

IR LED

Φ5 24pcs IR Leds  IR Range 20 m

Max S/N Ratio

>50dB

Electronic Shutter

Rolling Shutter

Interfaces

Optical lens

Interface

MT12 (Interchangeable Lens)

Lens

Fixed Iris, Manual Focus

Focal Length

Fixed-Focal, f3.6mm 2MP IR Lens (6mm lens optional)

H View Angle

70.0°

Network Interface

Lan

10/100M BASE-TX,RJ-45 connector

Audio video encoding

Video Compression

H.264 Main Profile; MJPEG/JPEG Baseline

Resolution

Main Stream

HD 720P (1280*720)30fps

Sub Stream

CIF(352*288)/QVGA(320*240)/QCIF(176*144)  1-30fps

Video Bitrate

32Kbps~4Mbps,Supports CBR/VBR

Title OSD

Supports channel name, date, and video stream information overlay;
OSD location is adjustable

Privacy Mask

4 configurable regions

Image Orientation

image flip and mirror

Auto Image Control Functions

Auto  Exposure Control (AEC); Auto White Blance (AWB); Auto Band Filter (ABF)Auto Black Level Calibration (ABLC)

Image Controls

Color saturation, hue, gamma, sharpness (edge enhancement), lens correction,
defective pixel canceling, and noise canceling

Audio Compression

G.711

Two Way Audio

Support

NetWork

Data storage

Video and Image

Recording

Recording set up to record by motion trigger,alarm trigger, manual, or schedule

Alarm Output

FTP,E-mail, Explorer, Software

Network protocol

TCP/IP,UDP,RTP,RTSP,RTCP,HTTP,DNS,DDNS,DHCP,NTP,SMTP,UPNP

Wireless protocols(-W)

802.11b/g/n, 150Mbps, Supports WEP,WPA,WPA2("-WiFi" model supports), POE(Optional)

ONVIF protocols

Support 2.0 version

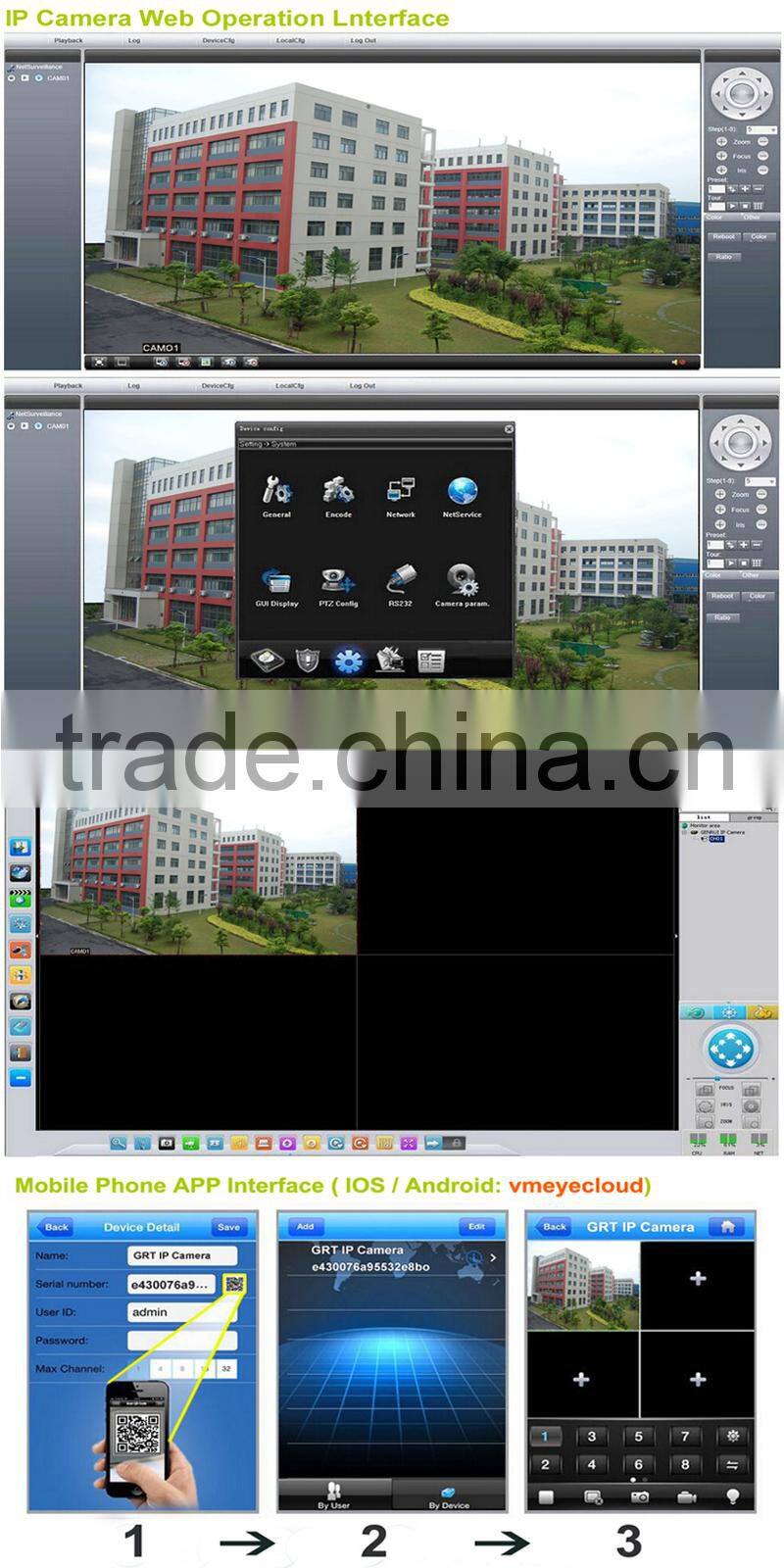

Remote View

PC

IE 6.0 or later, max 10 users

Mobile Phone

iPhone, Android, Blackberry Mobile

General Parameters

Environmental Casing

Waterproof (IP66  Rated), Outdoor Use

Installation

Brackets Included, Wall Mount

Operating Temperature

-20 °C ~ 50 °C (-4 °F ~ 122 °F) for DC 12V

Operating Humidity

0% -85% RH

Power

DC12V 2.0A

POE

POE Class 3 IEEE802.3af, optional for "-POE" Model

Power Consumption

9W(MAX)

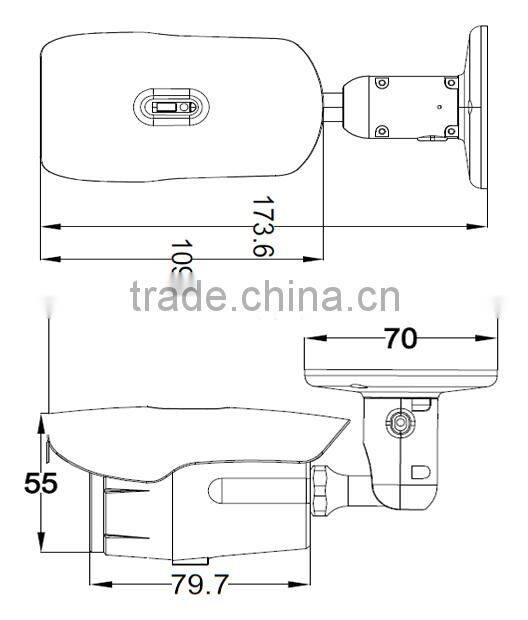

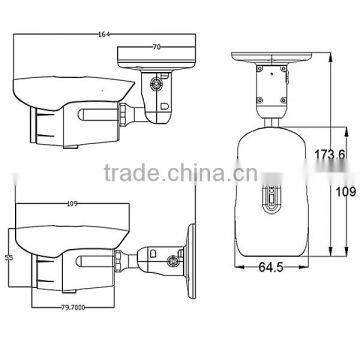

Dimension

174(L) * 75(W) * Φ60 (H)mm

Weight

1KG (2.2lb)

Approvals

CE FCC RoHS
