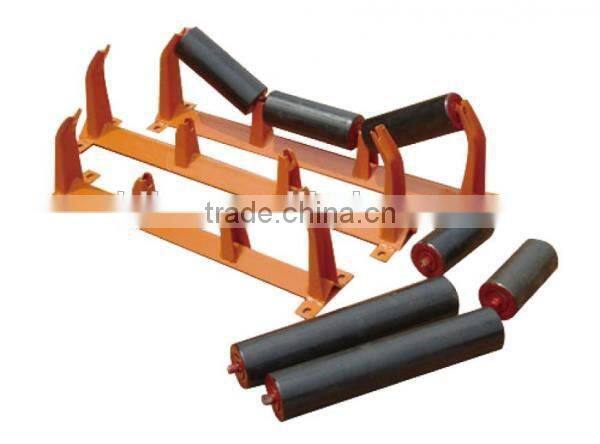

high efficient cereal and soybean farming belt conveyor JMCI 98

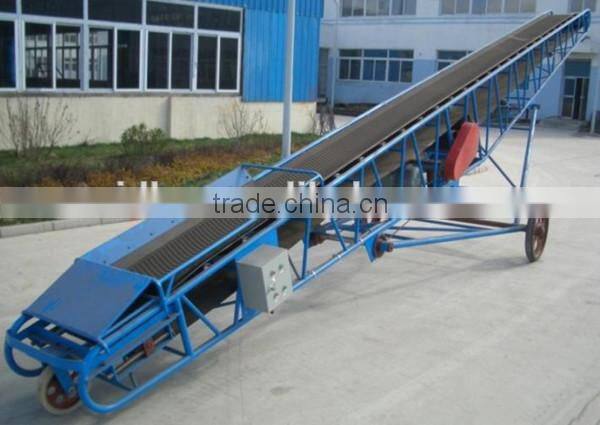

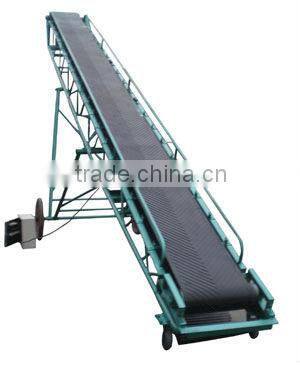

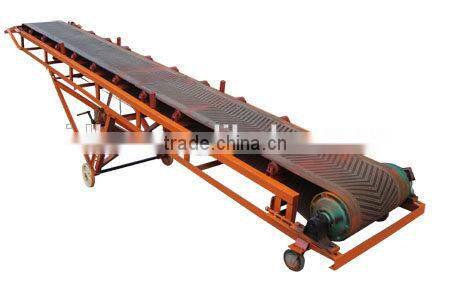

Product Description- Mobile Belt Conveyor
Mobile belt conveyor also named DY belt conveyor, belongs to a new type of belt conveyor. The main components of the belt conveyor is same with the common type of conveyor, but the common type can not be moved, and it is heavier. Mobile belt conveyor is lightweight and portable, mobility applicable in bulk loading, transport packaging and other occasions, suit to diversified occasions, and easy maintenance.
Working principle-Mobile Belt Conveyor
Belt-driven approach: gear motor drive, electric drum drive
Belt speed mode: frequency control, infinitely variable.
Rack material: carbon steel, stainless steel, aluminum
Different Type-Mobile Belt Conveyor
Groove belt conveyor, flat belt conveyor, climbing belt, belt curves, telescopic belt conveyor and other forms, Belt conveyor can be added to other accessories to meet process requirements. Such as lifting, both sides of the conveyor table, the installation of fixtures, electronic instrument assembly, food packaging and other belt conveyor assembly line.

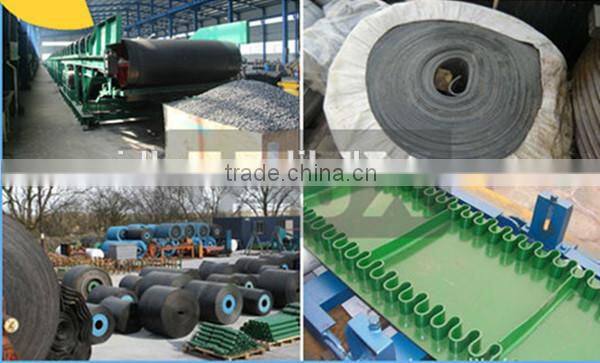

Material-Mobile Belt Conveyor
Rubber, silicone, PVC, PU and other materials, except for transport ordinary materials, it also transport special requirements, like oil, corrosion resistance, anti-static materials etc. Using special conveyor belt for grain, to meet the food, pharmaceutical, household chemicals and other industry requirements.
Advantage-Mobile Belt Conveyor
Belt conveyor has a simple structure, easy maintenance, less energy consumption and low cost characteristics, but also has the following characteristics:
1)Many kinds of material can be transported, also transport all kinds of bulk material , a variety of cartons, bags and other single-piece lightweight products, it can also be used to transport goods at a large supermarket cashier, etc.
2)Many diverse forms of structure, can also add other accessories to meet different process requirements.
3)Except for the delivery of ordinary materials, also works for special requirements, like corrosion resistance, anti-static materials etc.
4)Smooth transportation between the material and the conveyor belt there is no relative movement, to avoid damage to the transported material .
5)The noise is smaller than other kinds of conveyors , suitable for quiet work environment.
Technical parameters-Mobile Belt Conveyor
| Belt Width(mm) | Belt Length(m) / Power(kw) | Belt Speed(m/s) | Capacity(t/h) | ||
| B400 | ≤12/1.5 | 12-20/2.2 | 20-25/3 | 0.8-2 | 40-80 |
| B500 | ≤12/3 | 12-20/4 | 20-30/5.5 | 0.8-2 | 78-191 |
| B650 | ≤12/4 | 12-20/5.5 | 20-30/7.5 | 0.8-2 | 131-323 |
| B800 | ≤10/4 | 10-15/5.5 | 15-25/7.5 | 1.0-2 | 278-546 |
| B1000 | ≤10/5.5 | 10-20/7.5 | 20-25/11 | 1.0-2 | 435-853 |
| B1200 | ≤10/7.5 | 10-20/11 | 20-25/15 | 1.0-2 | 655-1284 |

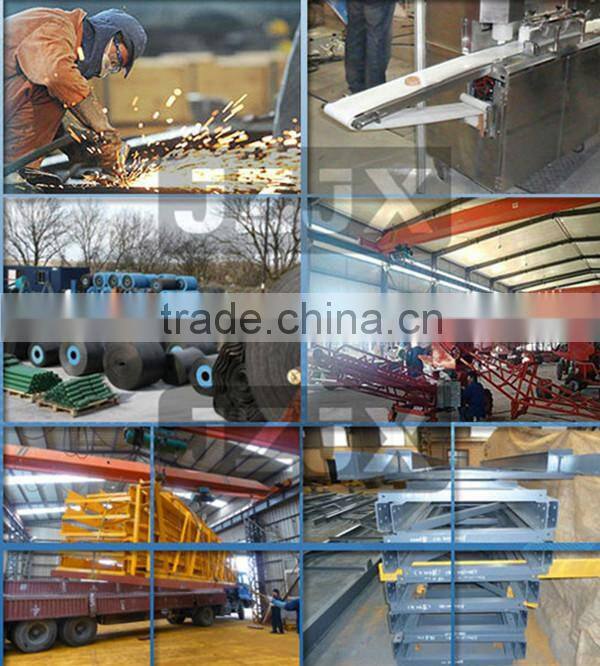

Welcome visit our Factory!
