Pipe Necking Spinning, Automatic Spinning Machines, CNC Spinning Machine Metal Spinning Machine

Pipe Necking Spinning, Automatic Spinning Machines, CNC Spinning Machine Metal Spinning Machine thumbnail-1
Pipe Necking Spinning, Automatic Spinning Machines, CNC Spinning Machine Metal Spinning Machine thumbnail-2
Pipe Necking Spinning, Automatic Spinning Machines, CNC Spinning Machine Metal Spinning Machine thumbnail-3
Pipe Necking Spinning, Automatic Spinning Machines, CNC Spinning Machine Metal Spinning Machine thumbnail-4
Pipe Necking Spinning, Automatic Spinning Machines, CNC Spinning Machine Metal Spinning Machine thumbnail-5
Pipe Necking Spinning, Automatic Spinning Machines, CNC Spinning Machine Metal Spinning Machine thumbnail-6
Pipe Necking Spinning, Automatic Spinning Machines, CNC Spinning Machine Metal Spinning Machine photo-1
Pipe Necking Spinning, Automatic Spinning Machines, CNC Spinning Machine Metal Spinning Machine photo-2
Pipe Necking Spinning, Automatic Spinning Machines, CNC Spinning Machine Metal Spinning Machine photo-3
Pipe Necking Spinning, Automatic Spinning Machines, CNC Spinning Machine Metal Spinning Machine photo-4
Pipe Necking Spinning, Automatic Spinning Machines, CNC Spinning Machine Metal Spinning Machine photo-5
Pipe Necking Spinning, Automatic Spinning Machines, CNC Spinning Machine Metal Spinning Machine photo-6
US$ 999 - 9,999 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
PROSPER
Model Number:
PS-CNCXY250
Contact Supplier Request Quote Chat Now
Huizhou Prosper CNC Machine Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen shekou port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name PROSPER
Model Number PS-CNCXY250
Condition New
After-sales Service Provided Engineers available to service machinery overseas

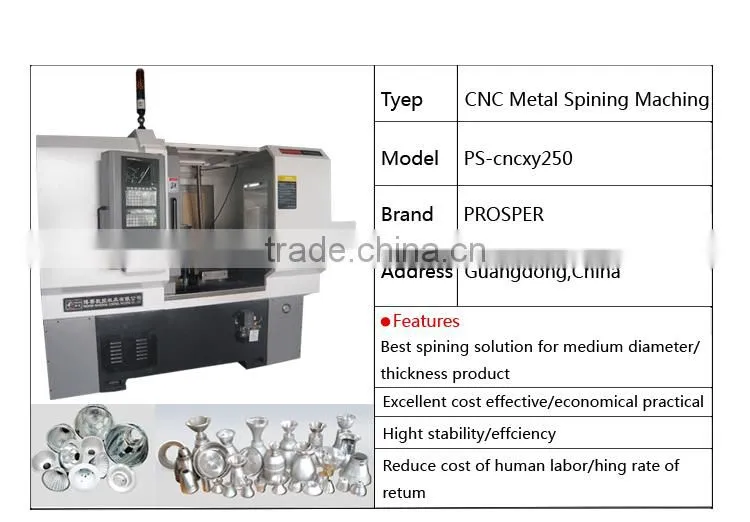

roll forming machine-cnc metal spinning machine PS-CNCXY250 is to meet the need of the spinning products of the industry, especially for the product such as House wares, Light equipment .

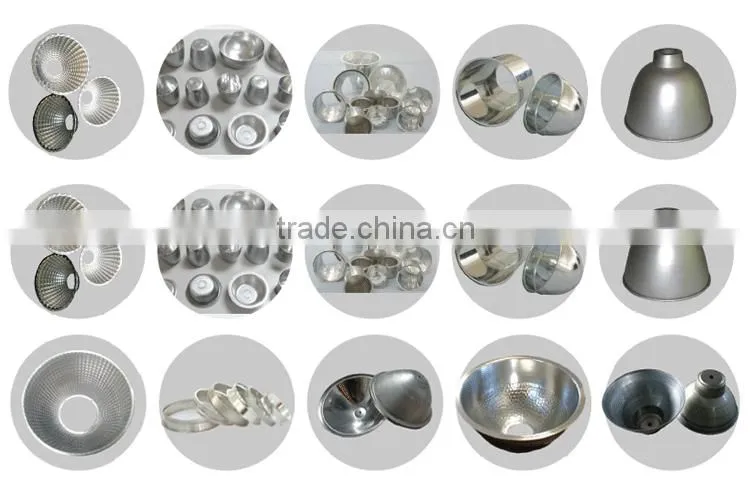

   This series of machine are characterized by their highly efficient and cost-effective benefits they can provide. The spinning process technology can produce various shapes of products, such as in shapes of cylinder, cone, parabola, trumpet and bullet. It not only produces in large quantity, but also carries out the trial-manufacture testing and completes the trimming and rolling of the edge and contraction and extrusion of the products. The machine is suitable for processing of the aluminum alloy plate, steel plate, stainless steel plate and many other materials.



Main Configurations and Functions

lDual-tool holder

l2+2 tools positions(tool turrets)

lSpherical guide

lCircle centering device

lHydraulic pressure station

lRoll support with compensation

lProduct ejector

lManipulator(Optional)



Specifications

Model

PS-CNCXY250

Max. Blank Circle Diameter

250mm

Center Distance

350mm

X axis path

400mm

Z axis path

380mm

Main Spindle Motor

3.7kw

Spindle Rotational Speed

10-4000 rpm

Max. Tailstock Force

10 kn

Tailstock Travel

300 mm

Tool Turret (Spinning Roller)

1+1

Sheet Thickness Approx ( Aluminum )

0.5~2.0mm

Sheet Thickness Approx ( Plain Steel )

0.5~1.0 mm

Sheet Thickness Approx (Stainless Steel )

0.5~0.6 mm
Pipe necking spinning, Automatic spinning machines, CNC spinning machine metal spinning machine Pipe necking spinning, Automatic spinning machines, CNC spinning machine metal spinning machinePipe necking spinning, Automatic spinning machines, CNC spinning machine metal spinning machinePipe necking spinning, Automatic spinning machines, CNC spinning machine metal spinning machinePipe necking spinning, Automatic spinning machines, CNC spinning machine metal spinning machinePipe necking spinning, Automatic spinning machines, CNC spinning machine metal spinning machinePipe necking spinning, Automatic spinning machines, CNC spinning machine metal spinning machinePipe necking spinning, Automatic spinning machines, CNC spinning machine metal spinning machinePipe necking spinning, Automatic spinning machines, CNC spinning machine metal spinning machinePipe necking spinning, Automatic spinning machines, CNC spinning machine metal spinning machinePipe necking spinning, Automatic spinning machines, CNC spinning machine metal spinning machinePipe necking spinning, Automatic spinning machines, CNC spinning machine metal spinning machinePipe necking spinning, Automatic spinning machines, CNC spinning machine metal spinning machine
