1. Introduction

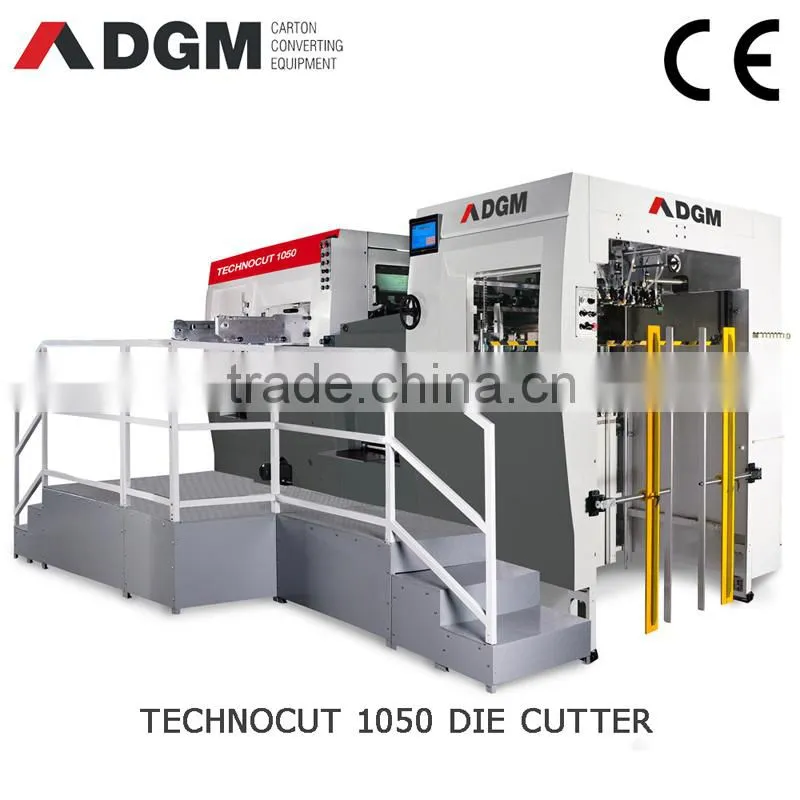

TECHNOCUT 1050 Automatic Die Cutting Machine. It can run large formats.High precision,high speed,easy to operate,quick changeovers,durability and stable performance. Features that make this machine one of the best options available.
2.SPECIFICATIONS
| Carton board min | 80g/m² |
| Carton board max | 2000g/m |
| corrugated board max | 4mm |
| sheet size min | 360*400mm |
| sheet size max | 740*1050mm |
| speed | 7500s/h |
| cutting force | 300ton |
| cutting size max | 730*1040mm |
| gripper margin min | 9.5mm |
| feeder | 160mm |
| delivery | 1300mm |
| compressed air | 8bar |
| Air compressor capacity | 15m³/h |
| Air tank capacity | 100L |
| length*width*Height | 6.1m*4.2m*2.45m |
| Net wight | 15ton |
3.key components
| Components | Description |
|

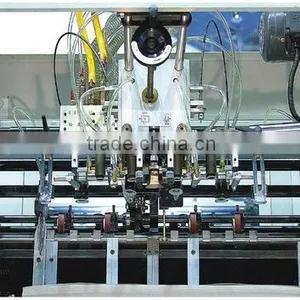

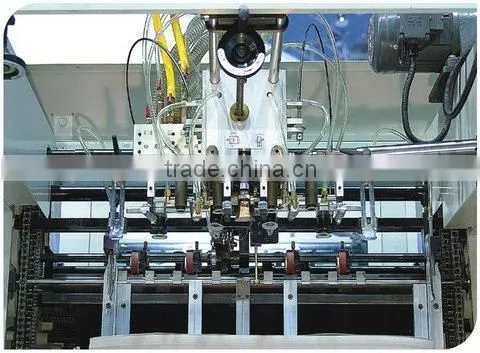

1). Feeder section: • Automatic feeder with non-stop system. • Pallet & cart direct load • 4 lift-up and 4 delivery suckers,designed to handle a wide range of materials from paper to corrugated board. They guarantee the accuracy,reliability and smoothness of paper feeding. • Double sheet detector. |
|

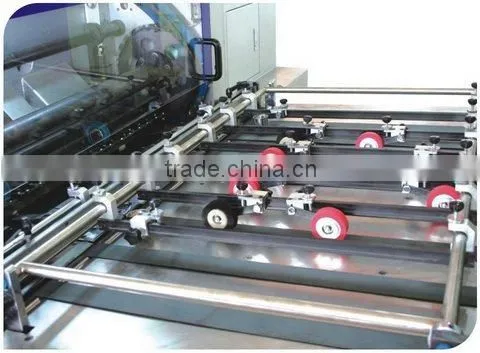

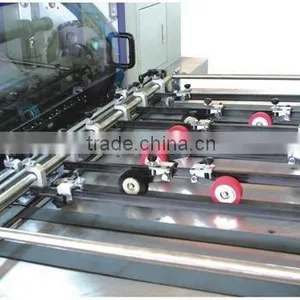

2).Register table • Side-register table with 6 belts. • 2 register side guides working with pulling and pushing system. • 2 register front lays,independently adjustbale. |
|

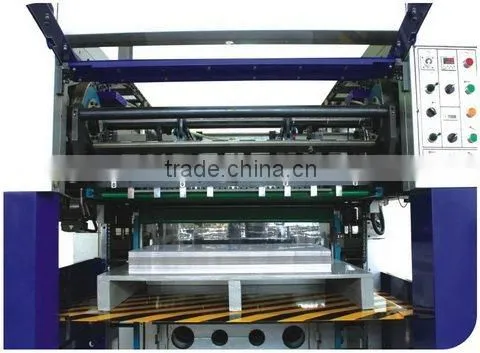

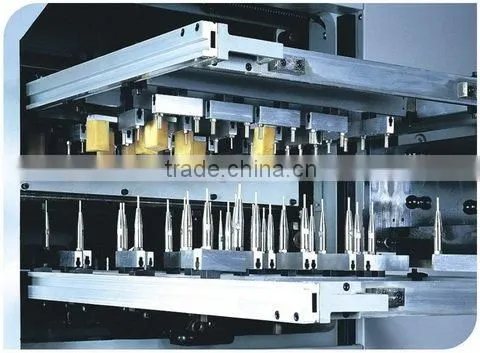

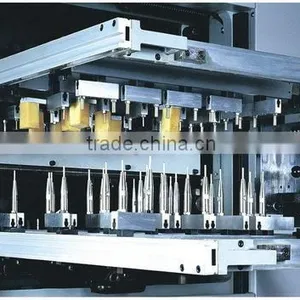

3).Press section • Closed chase with center-line device for fast positioning of the die. • Cutting plate 5 mm thickness. • Pressure control system,can be easily adjusted through touch screen.it has a security system to avoid any damage in the press. • Manual& automatic lubrication system. • 5 light weight gripper bars. • Turn-over bracket for cutting chase and honeycomb chase. • Pneumatic lock & release system for cutting chase and honeycomb plate. |
|
4).Delivery section • Non-stop device with automatic conveyor at delivery. |
4.suitable materials
| paper |
|
| carton board |
|
| corrugated board |
|
DGM
Worldwide Carton Converting EquipmentWith more than 20 years in the business,designing and producing folding gluing machines,die-cutting machines,hot foil-stamping machines and carton laminatior machines,hot foil-staming machines and carton laminator machines,DGM has became the leading supplier in Southeast Asia market and one of leading suppliers in China market.Based on this foundation,DGM machinery has its presence in over 25 countries with 5000 units sold.
1.bussiness development
| Founded in 1985 under the previous name:Taiwan Bi Cheng machinery,first Technofold ES series folder gluer into production. |
| 1986-1989started exporting to Southeast Asia |
| In1990 sold the first folder gluer in China,opened domestic market |
| 1993 Laminating machine ETH series into prosuction. |
| 2004 New 13,000sqm.facilities in Huizhou,Guangdong province |
| Well communicated with import cities like Hongkong,Shenzhen and Guangzhou |
| 2007CE certifications for all range of products |
| 2008 attended Drupa exhibition for the first time |
| 2012Smartfold series intelligent folder gluer into production.2.WORK SHOP |
shop
DGM
2008attend Drupa exhibition for the first time
2014attend DGM attend all in print china 2014 on ShangHai New International Expo Center
2015attend the 9th Beijing International Printing Technology exhibition ect.,
360°SERVICE A GLOBAL SOLUTION
DGM Machinery provide 360°services,Service process,DGM not only embodies in to presales service,such as helping the customer get to know DGM products,enhancing customer confidence in DGMproducts,knowing customers's individual needs etc.,but also in to aftersales service which is the most important aspect to make a big gap from other carton converting manufactures.DGM's core afrer-sales service includes
