Automatic Sheet to Sheet Flute Laminating Machine

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Condition:

New

Application:

Other, Machinery & Hardware

Packaging Type:

Cartons, Case

Huizhou Degang Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Application Other, Machinery & Hardware

Packaging Type Cartons, Case

Packaging Material Paper

Automatic Grade Automatic

Driven Type Mechanical

Voltage 380

Power 15.7kw

Place of Origin Guangdong, China

Brand Name DGM

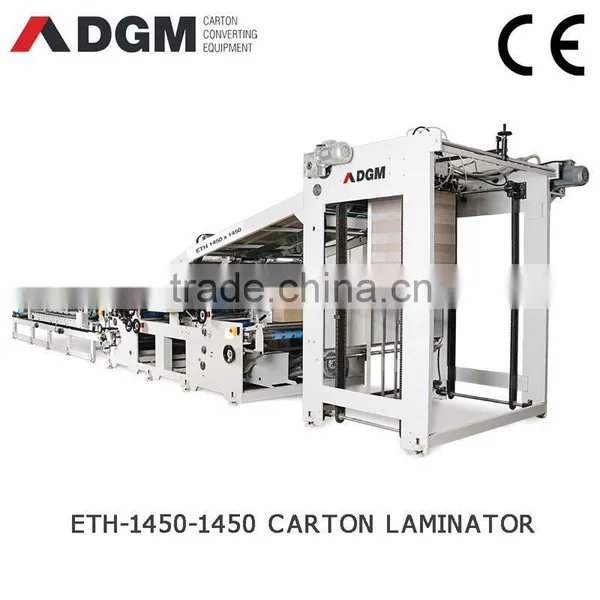

Model Number ETH1450-1450

Dimension(L*W*H) 14.32*2.41*2.66m

Weight 7.8Ton, 7.8Ton

Certification CE

After-sales Service Provided Engineers available to service machinery overseas

Specifications

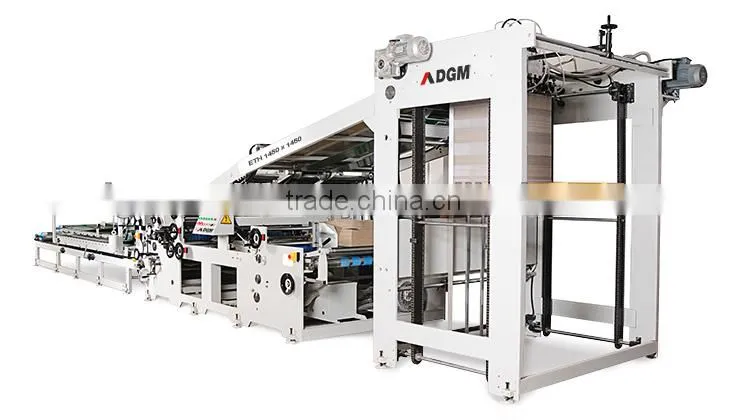

Automatic sheet to sheet flute laminating machine
This carton flute laminating machine is suitable from size 1300 to 1650mm.

Automatic sheet to sheet flute laminating machine

ETH Series

1. Introduction

Easy to operate and quick set-up. Suitable for all packaging industry,display floor stands,sidewalk signs,outdoor displays,poster displays,etc...

2.Technical parameters

Specifications

Key Components

Picture	Description
	1). Sheet Feeder : • Total height 2600-2680mm. • Streaming feeding suction head. • Feeder bridge with double sheet detector. • 8 sets of lifting suckers. • 4 sets of joggers and spring type side guide to control and transfer the substrate. • Side guide metering adjustment for flute width setting.
	2).Flute feeder • Friction feeder system by perforated belts and suction(Power 2.2 kw). • Brake system by electromagnetic clutch. • Registration System with micrometer adjustment for excellent register when laminating cardboard with cardboard.
	3).Lamination Unit • Main motor power 5.5kw. • Coater consists of 2 rollers,the glue comes from the top unit reach the gap between the application roller and metering roller. • The glue flow that is pumped out is controlled by a sensor. • Washing roller,it is used to remove unwanted glue stains from pressing cylinder,avoiding the flute to stain. • Laminating precision +/-1.5m.
	4).Pressure conveyor unit • Total length 5,100-6000 mm. • Independent motorized (total power 2.2kw) • Conveyor system with uniform and balanced pressure to ensure optimum quality in any type of work to be processed. • Upper conveyor moves back and forward.
