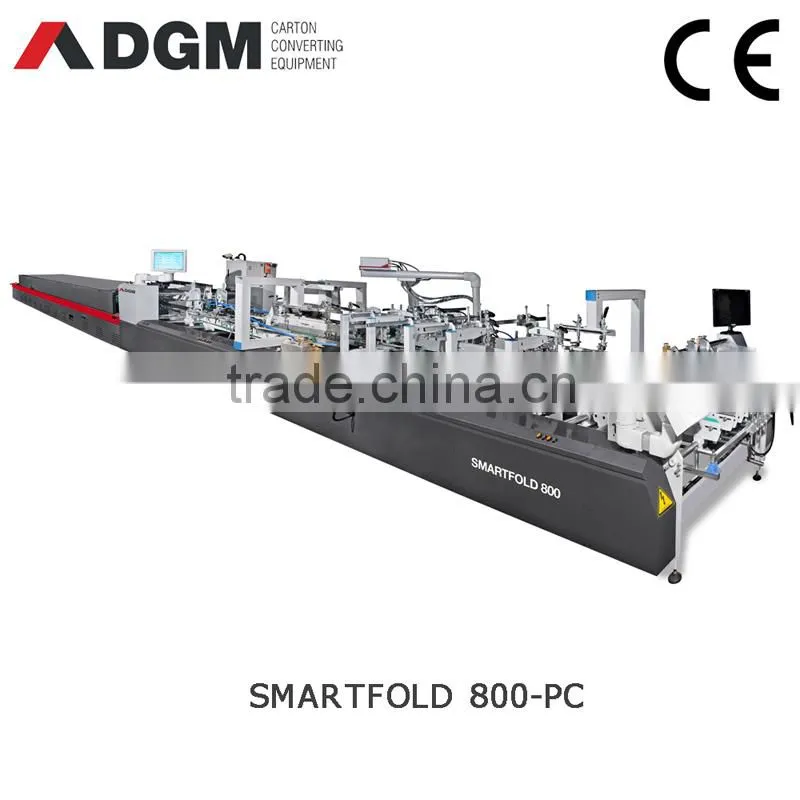

SMARTFOLD Series it is specially indicated for the most demanding packaging companies,commercial printers and finishers.It is optimaized to run small&medium sized boxes like the ones used in pharmaceutical ot cosmetic industries.It is flexble to operate and it comes with a state of the art technology and electronics.The standard version includes the accessories for straight line and crash lock bottom boxes.It is flexible and easy to operate.
1.Specification
| Processed materials | |
| Carton board | max .800gsm |
| Corrugated flute tyep | N,E & F |
| Capablity | |
| Speed | max. 280m/min |
| Inching speed | 10m/min |
| Thickness of folded box | max. 12mm |
| Blank width | 100-800mm |
| Dimensions & Weight | |
| Length | 14m |
| Width | 1.5m |
| Height | 1.35m |
| Net Weight | 8.4Ton |
| Installation | |
| Electrical connected load | 9.4KW |
| Compressed air | 6 bar |
| Air compressor capacity | 10 m³/h |
| Air tank capacity | 60L |
2.key components
| Picture | Description |
|
1. Feeder section: • Independent and motorized friction feeder with variable speed. • Adjustable electronic pile vibrator. • Side feed gates fully adjustable to the width of the blank. • Two adjustable front feed knives. |
|
2.Side register section
• Independent section with an unparallel lower carrier that guides the box to a handrail that allows a perfect blank alignment.
|
|
3.Pre-folding section: • Left hand glue flap pre-folder up to 180º. • Third crease line pre-folder up to 135º. • 1st and 3rd crease openers. |
|

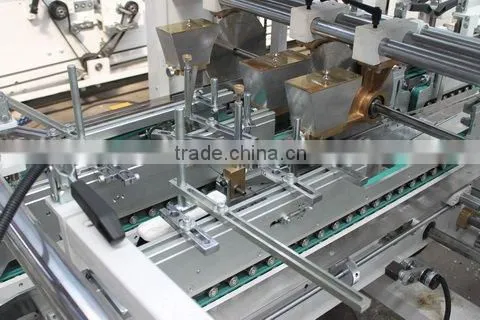

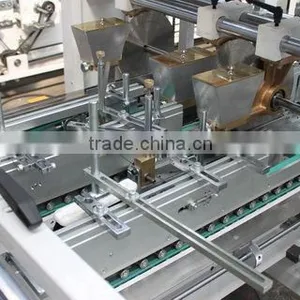

4.Crash lock bottom section • Complete set of folding hooks and helixes to fold the front flaps of the blank smooth and accurately. • Set of accesories for B-type lock bottom. |
|
5.Lower gluing Unit • One lower(left side) gluing tank. • Easy to remove and clean • Electronic upper gluing system by guns. |
|
6.Upper gluing unit • Double Upper gluing system by disc. • Easy to remove and clean.
|
|
|
7. Folding and Closing section: • Smooth and accurate folding of 2nd and 4th creases . • Outer folding belts adjustable up to 180º with variable speed. • Two upper & two lower carriers with 25 mm lower and 30 mm outer belts. • Width-wise adjustable heavy duty compression rollers(optional). |
|
|
8.Trombone section: • Upper and lower drive mechanism for length adjustment. • Equipped with automatic belt tension-adjusting system. • Continuous and automatic box collection mechanism that ensures a neat transfer to the Press section, guaranteeing a well aligned flow. |
|
9.Press section(Delivery section): • Independent and motorized press section. • Manual and Automatic mode(follow up). • Upper section moves back and forward allowing for different box length. • 3.2 meters total length with 2 meters effective pressure length. • Pneumatic pressure adjustment. |
With more than 20 years in the business,designing and producing folding gluing machines,die cutting machines,hot foil-stamping machines and carton laminator machines,DGMhas became the leading supplier in Southeast Asia market and one of leading suppliers in China market.Based on this foundation,DGM machinery has its presence in over 25 countries with 5000 unit sold.
-Founded in 1985 under the previous name:Taiwan BiCheng machinery,first Technofold ES series folder gluer into producation.
-1986-1989 started exporting to Southeast Asia
-In 1990 sold the first folder gluer in China,opened domestic market
-1993 Laminating machine ETH series into production
-1998 Automatic die-cutter Technocut series into production.
-2004 New 13,000sqm.facilities in HuiZhou,GuangDONG province.
-Well communicated with important cities like HongKong,ShenZhen and Guangzhou
-2007 CE certifications for all range of products
-2008 attended Drupa exhibition for the first time
-2010Smartfold series intlligent folder into production.

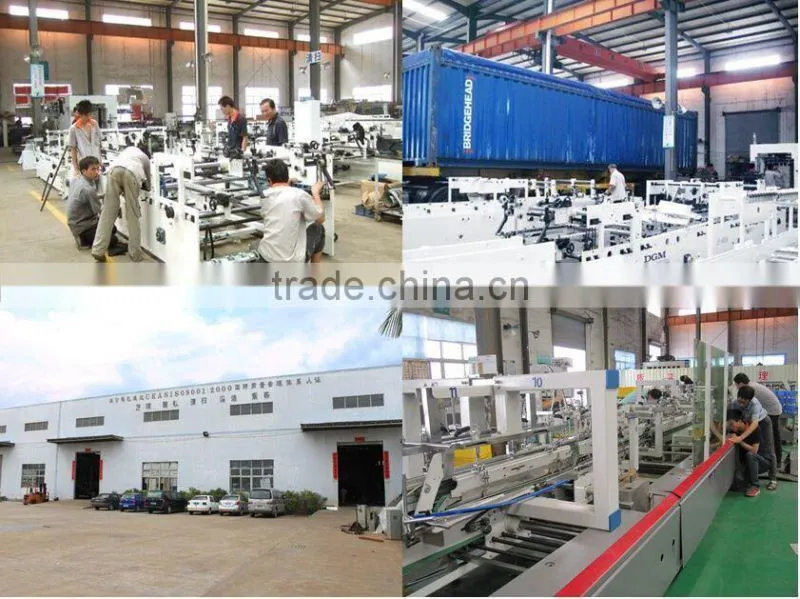

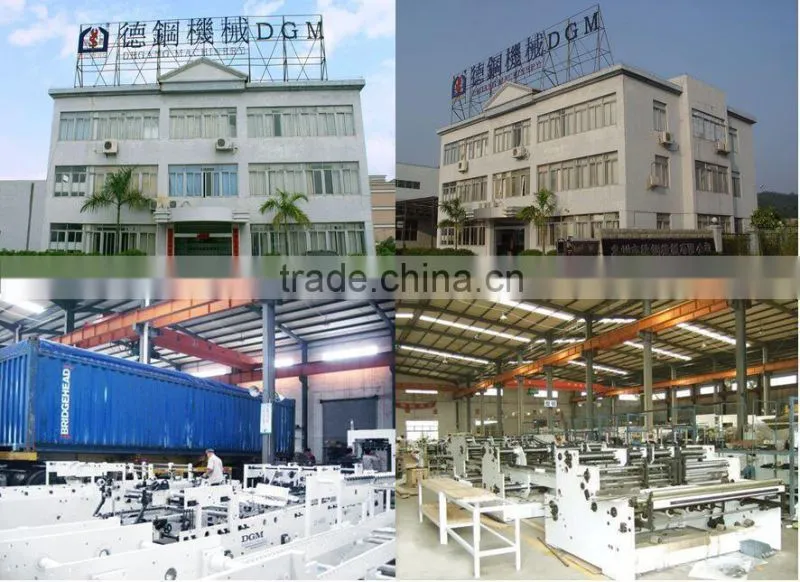

Workshop
DGM Machinery provides 360°services.Service process,DGM not only embodies in to presales service,such as helping the customer get to know DGM products,enhangcing customer confidence in DGM products,knowing customers individual needs etc but also in to aftersales which is the most important aspect to make a big gap from other carton converting manufactures.DGM after sales service includes:
1.Techical services
2.Training
3.In-depth inspection and Maintenance
4.Spare parts and consumables
5.Machine improvements
Huizhou De Gang Machinery Co.,ltd
HuiHuan Industrial Area.Huizhou City,Guangdog Province,China
Tel:(86)0752-2773780
