ES-1450-SL
ES Serise High-Speed automatic corrugated box folder gluer machine ES-1450-SL

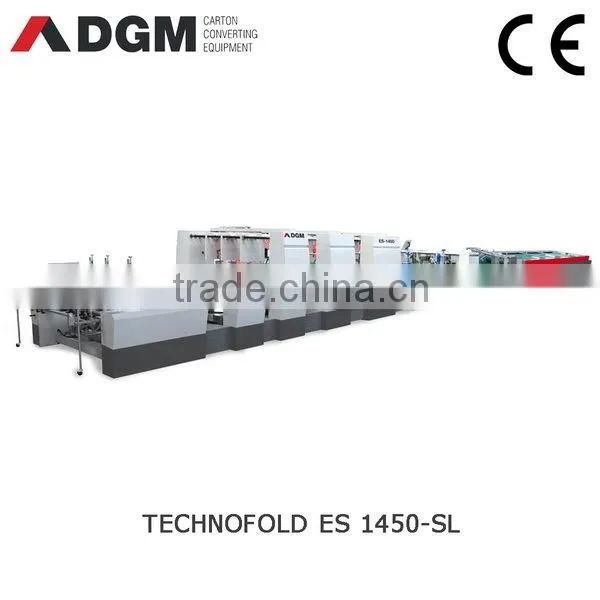

TECHNOFOLD ES 1450 SL
1. Introduction
ES 1450 is ideal to work with medium and large sized boxes in the heavy packaging industry.it offers the flexibility to run thin solid board to thick corrugated carton and with a wide range of accessories that allow to fold thousands of designs. It is an steady and precise machine but at the same time easy to set up and operate.
2.Technical parameters
Specifications
| Processed materials | |
| Carton board | max .1200gsm |
| Corrugated flute tyep | E,C,B,AB 3&5 layers |
| Capablity | |
| Speed | max. 200m/min |
| Inching speed | 10m/min |
| Thickness of folded box | max. 20mm |
| Blank width | 550-1450mm |
| Dimensions & Weight | |
| Length | 20m |
| Width | 2.2m |
| Height | 1.7m |
| Net Weight | 15Ton |
| Installation | |
| Electrical connected load | 25KW |
| Compressed air | 6 bar |
| Air compressor capacity | 15 m³/h |
| Air tank capacity | 60L |
BOXES
|
Straight Line
A:550-1450mm B:100-1200mm |
|
Lock-bottom Box
A:650-1450mm B:max.1200mm C:min.90mm D:40-200mm
|
|
4-corner Box
A:350-1450mm B:170-1100mm C:40-160mm D:270-1130mm |
|
6-corner Box
A:590-1450mm B:300-1100mm C:45-200mm D:220-425mm
|
Key Components
| Picture | Description |
|
1). Feeder section:
|
|
2.Side register section
|
|
3.Pre-folding section:
|
|
4.Crash lock bottom section
|
|
5.Lower gluing Unit
|
|
6.Upper gluing unit
|
|
|
7. Folding and Closing section:
|
|
|
8.Trombone section:
|
|
9.Press section(Delivery section):
|
|
10)4 and 6-corner device
|
DGM WORLDWIDE CARTON CONVERTING EQUIPMENT
With more than 20 years in the business, designing and producing folding gluing machines, die-cutting machines, hot foil-stamping machines and carton laminator machines, DGM has became the leading supplier in Southeast Asia market and one of leading suppliers in China market. Based on this foundation, DGM machinery has its presence in over 25 countries with 5000 units sold.
Bussiness development
|
• Founded in 1985 under the previous name:
Taiwan Bi Cheng machinery, first Technofold ES series folder gluer into production. |
|
• 1986-1989 started exporting to Southeast Asia. |
| • In 1990 sold the first folder gluer in China, opened domestic market. |
| • 1993 Laminating machine ETH series into production. |
| • 1998 Automatic die-cutter Technocut series into production. |
| • 2004 New 13,000 sqm.facilities in Huizhou,Guangdong province. |
|
• Well communicated with important cities like Hong Kong, Shenzhen and Guangzhou |
| • 2007 CE certifications for all range of products. |
| • 2008 attended Drupa exhibition for the first time. |
|
• 2012 Smartfold series intelligent folder gluer into production. |
GLOBAL SOLUTION
DGM Machinery provides 360 º services . Service process, DGM not only embodies in to pre-sales service, such as helping the customer get to know DGM products, enhancing customer confidence in DGM products, knowing customers’s individual needs etc.,but also in to after-sales service which is the most important aspect to make a big gap from other carton converting manufactures. DGM’s core after-sales service includes:
• Technical services
• Training
• In-depth inspection and Maintenance
• Spare parts and consumables.
• Machine improvements
CONTACT
Huizhou De Gang Machinery Co.,ltd
HuiHuan Industrial Area, Huizhou City, Guangdong Province, China
Tel:(86) 0752-277 37 80
Fax:(86) 0752-277 37 78
