Specifications
1.Fully Automatic carton folder gluer2.Speed:Max 200m/min
3.Weight:13Tons
4.Total power:30KW
5.Blank width:550-1650mm

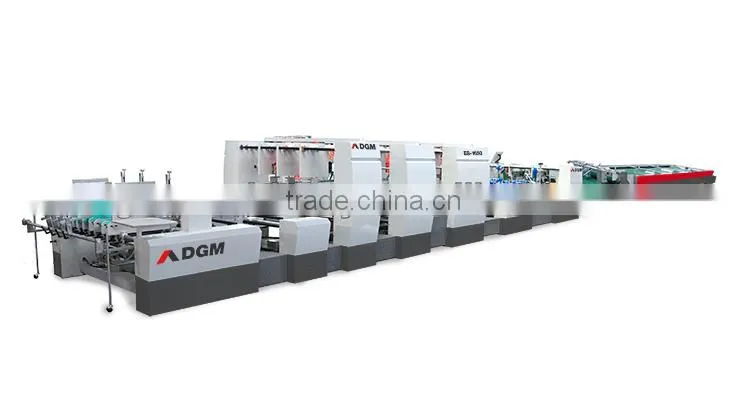

Automatic corrugated carton folder gluer machine

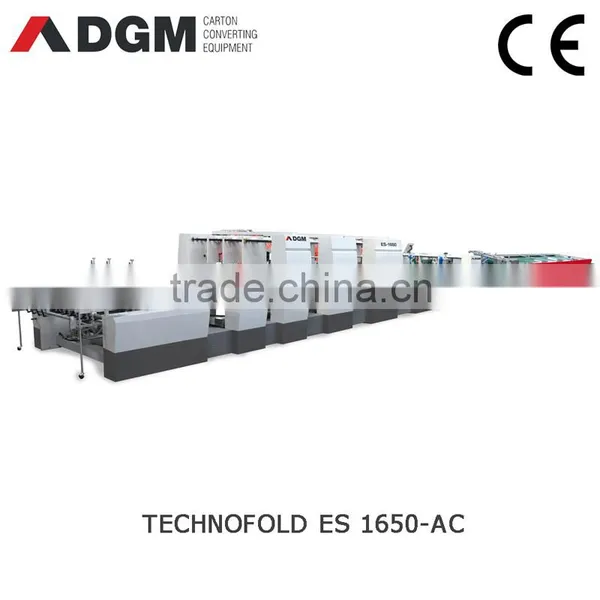

TECHNOFOLD ES 1650 AC
1. Introduction
ES 1650 ideal to work with large sized boxes in the heavy packaging industry.It offers the flexibility to run thin solid boards to thick corrugated carton and with a wide arrange of accessories that allow to fold thousands of designs.It is a steady and precise machine but at the same time easy to set up and operate.
2.Technical parameters
Specifications
| Processed materials | |
| Carton board | max .1200gsm |
| Corrugated flute tyep | C,E ,B,AB,3& 5 layers |
| Capablity | |
| Speed | max. 200m/min |
| Inching speed | 10m/min |
| Thickness of folded box | max. 20mm |
| Blank width | 550-1650mm |
| Dimensions & Weight | |
| Length | 17m |
| Width | 2.4m |
| Height | 1.7m |
| Net Weight | 13Tons |
| Installation | |
| Electrical connected load | 30KW |
| Compressed air | 6 bar |
| Air compressor capacity | 15 m³/h |
| Air tank capacity | 60L |
Key Components
| Picture | Description |
|
1. Feeder section: • Independent and motorized friction feeder with variable speed. • Adjustable electronic pile vibrator. • Side feed gates fully adjustable to the width of the blank. • Two adjustable front feed knives. |
|
.Independent section with unparallel lower carrier that guides the box to a handrail that allows a perfect blank alignment. |
|
2.Crash lock bottom section • Complete set of folding hooks and helixes to fold the front flaps of the blank smooth and accurately. • Set of accesories for B-type lock bottom. |
|
3.Lower gluing Unit • One lower(left side) gluing tank. • Easy to remove and clean • Electronic upper gluing system by guns. |
|
4.Upper gluing unit • Double Upper gluing system by disc. • Easy to remove and clean.
|
|
|
5. Folding and Closing section: • Smooth and accurate folding of 2nd and 4th creases . • Outer folding belts adjustable up to 180º with variable speed. • Two upper & two lower carriers with 25 mm lower and 30 mm outer belts. • Width-wise adjustable heavy duty compression rollers(optional). |
|
|
6.Trombone section: • Upper and lower drive mechanism for length adjustment. • Equipped with automatic belt tension-adjusting system. • Continuous and automatic box collection mechanism that ensures a neat transfer to the Press section, guaranteeing a well aligned flow. |
|
7.Press section(Delivery section): • Independent and motorized press section. • Manual and Automatic mode(follow up). • Upper section moves back and forward allowing for different box length. • 3.2 meters total length with 2 meters effective pressure length. • Pneumatic pressure adjustment. |
DGM WORLDWIDE CARTON CONVERTING EQUIPMENT
With more than 20 years in the business, designing and producing folding gluing machines, die-cutting machines, hot foil-stamping machines and carton laminator machines, DGM has became the leading supplier in Southeast Asia market and one of leading suppliers in China market. Based on this foundation, DGM machinery has its presence in over 25 countries with 5000 units sold.
Bussiness development
|
• Founded in 1985 under the previous name:
Taiwan Bi Cheng machinery, first Technofold ES series folder gluer into production. |
|
• 1986-1989 started exporting to Southeast Asia. |
| • In 1990 sold the first folder gluer in China, opened domestic market. |
| • 1993 Laminating machine ETH series into production. |
| • 1998 Automatic die-cutter Technocut series into production. |
| • 2004 New 13,000 sqm.facilities in Huizhou,Guangdong province. |
|
• Well communicated with important cities like Hong Kong, Shenzhen and Guangzhou |

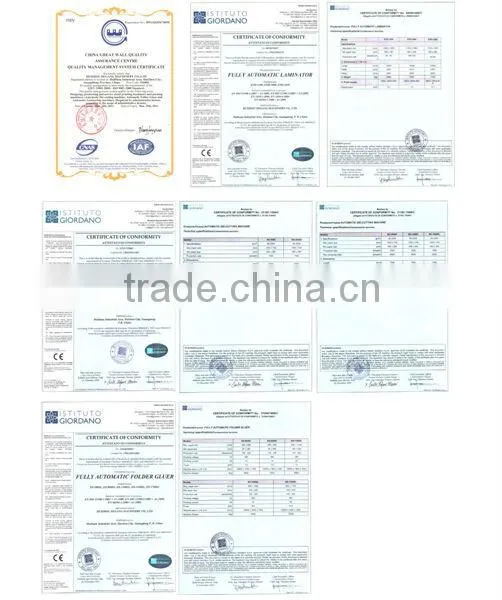

| • 2007 CE certifications for all range of products. |
| • 2008 attended Drupa exhibition for the first time. |
|
• 2012 Smartfold series intelligent folder gluer into production. |
GLOBAL SOLUTION
DGM Machinery provides 360 º services . Service process, DGM not only embodies in to pre-sales service, such as helping the customer get to know DGM products, enhancing customer confidence in DGM products, knowing customers’s individual needs etc.,but also in to after-sales service which is the most important aspect to make a big gap from other carton converting manufactures. Besides,DGM's machines are approved by CE and other international standard certifications.
MAIN SERVICES
|
• Technical services Technical services will be performed in all the aspects, from pre-sale process to after-sale process. According to every customer’s unique features and expectations, we give you customized suggestions and services. |
|
• Training DGM’s specialists can offer different trainings at our manufacture, or directly at customer’s facilities. We make sure your employees understand DGM equipment very well to guarantee your high efficiency and productivity. |
|
• In-depth inspection and Maintenance We talk for your facilities. Through all the detailed measurements and inspections. We inform you all the improvements,repairs and maintencance your facilities need. And through our maintenace, we predict all the potential problems, help your machine work smoothly with less downtime. |
|
• Spare parts and consumables. DGM has its well organized spare parts storage, all the parts are totally qualified and ready to sent to anywhere of the world. We guarantee the shortest delivery time and the best quality. Assembly instruction will be sent together with our spare parts. |
|
• Machine improvements In order to offer the best performance products to our customers, DGM never stops working on updating and improving our products. With more than 20 years of experience on the field, we are expert to improve your facilities for your specific jobs. |
DGM Machines are packed and loaded in standard 20 feet or 40 feet containers with seaworthy package.
|
|
