Specifications
1.ES SERIES ES-1650-SL pharmacy packaging machine2.Suitable for straight line ,Crash-lock bottom

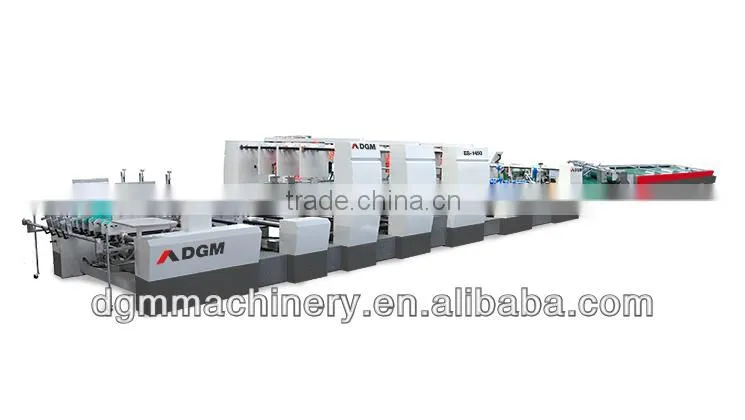

ES SERIES ES-1650-SL pharmacy packaging machine

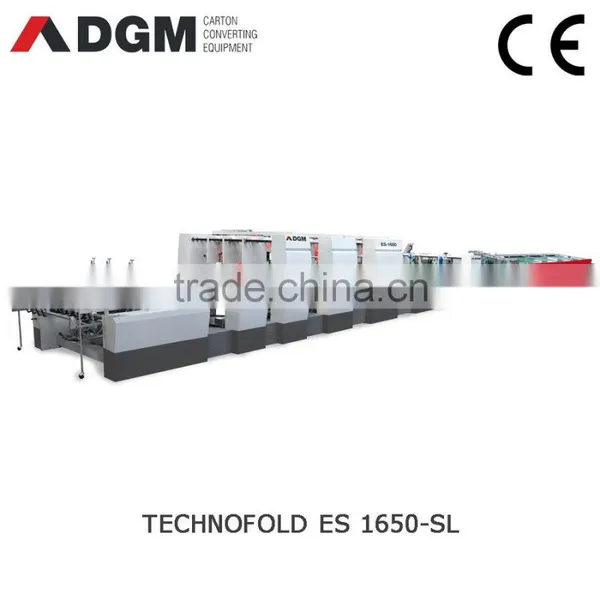

TECHNOFOLD ES 1650 SL
1. Introduction
ES 1650 Ideal to work with large sized boxes in the heavy packaging industry.it offers the flexibility to run thin solid board to thick corrugated carton and with a wide range of accessories that allow to fold thousands of designs. It is an steady and precise machine but at the same time easy to set up and operate.
2.Technical parameters
Specifications
| Processed materials | |
| Carton board | max .1200gsm |
| Corrugated flute tyep | E,C,B,AB 3&5 layers |
| Capablity | |
| Speed | max. 200m/min |
| Inching speed | 10m/min |
| Thickness of folded box | max. 20mm |
| Blank width | 550-1650mm |
| Dimensions & Weight | |
| Length | 20m |
| Width | 2.4m |
| Height | 1.7m |
| Net Weight | 15Ton |
| Installation | |
| Electrical connected load | 35KW |
| Compressed air | 6 bar |
| Air compressor capacity | 15 m³/h |
| Air tank capacity | 60L |
BOXES
|
Straight Line
A:550-1650mm B:100-1200mm |
|
Lock-bottom Box
A:650-1650mm B:max.1300mm C:min.100mm D:40-200mm
|
|
4-corner Box
A:350-1650mm B:180-1100mm C:40-200mm D:270-1250mm |
|
6-corner Box
A:590-1650mm B:300-1100mm C:50-200mm D:220-525mm
|
Key Components
| Picture | Description |
|
1). Feeder section: • Continous friction feeder with variable speed . • Adjustable electronic pile vibrator. • Lateral feed gates fully adjustable to the width of the blank. • Two adjustable front feed knives. |
|
2.Side register section • Independent section with an unparallel lower carrier that guides the box to a handrail that allows a perfect blank alignment. |
|
3.Pre-folding section:
• Left hand glue flap pre-folder up to 180º. • 3rd crease lin pre-folding up to 135º. • 1st and 3rd crease openers. |
|
4.Crash lock bottom section • Complete set of folding hooks and helixes to fold the front flaps of the blank smooth and accurately. • Set of accesories for B-type lock bottom. |
|
5.Lower gluing Unit
• Two lower(left and right) gluing tanks. • Easy to remove and clean |
|
6.Upper gluing unit • Double upper gluing system by disc. • Easy to remove and clean.
|
|
|
7. Folding and Closing section:
• Smooth and accurate folding of 2nd and 4th creases . • Outer folding belts adjustable up to 180º with variable speed. • Two upper & two lower carriers with 40 mm lower and 80 mm outer belts. • Width-wise adjustable heavy duty compression rollers. |
|
|
8.Trombone section: • Upper and lower drive mechanism for length adjustment. • Equipped with automatic belt tension-adjusting system. • Continuous and automatic box collection mechanism that ensures a neat transfer to the Press section, guaranteeing a well aligned flow. |
|
9.Press section(Delivery section): • Independent and motorized press section. • Manual and Automatic mode(follow up). • Upper section moves back and forward, allowing for different box length. • 6.5 meters total length with 4.7 meters effective pressure length. • Pneumatic pressure adjustment. |
|
10)4 and 6-corner device •Motorized and untimed electronic back folding system with intelligent servo motor technology. |
DGM WORLDWIDE CARTON CONVERTING EQUIPMENT
With more than 20 years in the business, designing and producing folding gluing machines, die-cutting machines, hot foil-stamping machines and carton laminator machines, DGM has became the leading supplier in Southeast Asia market and one of leading suppliers in China market. Based on this foundation, DGM machinery has its presence in over 25 countries with 5000 units sold.
Bussiness development
|
• Founded in 1985 under the previous name: Taiwan Bi Cheng machinery, first Technofold ES series folder gluer into production. |
|
• 1986-1989 started exporting to Southeast Asia. |
| • In 1990 sold the first folder gluer in China, opened domestic market. |
| • 1993 Laminating machine ETH series into production. |
| • 1998 Automatic die-cutter Technocut series into production. |
| • 2004 New 13,000 sqm.facilities in Huizhou,Guangdong province. |
|
• Well communicated with important cities like Hong Kong, Shenzhen and Guangzhou |
| • 2007 CE certifications for all range of products. |
| • 2008 attended Drupa exhibition for the first time. |
| • 2012 Smartfold series intelligent folder gluer into production. |
GLOBAL SOLUTION
DGM Machinery provides 360 º services . Service process, DGM not only embodies in to pre-sales service, such as helping the customer get to know DGM products, enhancing customer confidence in DGM products, knowing customers’s individual needs etc.,but also in to after-sales service which is the most important aspect to make a big gap from other carton converting manufactures. DGM’s core after-sales service includes:
• Technical services
• Training
• In-depth inspection and Maintenance
• Spare parts and consumables.
• Machine improvements
CONTACT
Huizhou De Gang Machinery Co.,ltd
HuiHuan Industrial Area, Huizhou City, Guangdong Province, China
Tel:(86) 0752-277 37 80
Fax:(86) 0752-277 37 78
