Specifications
SMARTFOLD 1100 folding carton box gluing machineused in medicine,cosmetic industries,straight line,without pre-folding

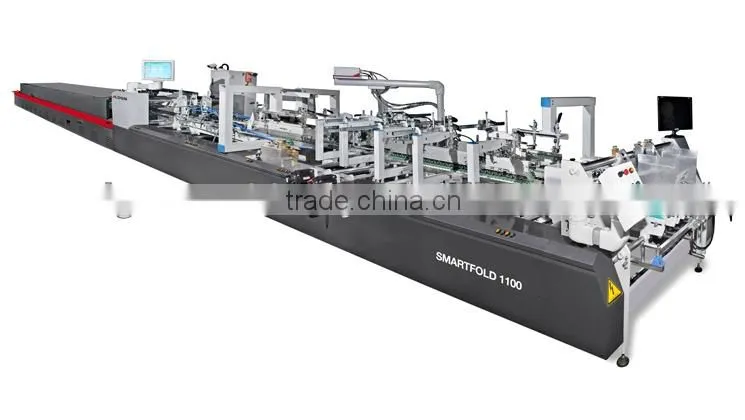

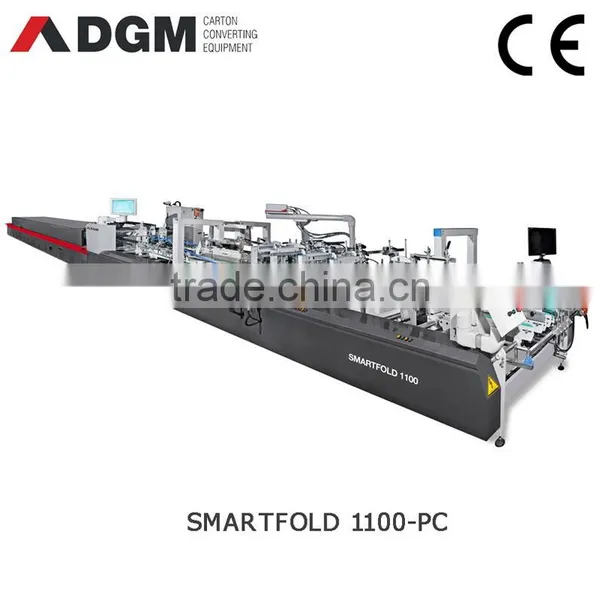

SMARTFOLD 1100 folding carton box gluing machine
1. Introduction
SMARTFOLD 1100 is specially indicated for the most demanding packaging companies, commercial printers and finishers. It is optimized to run small & medium sized boxes like the ones used in pharmaceutical or cosmetic industries.It is flexible to operate and it comes with a state of the art technology and electronics.The standard version includes the accessories for straight line and crash lock bottom boxes.It is flexible and easy to operate.
2.Technical parameters
Specifications
| Processed materials | |
| Carton board | max .800gsm |
| Corrugated flute tyep | N,E & F |
| Capablity | |
| Speed | max. 400m/min |
| Inching speed | 10m/min |
| Thickness of folded box | max. 20mm |
| Blank width | 126-1100mm |
| Dimensions & Weight | |
| Length | 15m |
| Width | 1.7m |
| Height | 1.9m |
| Net Weight | 4.5Ton |
| Installation | |
| Electrical connected load | 15KW |
| Compressed air | 6 bar |
| Air compressor capacity | 10 m³/h |
| Air tank capacity | 60L |
BOXES
|
Straight Line A:126-1100mm B:60-800mm |
|
Lock-bottom Box A:146-1100mm B:max.700mm C:min.60mm D:20-180mm
|
Key Components
| Picture | Description |
|
1). Feeder section: • Independent and motorized friction feeder with variable speed. • Adjustable electronic pile vibrator. • Side feed gates fully adjustable to the width of the blank. • Two adjustable front feed knives. |
|
2).Side register section • Independent section with an unparallel lower carrier that guides the box to a parallel handrail that allows a perfect blank alignment. |
|
|
3).Pre-folding section: • Left hand glue flap pre-folder up to 180º. • Third crease line pre-folder up to 135º. • 1st and 3rd crease openers. |
|
|
4).Crash lock bottom section • Complete set of folding hooks and helixes to fold the front flaps of the blank smooth and accurately. • Set of accesories for B-type lock bottom. |
|
|
5)Lower gluing Unit • One lower(left side) gluing tank. • Easy to remove and clean • Electronic upper gluing system by guns.
|
|
|
6). Folding and Closing section: • Smooth and accurate folding of 2nd and 4th creases . • Outer folding belts adjustable up to 180º with variable speed. • Two upper & two lower carriers with 25 mm lower and 30 mm outer belts. • Width-wise adjustable heavy duty compression rollers(optional). |
|
|
7).Trombone section: • Upper and lower drive mechanism for length adjustment. • Equipped with automatic belt tension-adjusting system. • Continuous and automatic box collection mechanism that ensures a neat transfer to the Press section, guaranteeing a well aligned flow. |
|
|
8.Press section(Delivery section): • Independent and motorized press section. • Manual and Automatic mode(follow up). • Upper section moves back and forward allowing for different box length. • 3.2 meters total length with 2 meters effective pressure length. • Pneumatic pressure adjustment. |
