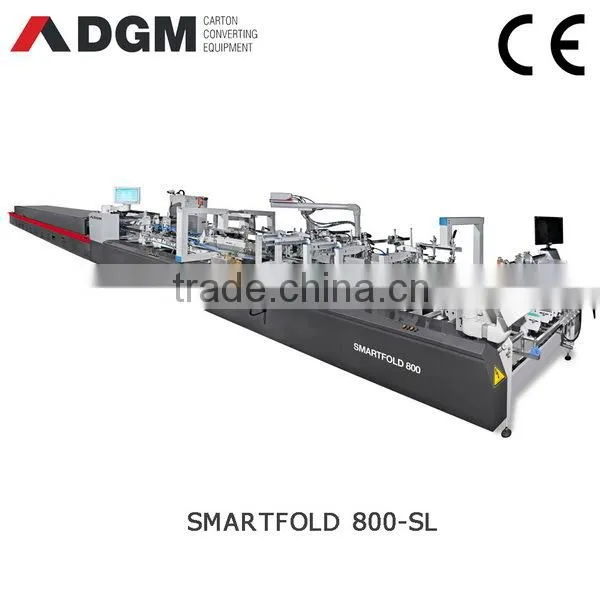

Smartfold 800-SL corrugated carton box folder gluer machine
- 20 Set / Sets per Month
- Shenzhen
- T/T
- Non-woven PUR Hot Melt Laminating Machine for Fabric/film/garment/sofa/mattress/underwear
- Automatic PUR Hot Melt Laminating Machine for medical fabric laminating machine
- PUR hot melt Laminating Machine for automotive interior parts lamination
- PUR hot melt laminating machine for Nonwoven/Film/foam/Fabric/EVA/PU/PP
- Automatic Hot Melt Coating Machine for medical fabric laminating machine
- Fabric/film/non-woven Hot Melt Coating Machine for garment/sofa/mattress/underwear
Product Details
Condition: | New | Application: | Other, Machinery & Hardware | Packaging Type: | Cartons |
Packaging Material: | Paper | Automatic Grade: | Automatic | Driven Type: | Mechanical |
Voltage: | 380V | Power: | 15KW | Place of Origin: | Guangdong, China |
Brand Name: | DGM | Model Number: | SMARTFOLD 800-SL | Dimension(L*W*H): | 15 x 1.40 x 1.8m |
Weight: | 4.4 T | Certification: | CE | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

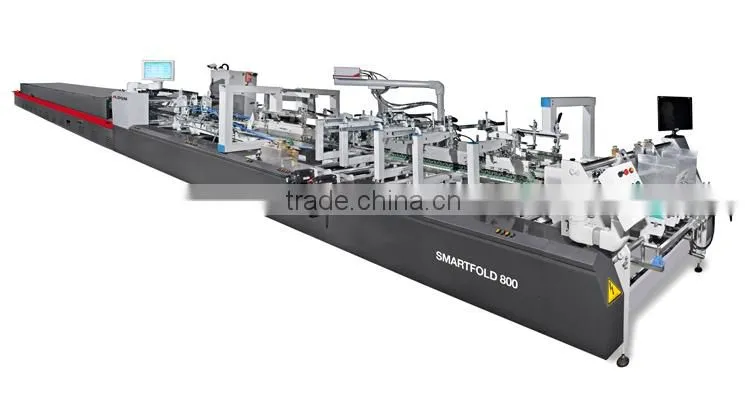

Smartfold 800-SL corrugated carton box folder gluer machine
SMARTFOLD 800
1. Introduction
SMARTFOLD 800 It is specially indicated for the most demanding packaging companies, commercial printers and finishers. It is optimized to run small & medium sized boxes like the ones used in pharmaceutical or cosmetic industries.It is flexible to operate and it comes with a state of the art technology and electronics.The standard version includes the accessories for straight line and crash lock bottom boxes.It is flexible and easy to operate.
2.Technical parameters
Specifications
Processed materials | |
Carton board | max .800gsm |
Corrugated flute tyep | N,E & F |
Capablity | |
Speed | max. 400m/min |
Inching speed | 10m/min |
Thickness of folded box | max. 20mm |
Blank width | 800mm |
Dimensions & Weight | |
Length | 15m |
Width | 1.4m |
Height | 1.8m |
Net Weight | 4.4Ton |
Installation | |
Electrical connected load | 15KW |
Compressed air | 6 bar |
Air compressor capacity | 10 m³/h |
Air tank capacity | 60L |
BOXES
Straight Line A:126-800mm B:60-800mm | |
Lock-bottom Box A:146-800mm B:max.700mm C:min.60mm D:20-180mm
| |
4-corner Box A:120-800mm B:130-660mm C:20-150mm D:80-500mm | |
6-corner Box A:120-800mm B:130-660mm C:30-150mm D:80-175mm |
Key Components
Picture | Description |
1). Feeder section:
| |
2).Side register section
| |
3).Pre-folding section:
| |
4).Crash lock bottom section
| |
5)Lower gluing Unit
| |
6). Folding and Closing section:
| |
7).Trombone section:
| |
8.Press section(Delivery section):
| |
9).4 and 6-corner device
| |
10).Servo-motor of back folding device . |
DGM WORLDWIDE CARTON CONVERTING EQUIPMENT
With more than 20 years in the business, designing and producing folding gluing machines, die-cutting machines, hot foil-stamping machines and carton laminator machines, DGM has became the leading supplier in Southeast Asia market and one of leading suppliers in China market. Based on this foundation, DGM machinery has its presence in over 25 countries with 5000 units sold.
Bussiness development
• Founded in 1985 under the previous name: Taiwan Bi Cheng machinery, first Technofold ES series folder gluer into production. |
• 1986-1989 started exporting to Southeast Asia. |
• In 1990 sold the first folder gluer in China, opened domestic market. |
• 1993 Laminating machine ETH series into production. |
• 1998 Automatic die-cutter Technocut series into production. |
• 2004 New 13,000 sqm.facilities in Huizhou,Guangdong province. |
• Well communicated with important cities like Hong Kong, Shenzhen and Guangzhou |
• 2007 CE certifications for all range of products. |
• 2008 attended Drupa exhibition for the first time. |
• 2012 Smartfold series intelligent folder gluer into production. |
GLOBAL SOLUTION
DGM Machinery provides 360 º services . Service process, DGM not only embodies in to pre-sales service, such as helping the customer get to know DGM products, enhancing customer confidence in DGM products, knowing customers’s individual needs etc.,but also in to after-sales service which is the most important aspect to make a big gap from other carton converting manufactures. DGM’s core after-sales service includes:
• Technical services
• Training
• In-depth inspection and Maintenance
• Spare parts and consumables.
• Machine improvements
