Auto Bender Machine For Die Cutting Technocut1050

FOB Price

Negotiable / Set

1 Set(Min.Order)

Supply Ability 15 Set / Sets per Month
Port ShenZhen
Payment TermsT/T

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Paper Cutting Machine
Automatic Grade	Automatic	Place of Origin	Guangdong, China
Brand Name	DGM	Model Number	TECHNOCUT1050
Voltage	380v	Power(W)	15kw
Dimension(LWH)	61m4.5m2.45m	Weight	15TON
Certification	CE	Warranty	12Month
After-sales Service Provided	Engineers available to service machinery overseas

Product Description

DIE CUTTING TECHONOCUT 1050

Product Description

1. Introduction

TECHNOCUT 1050 Automatic Die Cutting Machine. It can run large formats.High precision,high speed,easy to operate,quick changeovers,durability and stable performance. Features that make this machine one of the best options available.

2.SPECIFICATIONS

Carton board min	80g/m²
Carton board max	2000g/m
corrugated board max	4mm
sheet size min	360*400mm
sheet size max	740*1050mm
speed	7500s/h
cutting force	300ton
cutting size max	730*1040mm
gripper margin min	9.5mm
feeder	160mm
delivery	1300mm
compressed air	8bar
Air compressor capacity	15m³/h
Air tank capacity	100L
lengthwidthHeight	6.1m4.2m2.45m
Net wight	15ton

3.key components

Components	Description

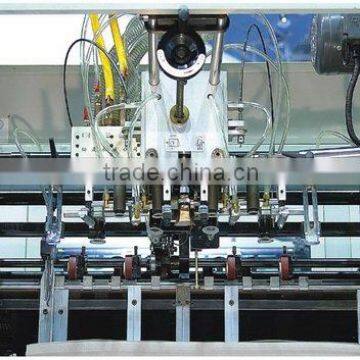

	1). Feeder section: • Automatic feeder with non-stop system. • Pallet & cart direct load • 4 lift-up and 4 delivery suckers,designed to handle a wide range of materials from paper to corrugated board. They guarantee the accuracy,reliability and smoothness of paper feeding. • Double sheet detector.

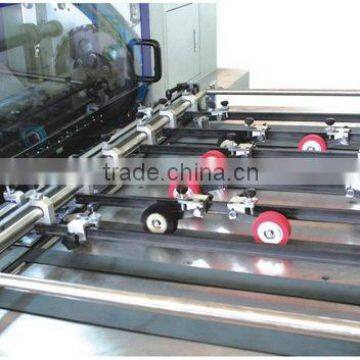

	2).Register table • Side-register table with 6 belts. • 2 register side guides working with pulling and pushing system. • 2 register front lays,independently adjustbale.

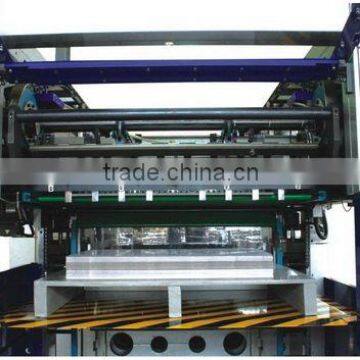

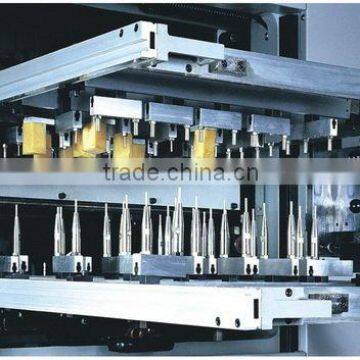

	3).Press section • Closed chase with center-line device for fast positioning of the die. • Cutting plate 5 mm thickness. • Pressure control system,can be easily adjusted through touch screen.it has a security system to avoid any damage in the press. • Manual& automatic lubrication system. • 5 light weight gripper bars. • Turn-over bracket for cutting chase and honeycomb chase. • Pneumatic lock & release system for cutting chase and honeycomb plate.

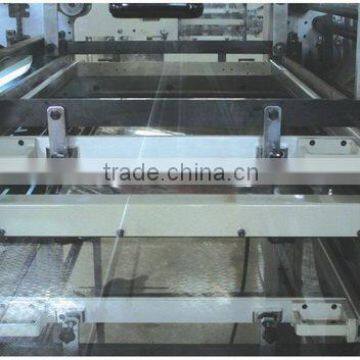

	4).Delivery section • Non-stop device with automatic conveyor at delivery.

4.suitable materials

paper
carton board
corrugated board

Company Information

DGM

1.bussiness development

Founded in 1985 under the previous name:Taiwan Bi Cheng machinery,first Technofold ES series folder gluer into production.

1986-1989started exporting to Southeast Asia

In1990 sold the first folder gluer in China,opened domestic market

1993 Laminating machine ETH series into prosuction.

2004 New 13,000sqm.facilities in Huizhou,Guangdong province

Well communicated with import cities like Hongkong,Shenzhen and Guangzhou

2007CE certifications for all range of products

2008 attended Drupa exhibition for the first time

2012Smartfold series intelligent folder gluer into production.2.WORK SHOP

shop

Our Services

GLOBAL SOLUTION

DGM Machinery provides 360 º services . Service process, DGM not only embodies in to pre-sales service, such as helping the customer get to know DGM products, enhancing customer confidence in DGM products, knowing customers’s individual needs etc.,but also in to after-sales service which is the most important aspect to make a big gap from other carton converting manufactures. DGM’s core after-sales service includes:
• Technical services

• Training

• In-depth inspection and Maintenance

• Spare parts and consumables.

• Machine improvements

CONTACT

Huizhou De Gang Machinery Co.,ltd
HuiHuan Industrial Area, Huizhou City, Guangdong Province, China
Tel:(86) 0752-277 37 80
Fax:(86) 0752-277 37 78
