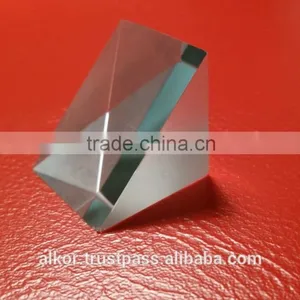

Right Angle Prism

Right Angle Prism thumbnail-1
Right Angle Prism photo-1
US$ 15 - 30 MOQ: 20 Pieces
Key Specifications
Get Latest Price
Place of Origin:
Saint Petersburg, Russian Federation
Brand Name:
Alkor
Model Number:
RihgtA-12.7
Contact Supplier Request Quote Chat Now
Ooo Alkor Technologies
Payment & Shipping
Payment Methods:
Port of Shipment:
Saint-Petersburg
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Saint Petersburg, Russian Federation
Brand Name Alkor
Model Number RihgtA-12.7
Material Fused Silica
Surface Quality 60/40
Dimension Tolerance 0/-0.1mm
Angle Tolerance 3 Arcmin
Flatness 1/4 Lambda

Right Angle Prisms for IR applications

Alkor Technologies supplies Right Angle Prisms made of CaF2, IR grade Fused Silica, CVD ZnSe and optical crystals. Right angle prisms are generally used to bend image paths or redirect light at 90°.

Right Angle Prisms produce inverted or reverted left handed images, depending on the orientation of the prism. Using two Prisms together is ideal for image or beam displacement applications. These prisms are also known as image reflection or reflecting prisms. Aluminum reflection coatings are available for the Prism’s hypotenuse to increase reflectivity. Anti-reflection coatings are available for the Prism’s faces to decrease reflectivity.



Standard size A=B=Height=25.4mm but for sure we will produce custom prism according to your specifications.

CaF2 right angle prism

Part number: CaF2_RightA_prism_25.4

A=B=25.4mm

Material: CaF2 IRgrade
SQ 80/50 scr-dig

IR grade Fused Silica right angle prisms

Part number: IRFS_RightA_prism_25.4

Material: Fused Silica, IR grade
A=B=25.4mm
SQ 60-40 scr-dig

Silicon right angle prism

Part number: Si_RightA_prism_25.4
Material: Silicon
A=B=25.4mm
SQ 60-40 scr-dig

ZnSe right angle prism

Part number: ZnSe_RightA_prism_25.4

Material: ZnSe, IR grade
A=B=25.4mm
SQ 60-40 scr-dig
