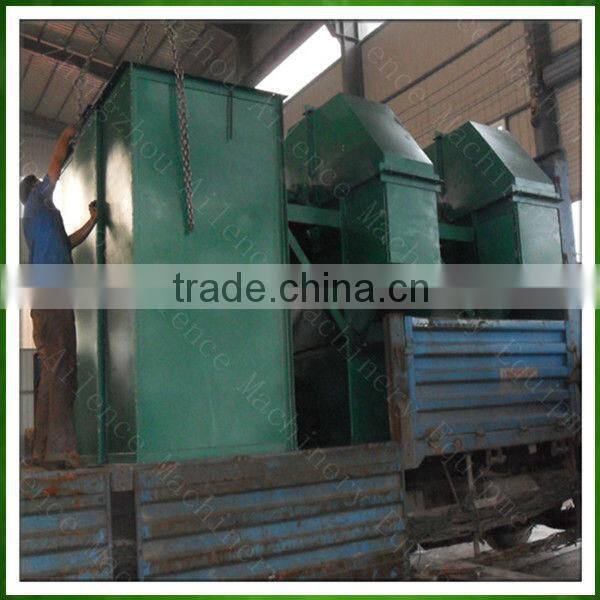

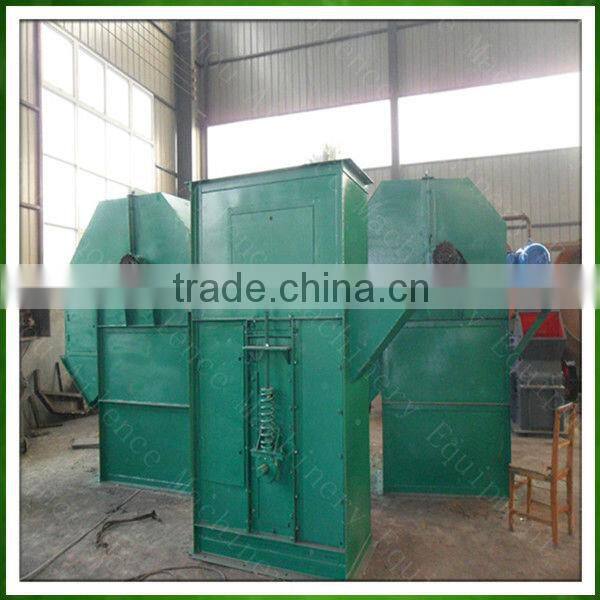

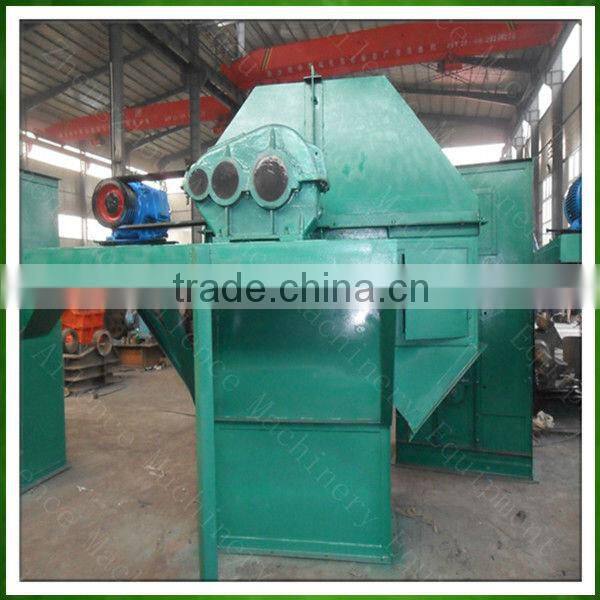

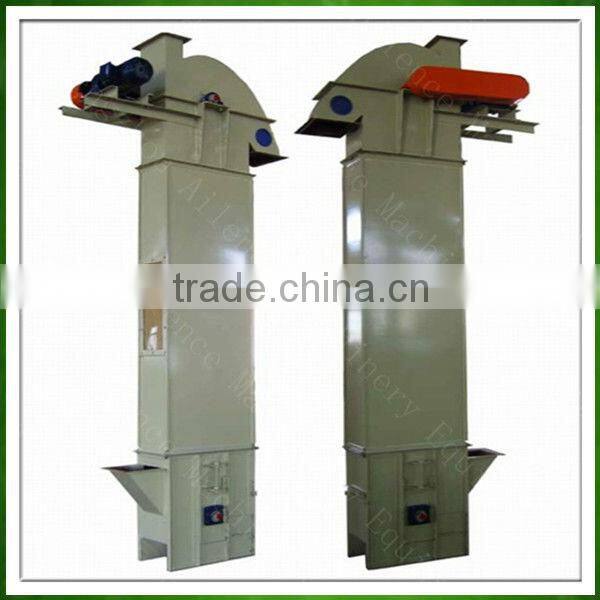

Help CenterModified Bucket Elevator
Related Products
-
Compact Structure Pellet Bagging MachineUS$ 5,000 - 9,000MOQ: 1 Set -
Compare Large Capacity and Worldwid Popularity Vertical Packaging MachineryUS$ 5,000 - 9,000MOQ: 1 Set
-
Automatic Packaging MachineUS$ 5,000 - 9,000MOQ: 1 Set
-
High Quality Semi-Automatic PackagerUS$ 5,000 - 9,000MOQ: 1 Set
-
High Quality Packaging Machinery Made in ChinaUS$ 5,000 - 9,000MOQ: 1 Set
Specifications
Bucket elevator1Based on the D type bucket elevator , development of new type bucket elevator
2,Comply with relevant standard
Company profile:
China.Zhengzhou Ailence Machinery Equipment CO.LTD was located in the capital city of zhengzhou in henan . Beijing-guangzhou railway and the longhai railway intersect at Zhengzhou, the traffic is very convenient .Our engineers have more than 10 years guidence experience.We will try our best to satisfy your needs!
Description of bucket elevator:
This bucket elevator adapts the centrifugal discharging or mixed way, for conveying bulk density is not greater than 1.5 t/ m³ of powder, granular, small block of low grinding cut raw material, the temperature of the material shall not exceed 60 degrees, such as grain, coal, cement, crushed stones, hoisting height to 40 m .The hooper of this series bucket elevator have four forms , and transport efficiently .
User can choose appropriate hopper according to material features.
The characteristics of bucket elevator:
(1) Wide range of application .
(2) Small drive power. The large capacity of hopper intensive layout , so less reactive power .
(3) Long service life .Flow type of feeding, not need to use bucket dig , seldom occurs between material extrusion and collision.
(4) Advanced design principle and processing methods . Allows for conveying high temperature materials .
Working principle of bucket elevator:
| Specification | Large amount of height (M) | Delivery value( m³ /H) |
Pitch of buckets(MM) |
Motor power(KW) |
| 160 | 28 | 3-8 | 500 | 3-7.5 |
| 200 | 31.5 | 6-15 | 500 | 3-7.5 |
| 250 | 30.16 | 10-25 | 500 | 4-11 |
| 300 | 30.16 | 25-35 | 500 | 5.5-15 |
| 350 | 31 | 19-40 | 600 | 7.5-18.5 |
| 400 | 32 | 35-50 | 600 | 7.5-22 |
| 450 | 32.7 | 42-60 | 600 | 7.5-22 |
If you want to learn more about bucket elevator, please contact me!
