Help CenterInjection Blow Molding Machine (BJ200V2)
Related Products
-
Injection Blow Molding Machine Price (BJ160V2)US$ 15,300 - 382,000MOQ: 1 Piece -
500T Energy-saving Injection Moulding Machine For Paint PailNegotiableMOQ: 1 Set
-
Energy-saving V-series Injection Molding MachineNegotiableMOQ: 1 Set
-
Energy-saving V-series Injection Molding MachineNegotiableMOQ: 1 Set
-
Energy-saving V-series Injection Molding MachineNegotiableMOQ: 1 Set
Specifications
Injection and blowing processing in the same machineImported components
Mechanical, electric & hydraulic safety protection
1. Clamping Unit

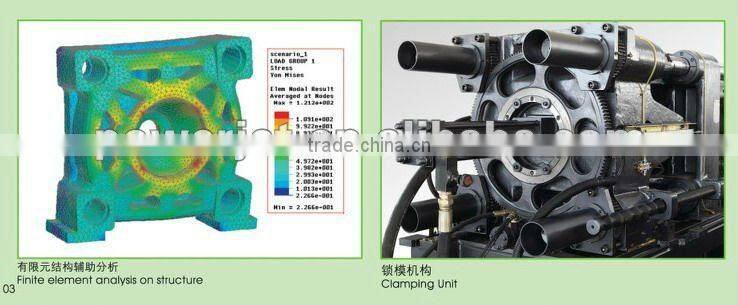

• Finite element analysis on structure, the mould board is more logical, stronger and higher fatigue resistance.
• Low pressure protection function greatly prolongs the service life of the mould.
• High precision electron meter is used to control position, the control precision is 0.1 mm.
• Mechanical, electric and hydraulic (optional) safety protection are equipped

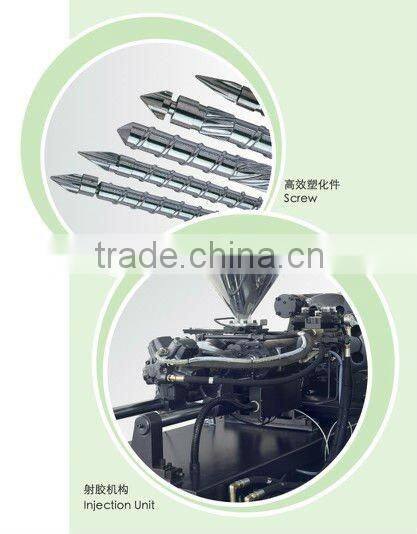

2. Injection Unit
• Superior and efficient separating screw and high mixing screw increase the range of material used, and guarantee molten material to be uniform and stable.
• Machine above BJ400 adopts double injection shift devices to prevent injection nozzle displacement and avoid material leakage.
3. Hydraulic System

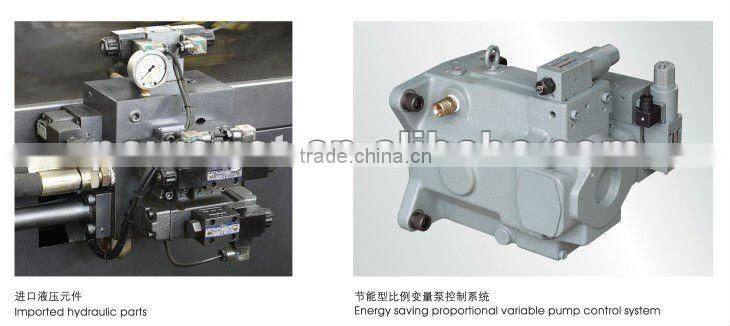

• High efficient proportional variable pump saves electricity by 25% - 50%.
• With full flow filtration oil circuit of high precision return oil filter, the oil filter effect is up to NAS - 7 levels.
• Spiral flow cooler is high in heat transfer efficiency and less pressure loss.

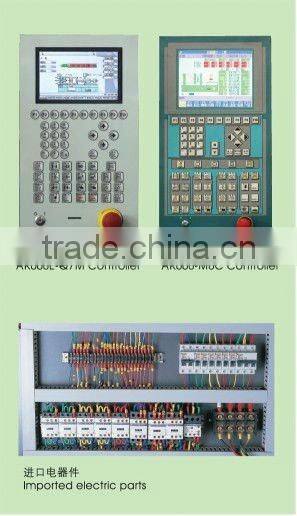

4. Controller
• It can store injection material information for 120 setsof moulds
• Fuzzy temperature control is use. High and low temperature deviation alarm and thermocouple disconnection inspection functions are available.
• Function to prevent cold material start-up.
• Times of forming can be matched with automatic stop function for convenient production management.
• Computer controlled automatic lubrication devices.
• Automatic mould adjustion function.
5. Lubrication System
• Major friction parts are equipped with lubrication points. Central oil supply system is used for hinges.

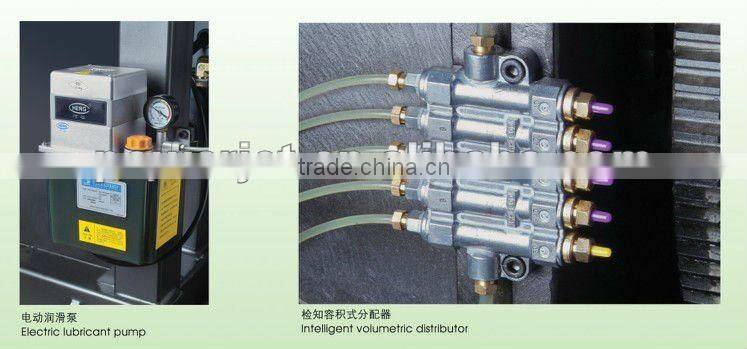

• Intelligent volumetric centralized lubricating system is equiped.

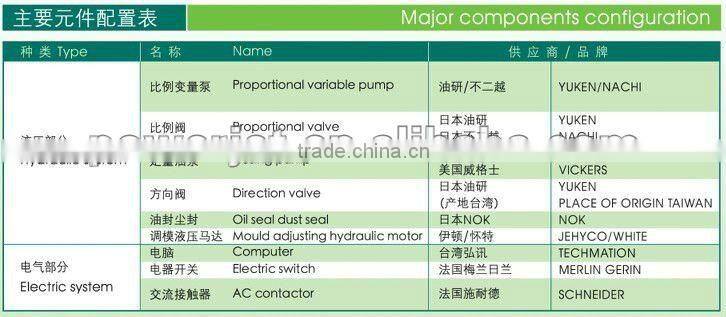

6. Major components
7. Parameter
| Description | Unit | BJ200V2 |
| Clamping Unit | ||
| Clamping Force | KN | 2000 |
| Opening Stroke | mm | 490 |
| Max daylight: | mm | 1040 |
| Platen size | mm | 775x755 |
| Space between Bars(H*V) |
mm*mm | 510x510 |
| Max. Mold Height | mm | 550 |
| Min. Mold Height | mm | 230 |
| Ejector Stoke | mm | 140 |
| Ejector Force | KN | 65 |
| Injection Unit | ||
| Screw Diameter | mm | 46 52 60 |
| Screw L/D Ratio | 21.7 19.2 16.7 | |
| Injection Pressure | Mpa | 230 180 135 |
| Shot Volume | cm3 | 407 520 693 |
| Shot Weight(PS) | g | 362 464 618 |
| Shot weight(PS) | QZ | 12.8 16.4 21.8 |
| Injection Rate | g/sec | 116 148 197 |
| Plasticizing capacity | g/sec | 28 38 55 |
| Screw Stroke | mm | 245 |
| Screw Speed | rpm | 173 |
| Power Unit | ||
| Hydraulic System Pressure | Mpa | 17.5 |
| Pump Motor Power | KW | 18.5 |
| Heater Power | KW | 11.5 |
| General | ||
| Dry-cycle time | sec | 1.8 |
| Oil Tank Capacity | L | 340 |
| Machine Weight | Ton | 5.8 |
| Machine Dimensions(L*W*H) | m*m*m | 5.75*1.40*2.10 |
