Home > Manufacturing & Processing Machinery > Plastic Machinery > Injection Molding Machine > Energy-saving Bakelite Fitting Injection Molding Machine BJ90V2-T

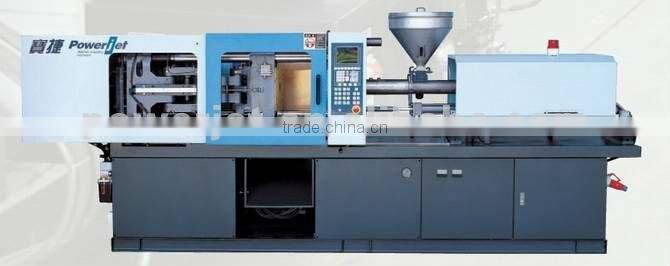

Energy-saving Bakelite Fitting Injection Molding Machine BJ90V2-T
Negotiable
MOQ: 1 Set (Price negotiable depending on order volume and customization)
Key Specifications
Get Latest Price
Condition:
New
Type:
Tube Head Injection
Style:
Horizontal
Payment & Shipping
Payment Methods:
Port of Shipment:
Gaungzhou/Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Energy-saving Bakelite Fitting Injection Molding Machine BJ120V2-TNegotiableMOQ: 1 Set -
Container Injection Molding Machine (KV138)US$ 15,200 - 382,000MOQ: 1 Piece
-
Plastic Box Injection Molding Machine (KV168)US$ 15,200 - 382,000MOQ: 1 Piece
-
Energy-saving Bakelite Fitting Injection Molding Machine BJ160V2-TNegotiableMOQ: 1 Set
-
Bakelite Fitting Injection Molding Machine BJ200V2-TNegotiableMOQ: 1 Set
Condition
New
Type
Tube Head Injection
Style
Horizontal
Brand Name
Powerjet
Model Number
BJ90V2-T
Place of Origin
Guangdong, China
Plastic Type
Thermoplastic
Automatic
Yes
Injection Weight
136-195g
Injection Rate
71-102g/s
Clamping Force
900KN
Opening Stroke
320mm
Certification
CE/ISO9001
Specifications
1.CE approved2.MOQ 1 set
3.Energy-saving
4.Special for bakelite products
Features
- Fast response proportional variable pump matches the hydraulic output and the need of running of the machine, without lost of high pressure over flow, which can save 25-50% power comparing with fixed pump machine.
- Special design screw & barrel for Bakelite, with is made by high strength bi-metallic steel with special treatment, with the characteristic of good corrosion resistance & good abrasion resistance.
- Oil cooling device in the screw & barrel insures the precision of the temp. control.
- Mould open and exhaust.
- Change of screw & barrel can be used as standard injection mold machine.
- Upgraded size of the injection motor with increase of injection pressure achieves better plasticization.
- Special design heat resolution plate is adopted in the mould platens.
- 2 sets of interface port for the mould temp. control is provided with computer control.
- High precision 0.1mm can be achieved with the electric sensor control.
- Automatic mould adjustment is control by computer by entering the clamping force directly.
| PARAMETER OF BJ90V2-T | ||
| DESCRIPTION | UNIT | BJ90V2-T |
| CLAMPING UNIT | ||
| Clamping force | KN | 900 |
| Opening stroke | mm | 320 |
| Max.daylight | mm | 720 |
| Platen size | mm×mm | 540×540 |
| Space between Bars(H*V) | mm×mm | 360×360 |
| Max. Mold Height | mm | 330 |
| Min. Mold Height | mm | 100 |
| Ejector Stoke | mm | 100 |
| Ejector Force | KN | 34 |
| INJECTION UNIT | ||
| Screw Diameter | mm | 30 36 |
| Screw L/D Ratio | 16 15 | |
| Injection Pressure | Mpa | 256 185 |
| Shot Volume | cm³ | 113 163 |
| Shot Weight(PS) | g | 136 195 |
| Injection rate | g/s | 71 102 |
| Screw Stroke | mm | 160 |
| Screw Speed | RPM | 184 |
| POWER UNIT | ||
| Hydraulic system pressure | MPa | 17.5 |
| Pump motor power | KW | 11 |
| Heater power | KW | 6 |
| GENERAL | ||
| Oil tank capacity | L | 180 |
| Machine weight | Ton | 2.8 |
| Machine dimensions(l×w×h) | m×m×m | 3.8×1.1×1.7 |
