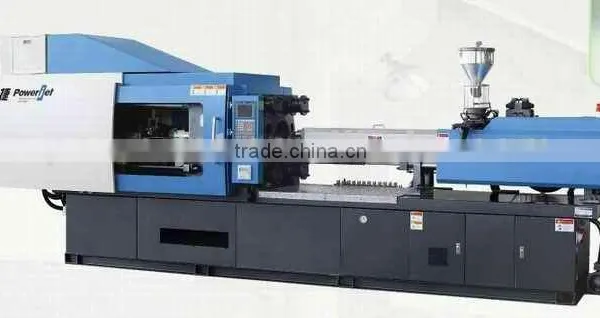

Help CenterPVC UPVC Pipe Fitting Injection Molding Machine (BJ288V2)
Related Products
-
Nylon Ribbon Energy Saving Injection Molding Machine FV-228NegotiableMOQ: 1 Set -
Nylon Ribbon Injection Molding Machine FV-288NegotiableMOQ: 1 Set
-
Nylon Ribbon Energy Saving Injection Molding Machine FV-388NegotiableMOQ: 1 Set
-
PPR Fitting Injection Molding Machine (BJ90V2)US$ 15,300 - 382,000MOQ: 1 Piece
-
Two (double) Platen Injection Molding Machine (DP2200V2)US$ 15,300 - 382,000MOQ: 1 Set
Specifications
Energy saving Variable Pump or Servo MotorImported major components
Mechanical, electric & hydraulic safety protection
1. Clamping Unit

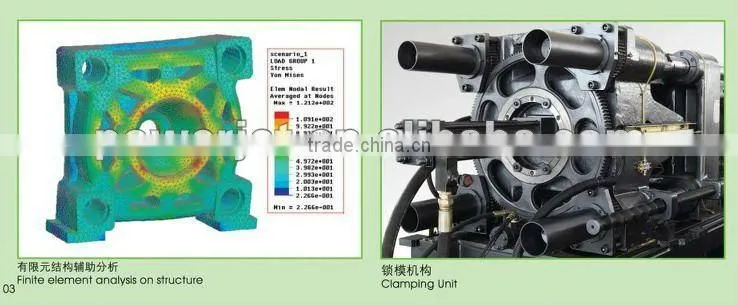

• Finite element analysis on structure, the mould board is more logical, stronger and higher fatigue resistance.
• Low pressure protection function greatly prolongs the service life of the mould.
• High precision electron meter is used to control position, the control precision is 0.1 mm.
• Mechanical, electric and hydraulic (optional) safety protection are equipped

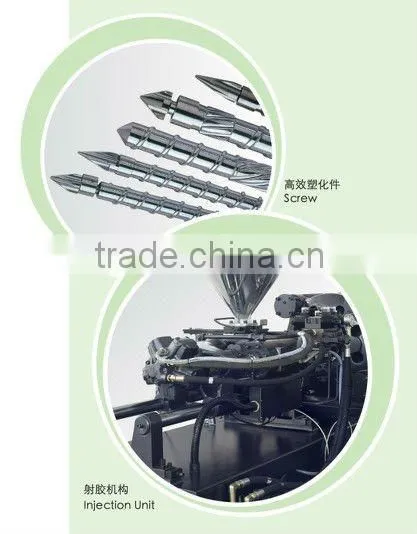

2. Injection Unit
• Superior and efficient separating screw and high mixing screw increase the range of material used, and guarantee molten material to be uniform and stable.
• Machine above BJ400 adopts double injection shift devices to prevent injection nozzle displacement and avoid material leakage.

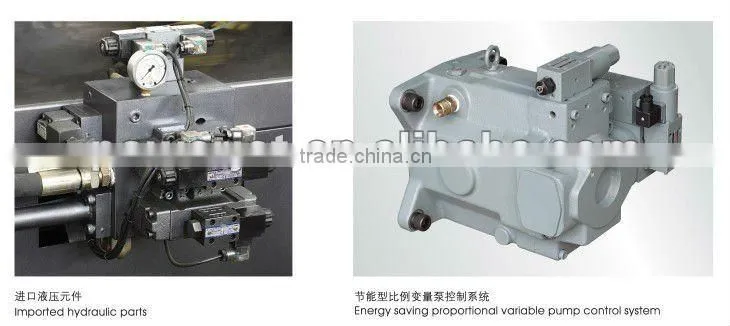

3. Hydraulic System
• High efficient proportional variable pump saves electricity by 25% - 50%.
• With full flow filtration oil circuit of high precision return oil filter, the oil filter effect is up to NAS - 7 levels.
• Spiral flow cooler is high in heat transfer efficiency and less pressure loss.

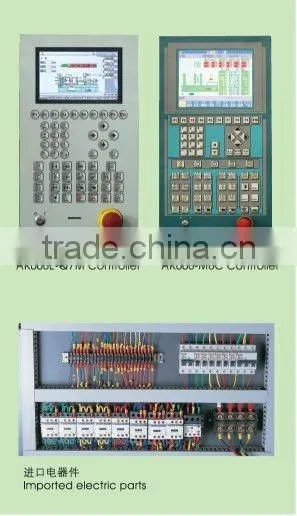

4. Controller
• It can store injection material information for 120 setsof moulds
• Fuzzy temperature control is use. High and low temperature deviation alarm and thermocouple disconnection inspection functions are available.
• Function to prevent cold material start-up.
• Times of forming can be matched with automatic stop function for convenient production management.
• Computer controlled automatic lubrication devices.
• Automatic mould adjustion function.

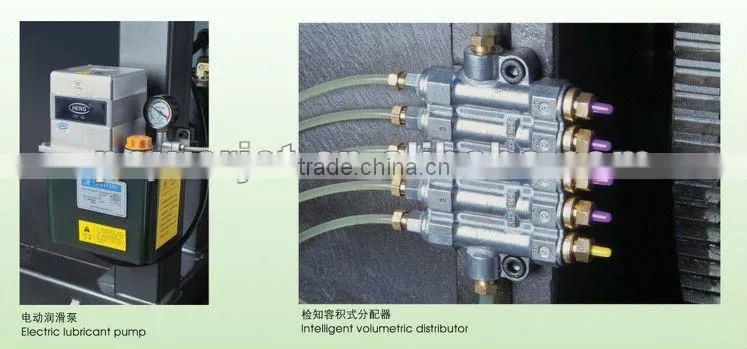

5. Lubrication System
• Major friction parts are equipped with lubrication points. Central oil supply system is used for hinges.
• Intelligent volumetric centralized lubricating system is equiped.

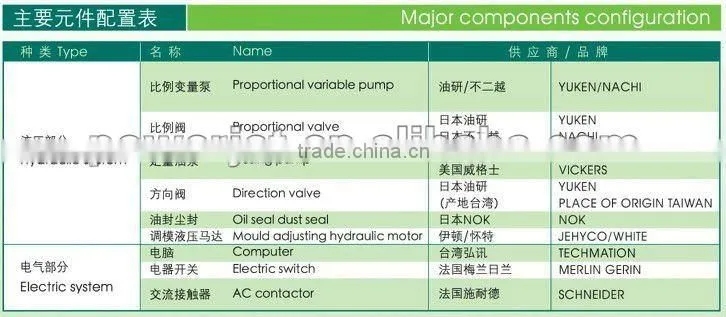

6. Major components
7. Parameter
| Description | Unit | BJ288V2 |
| Clamping Unit | ||
| Clamping Force | KN | 2880 |
| Opening Stroke | mm | 550 |
| Max daylight: | mm | 1160 |
| Platen size | mm | 850X850 |
| Space between Bars(H*V) |
mm*mm | 610X610 |
| Max. Mold Height | mm | 610 |
| Min. Mold Height | mm | 280 |
| Ejector Stroke | mm | 145 |
| Ejector Force | KN | 77 |
| Injection Unit | ||
| Screw Diameter | mm | 52 60 68 |
| Screw L/D Ratio | 24 21 18.5 | |
| Injection Pressure | Mpa | 226 169 132 |
| Shot Volume | cm3 | 594 791 1017 |
| Shot Weight(PS) | g | 558 744 956 |
| Shot weight(PS) | QZ | 20 26.2 33.7 |
| Injection Rate | g/sec | 179 238 267 |
| Plasticizing capacity | g/sec | 39 50 64 |
| Screw Stroke | mm | 280 |
| Screw Speed | rpm | 165 |
| Power Unit | ||
| Hydraulic System Pressure |
Mpa | 17.5 |
| Pump Motor Power | KW | 22 |
| Heater Power | KW | 14.2 |
| General | ||
| Dry-cycle time | sec | 3 |
| Oil Tank Capacity | L | 420 |
| Machine Weight | Ton | 8.5 |
| Machine Dimensions (L*W*H) |
m*m*m | 6.16X1.5X2.2 |
